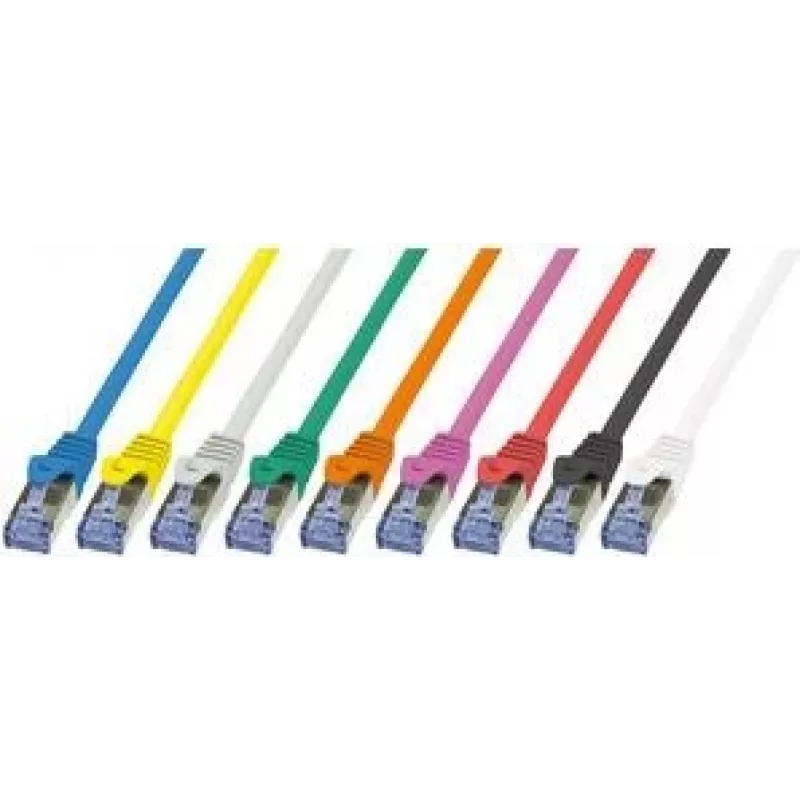

Networking Cable LogiLink Cat6a S/FTP RJ-45 5m Blue

The LogiLink Cat6a S/FTP RJ-45 5m Blue networking cable provides a 5-meter connection for high-speed data transmission in home and office environments. Constructed with S/FTP (Shielded/ Foiled Twisted Pair) and PIMF shielding, the cable uses bare copper conductors and RJ45 connectors to ensure reliable signal transfer. Its LSZH (low smoke zero halogen) jacket reduces harmful emissions in case of fire, and the product conforms to ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

S/FTP shielding and PIMF structure reduce electromagnetic interference and crosstalk, improving transmission stability for Gigabit and higher-speed networks. Bare copper conductors and copper-plated RJ45 contacts provide good conductivity and signal integrity. The LSZH jacket offers lower smoke and no halogen release, increasing safety in enclosed spaces. The 5 m length and blue colour support easy routing and identification in installations.

Suitable for

• Wired Ethernet connections for desktops and laptops
• Office network patching and switch-to-switch links
• High-speed data transfer for NAS, servers and gaming consoles
• Structured cabling in homes and small business environments

Key specifications

• Cable type: Cat6a S/FTP (Shielded/ Foiled Twisted Pair), PIMF
• Length: 5 m
• Connectors: RJ-45 to RJ-45
• Conductor: Bare copper
• Conductor size: AWG 26/7
• Jacket: LSZH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Weight: 180 g
• Colour: Blue

How to use

Connect one RJ45 connector to your network device (router, switch, computer or NAS) and the other to the corresponding port on the remote device. Ensure connectors are fully inserted until they click to secure the connection. Route the cable to avoid sharp bends and excessive tension; maintain a bend radius consistent with the cable diameter and avoid running parallel to high-power electrical cables to minimise interference.

Recommendations

For best performance, use this Cat6a S/FTP cable in installations requiring 10/100/1000 Mbps and multi-gigabit speeds, and pair it with shielded network equipment when possible. Inspect connectors before installation and replace the cable if the jacket or shielding is damaged to preserve signal integrity and safety.
