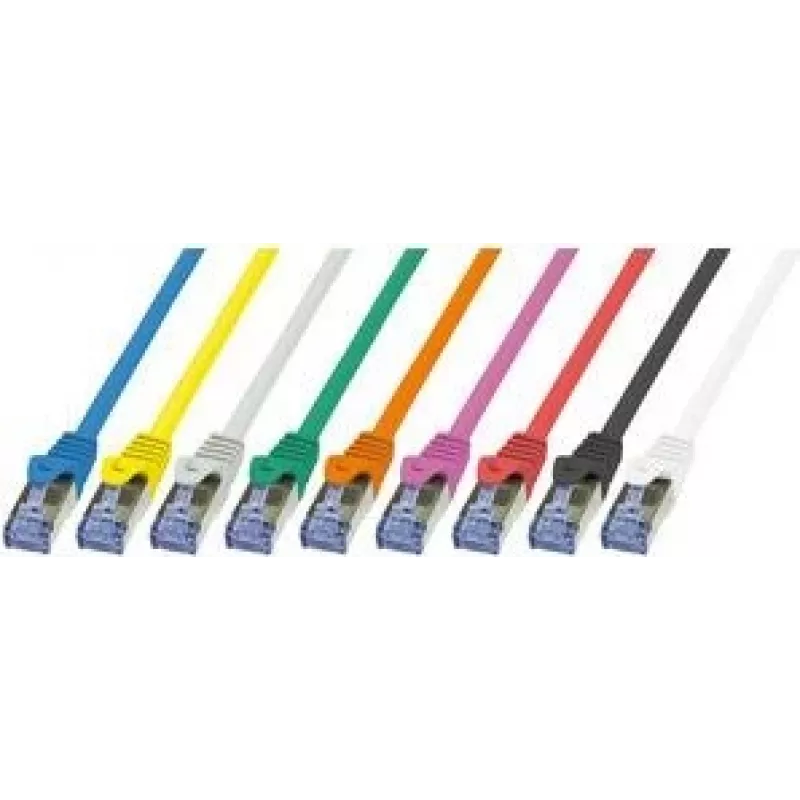

Networking Cable LogiLink 7.5m RJ-45 Cat6a Green

LogiLink Cat.6A S/FTP patch cable, 7.5 m, designed for 10G Ethernet environments. The cable uses AWG 26/7 bare copper conductors with PIMF (pair in metal foil) shielding and an overall S/FTP construction to minimise electromagnetic interference. The green LSZH (low smoke zero halogen) jacket provides a safer option for indoor installations while meeting industry standards ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2.

Advantages

The cable supports high-speed 10G data transfer over Cat6A specification and maintains signal integrity through S/FTP shielding. RJ45 connectors on both ends ensure compatibility with standard network equipment. The LSZH outer jacket reduces toxic smoke in case of fire, and the PIMF shield with bare copper conductors improves performance in environments with potential interference. At 7.5 m length it offers flexibility for typical office or data-room setups.

Suitable for

• 10 Gigabit Ethernet connections
• Server rooms and network closets
• Office desktop and workstation cabling
• Shielded installations where EMI reduction is required

Key specifications

• Cable category: Cat6A
• Data rate: up to 10 Gbps
• Length: 7.5 m
• Conductor: AWG 26/7 bare copper
• Shielding: S/FTP (PIMF pairs + overall shield)
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Colour: Green

How to use

Connect one RJ45 end to your network device (switch, router or network card) and the other end to the corresponding port of the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable avoiding sharp bends and sources of strong electromagnetic interference; maintain recommended bend radius for Cat6A cables. For permanent installations, secure the cable with appropriate clips and avoid excessive pulling force when terminating.

Recommendations

For optimal performance, use this Cat6A S/FTP cable in shielded or mixed environments and keep cable runs within the rated length. Do not mix shielded and unshielded connectors without proper grounding of the shielding.
