Networking Cable Lindy Cat.6 SSTP/S/FTP PIMF 40m Black

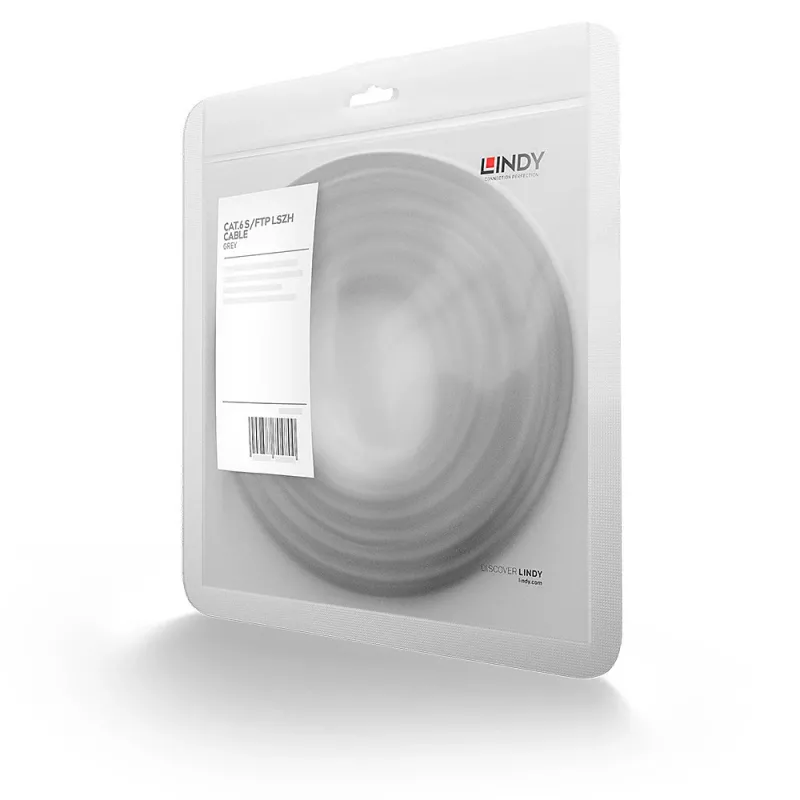

Cat.6 S/FTP (SSTP/PIMF) networking cable designed for operation up to 250 MHz and Gigabit Ethernet (1GBase-T). The 40 m Lindy patch cable is shielded with an overall braid and foil around each twisted pair to reduce electromagnetic interference. The jacket is halogen-free (LSZH) and the connectors have gold-plated contacts for corrosion-resistant signal transfer. The cable is manufactured and tested to ISO/IEC 11801 and is packaged individually in a polybag.

Advantages

The shielded S/FTP construction (braid overall + foil per pair) improves immunity to crosstalk and external interference, making the cable suitable for demanding network environments. Gold-plated contacts provide durable, low-resistance connections and resist corrosion. The snagless strain-relief design protects the connector latch during installation and removal. The LSZH outer sheath reduces toxic halogen emissions and limits smoke in case of fire, making the cable appropriate for use in public or enclosed spaces.

Suitable for

• Gigabit Ethernet (1GBase-T) networks
• High-bandwidth data transmission up to 250 MHz
• Office and home networking runs up to 40 m
• Audio/video extension and AV-over-IP applications

Key specifications

• Standard: Cat.6 (ISO/IEC 11801)
• Shielding: S/FTP (braid overall + foil per pair, PIMF)
• Bandwidth: up to 250 MHz
• Data rate: up to 1 Gbps (1GBase-T)
• Length: 40 m
• Connector contacts: gold-plated
• Sheath: LSZH (halogen-free)
• Colour: Black

How to use

Route the 40 m cable between network devices avoiding tight bends and sources of strong electromagnetic interference. Insert RJ45 connectors into compatible ports until the latch clicks. Use the snagless strain-relief feature to prevent damage to the connector clip when pulling the cable through conduits or patch panels. For optimal performance, keep cable runs within recommended distances and avoid bundling with unshielded power cables.

Recommendations

For best results in structured cabling, terminate and test the cable according to ISO/IEC 11801 patching practices and verify link performance with a certified cable tester. In environments with higher interference, ensure correct grounding of shielded systems and avoid improper mixing of screened and unscreened components.
