Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP

Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
Networking Cable Digitus DK-1632-A-015S-G Green 1.5m Cat6a F/FTP
R148

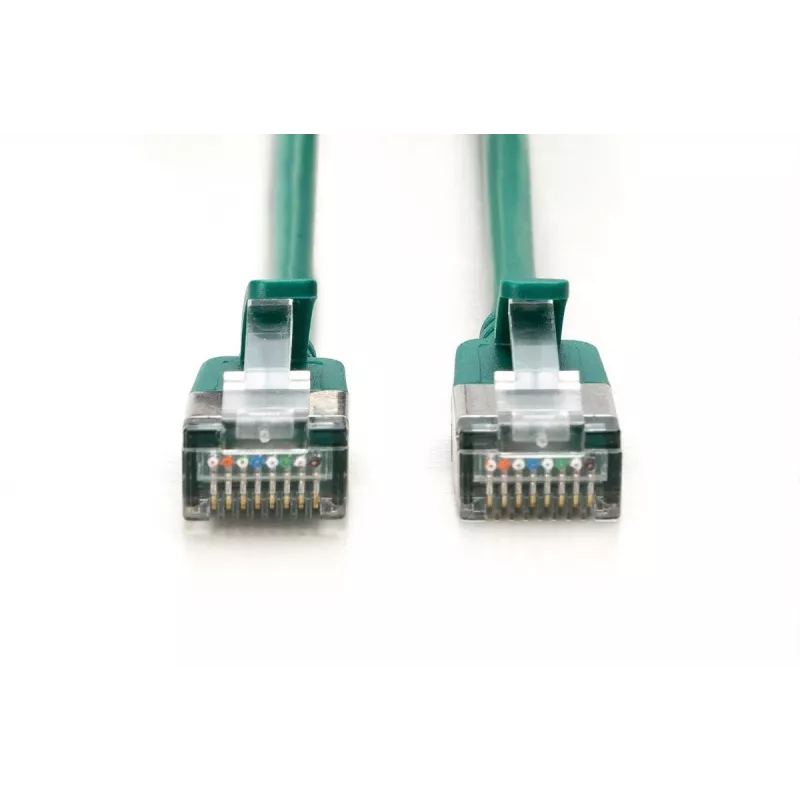

The DIGITUS Networking Cable DK-1632-A-015S-G is a 1.5 m Cat6a F/FTP patch cable with slim, flexible jacket and RJ-45 connectors. Designed and manufactured to ISO/IEC 11801 and DIN EN 50173 Cat6A standards, it supports transmission speeds up to 10 Gbit/s and a frequency range up to 500 MHz. The cabl... Read More
Stock 5 Code 114214 Brand DIGITUS Model DK-1632-A-015S-G Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The DIGITUS Networking Cable DK-1632-A-015S-G is a 1.5 m Cat6a F/FTP patch cable with slim, flexible jacket and RJ-45 connectors. Designed and manufactured to ISO/IEC 11801 and DIN EN 50173 Cat6A standards, it supports transmission speeds up to 10 Gbit/s and a frequency range up to 500 MHz. The cable is PoE+ ready and includes a molded anti-kink sleeve with strain relief and locking lever protection to prevent plug damage.

Advantages

The slim and flexible design enables easy installation in confined or high-density spaces while maintaining Cat6a performance. F/FTP shielding improves signal integrity for demanding environments such as data centers or office networks. Molded anti-kink sleeves with strain relief and locking lever protection reduce the risk of connector damage and improve long-term reliability.

Suitable for

  • Data centers and server rooms
  • High-density network racks and patch panels
  • Home offices and professional workstations
  • PoE+ powered devices (IP phones, cameras, access points)

Key specifications

  • Standard: Cat6a (ISO/IEC 11801, DIN EN 50173)
  • Length: 1.5 m
  • Shielding: F/FTP
  • Connectors: RJ-45 to RJ-45 (bronze/gold plated contact)
  • Transmission speed: up to 10 Gbit/s
  • Frequency: up to 500 MHz
  • Product colour: Green

How to use

Route the slim patch cable between network devices, modules or patch panels, avoiding sharp bends and excessive tension. Insert the RJ-45 plugs fully into compatible ports until the locking lever engages. Use the molded sleeve to protect the connector area and ensure strain relief. For structured cabling, verify channel components and testing procedures meet ISO/EN channel specifications after installation.

Recommendations

For optimal performance, keep cable bend radius within manufacturer guidelines, maintain separation from strong electromagnetic sources where possible, and perform a channel certification test after installation to confirm 10 Gbit/s operation and NEXT performance up to 500 MHz.
Key Highlights
  • Outer casing: LSZH (Low Smoke Zero Halogen)
  • Total diameter: 3.8 mm ± 0.15 mm
  • Conductor stranded: AWG 32/7 bare copper, 0.12 ± 0.005 mm
  • Insulation: HD-PE (high-density polyethylene)
  • Bending radius: 15x OD
  • Plug: RJ45 plug
  • Color code: Orange x white, green x white, blue x white, brown x white
  • Wiring standard: EIA/TIA 568B
  • PIN assignment: 1:1
  • Contact resistance: 376.96Ω/km maximum at 20 °C
  • Imbalance of the resistance: maximum 3%
  • Operating temperature: -20 °C up to +60 °
  • Flame retardancy: IEC 60332-1
  • Smoke emission: IEC 61034
  • Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
  • Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
  • Dielectric strength: AC 500V for 1 minute without breakdown (TIA/EIA-364-21)
  • Service life: 750 mating cycles
  • Packaging: DIGITUS Polybag
Specifications
AWG wire size
32/7
Cable length
1.5 m
Cable shape
Round
Cable shielding
F/FTP (FFTP)
Cable standard
Cat6a
Conductor material
Copper
Conductor type
Flexible
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Bronze/Gold
Data transfer rate
10000 Mbit/s
Frequency
500 MHz
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
-20 - 60 °C
Outer diameter
3.8 mm
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Product colour
Green
Quantity per pack
1 pc(s)
