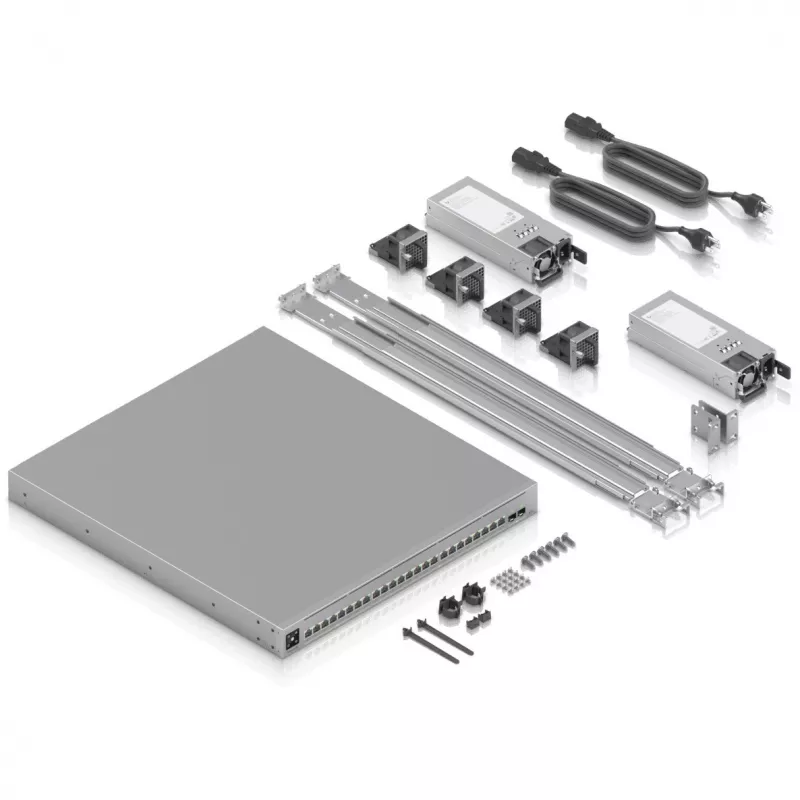

Network switch Ubiquiti UniFi ECS-24-POE — Managed L2/L3, 24× 10G RJ-45, PoE, 1U, grey

Ubiquiti UniFi ECS-24-POE is a managed L2/L3 rack-mount switch in a 1U metal chassis designed for enterprise access and aggregation layers. The unit provides 24 RJ-45 10G Ethernet ports (100/1000/10000) with IEEE 802.3bt Power over Ethernet support, a 128k MAC address table and a total switching capacity of 460 Gbit/s. Its 10 GbE capacity and PoE++ delivery make it suitable for high-throughput uplinks, dense port deployments and powering PoE devices directly from the switch.

Advantages

The ECS-24-POE combines managed L2/L3 features with high port density and 10G RJ-45 connectivity, enabling flexible traffic segmentation and routing in an enterprise environment. PoE support compliant with IEEE 802.3bt allows delivery of higher power levels to connected devices without separate power injectors. A 128k MAC address table and 460 Gbit/s switching capacity ensure the switch can handle large numbers of endpoints and sustained high-throughput traffic.

Suitable for

• Enterprise access layer or aggregation in campus and branch networks
• Powering PoE devices such as access points, VoIP phones and cameras
• Switching and uplinks for servers and storage requiring 10 GbE throughput
• Racked installations requiring a 1U managed switch with high port density

Key specifications

• Switch type: Managed L2/L3
• Ports: 24 × 10G RJ-45 (100/1000/10000 Mbps)
• PoE standard: IEEE 802.3bt (PoE++)
• MAC address table size: 128,000 entries
• Switching capacity: 460 Gbit/s
• Form factor: 1U rack-mountable metal chassis
• Networking standards: IEEE 802.1x
• Colour: Grey
• Weight: 9.46 kg

How to use

Install the ECS-24-POE into a standard 19-inch rack using the included mounting hardware and connect AC power. Connect upstream network links or aggregation ports to the 10G RJ-45 ports for high-bandwidth uplinks, and attach endpoints or PoE-powered devices to the remaining RJ-45 ports. Access the management interface via the UniFi Controller or the device’s management IP to configure VLANs, L2/L3 routing, PoE allocation and security policies. Monitor port utilization, PoE power draw and MAC tables through the controller for ongoing administration.

Recommendations

For stable operation in enterprise deployments, reserve adequate PoE budget when planning connected devices, use quality CAT6A or better cabling for 10G RJ-45 links, and place the switch in a well-ventilated rack location. Use VLANs and access control features to segment traffic, and keep firmware updated via the UniFi management platform to maintain performance and security.
