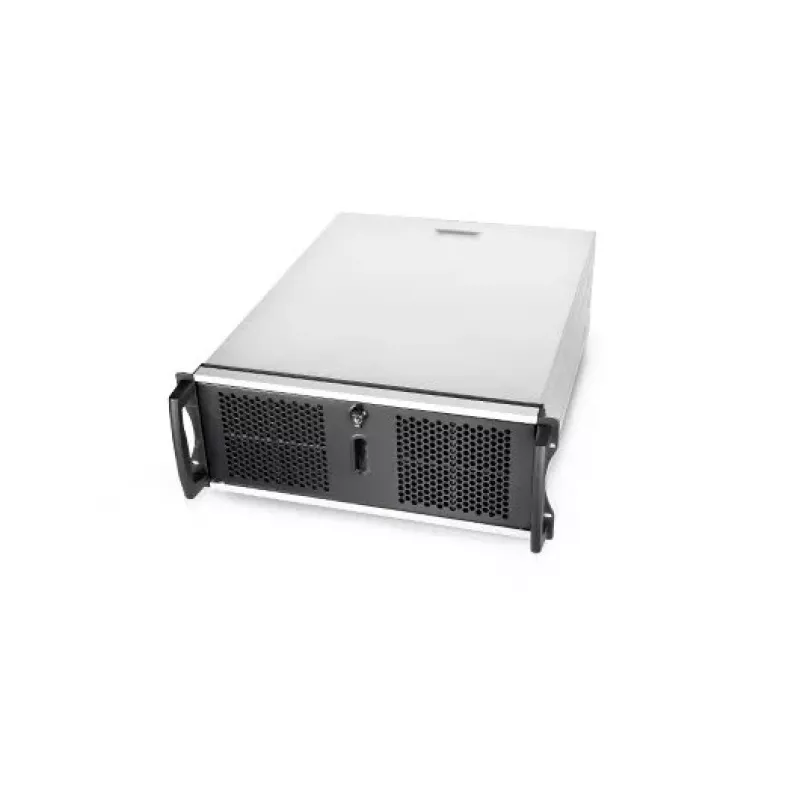

Chenbro RM41300-F2 4U Rackmount Server Chassis

The Chenbro RM41300-F2 is a 4U network equipment chassis designed for efficient cooling, easy access and flexible component configuration. Measuring 430 mm (W) x 546 mm (D) x 176 mm (H), the RM41300-F2 supports USB 3.0 connectivity and a sturdy black-and-grey construction suitable for high-performance IPC and networking installations. The chassis includes isolated anti-vibration drive cages, a dust-proof filter and provisions for multiple drive and card arrangements for improved system reliability.

Advantages

The chassis provides truly isolated anti-vibration drive cages and a dust-proof filter to protect internal storage. It offers optional drive cage expansion and a dedicated 80 mm fan for HDD cooling. Support for 4 full-size GPUs via an 8-slot rear window and a card retainer for both low-profile and full-height add-on cards increase compatibility and secure installation. The unit can be configured with a 1-door or 2-door front bezel and supports stand-alone installation with an optional kit.

Suitable for

• High-performance IPC and server builds
• GPU-accelerated compute nodes (up to 4 GPUs with RM41300-FS81 layout)
• Network equipment racks and edge computing
• Storage-focused installations requiring vibration isolation and cooling

Key specifications

• Form factor: 4U rackmount chassis
• Dimensions: 430 mm (W) x 546 mm (D) x 176 mm (H)
• Front connectivity: USB 3.0
• Drive features: truly isolated anti-vibration drive cages; optional second 3 x 5.25" drive cage
• Cooling: dedicated 80 mm HDD fan; dust-proof filter

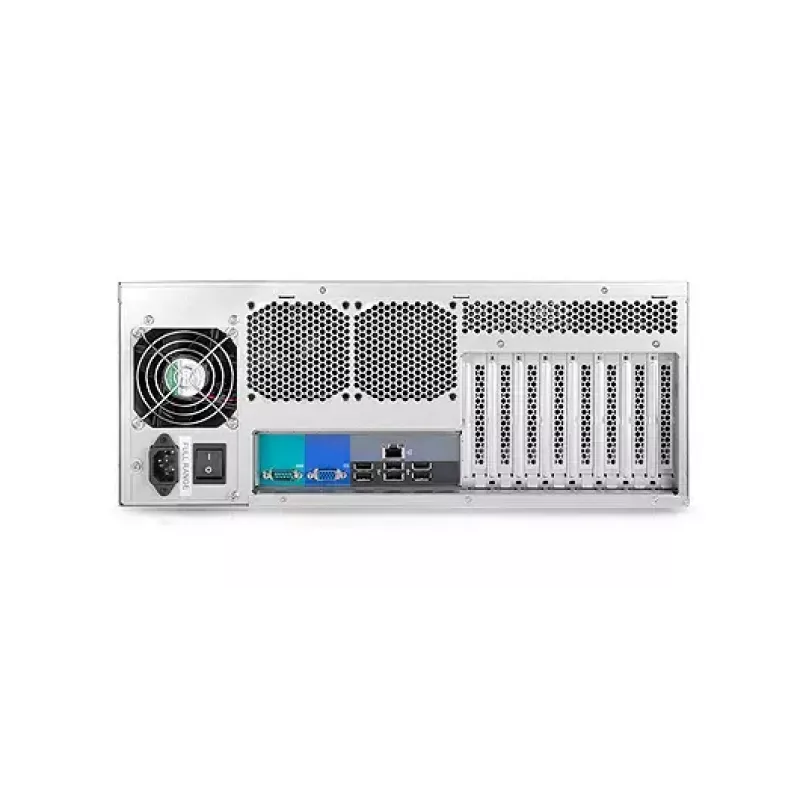

• Expansion: 8-slot rear window for 4 GPU cards (RM41300-FS81); card retainer for low-profile and full-height add-on cards

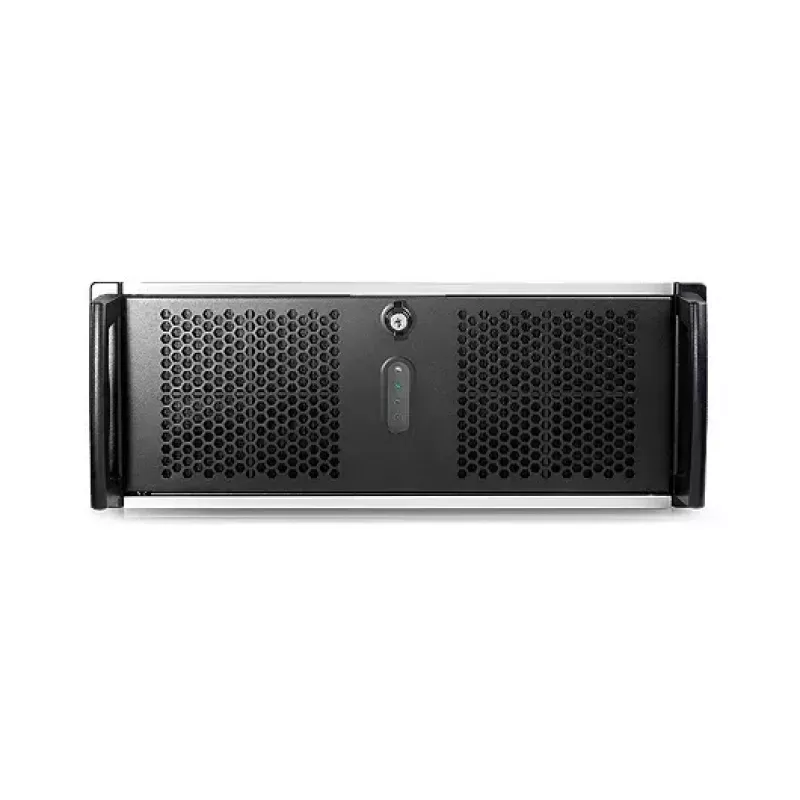

• Front bezel: configurable as 1-door or 2-door (RM41300)
• Stand-alone installation: supported via optional kit (RM41300)
• Color: black and grey
• Brand / MPN: Chenbro RM41300-F2-USB3

How to use

Install the chassis in a standard 19-inch rack or configure it for stand-alone use with the optional kit. Fit motherboards, power supplies and drive modules according to the chassis layout, placing drives into the isolated anti-vibration cages and securing add-on cards with the supplied card retainer. Connect front USB 3.0 and other I/O as required, and ensure the dust-proof filter is in place to reduce particulate ingress.

Recommendations

For optimal reliability, use the dedicated 80 mm fan for continuous HDD cooling, replace or clean the dust-proof filter regularly, and choose the RM41300-FS81 rear-window layout when installing multiple full-size GPUs. When operating outside a rack, install the optional stand-alone kit for stable placement.
