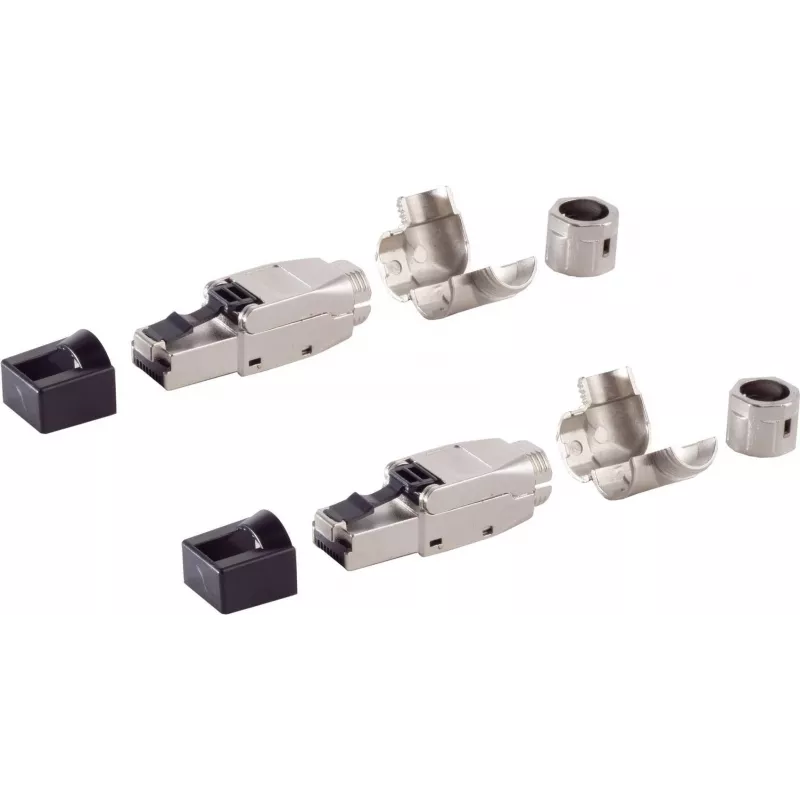

Network Connector ShiverPeaks BS08-51003-2 Cat. 6A Tool-less Right Angle STP

ShiverPeaks BS08-51003-2 Cat. 6A Tool-less Right Angle STP is a shielded RJ45 network connector designed for Cat6A shielded Ethernet cabling. It offers a tool-free termination process and a right-angle form factor that facilitates compact cable routing in confined spaces. The connector is intended for installations that require shielded contacts and reduced bend radius where standard straight connectors are impractical.

Advantages

This tool-less STP connector enables fast, reliable terminations without crimping tools, reducing installation time and the need for specialized equipment. The right-angle design minimizes strain on cable entries and helps maintain signal integrity in tight enclosures or patch panels with limited depth. Shielded construction supports grounded installations and decreases electromagnetic interference for higher-performance data transmission.

Suitable for

• Shielded Cat6A network cabling in server rooms and data centers
• Wall-mounted keystone panels and shallow patch panels
• Commercial and industrial environments requiring EMI protection
• Tight cable routing behind racks, switches, and network appliances

Key specifications

• Category: Cat 6A (supports up to 10 Gbps over specified distances)
• Connector type: RJ45 shielded (STP)
• Termination: Tool-less, quick-insertion design
• Orientation: Right-angle for space-constrained installations
• Shielding: Full metal/foil shielding to support grounding and EMI reduction
• Compatible conductor types: Solid and stranded shielded twisted pair cables designed for Cat6A

How to use

Prepare the shielded Cat6A cable by stripping the outer jacket and exposing the braided or foil shield according to the connector manufacturer's recommended length. Untwist pairs only as necessary to seat conductors into the connector. Insert wires following the connector's color-code and push fully until the termination mechanism engages; the tool-less design secures conductors and establishes the shield contact when the connector housing is closed or locked. After termination, verify mechanical retention and continuity of the shield and conductors with appropriate test equipment.

Recommendations

For best performance, ensure the cable shield is properly terminated and bonded to system ground. Use this connector with Cat6A shielded cabling rated for 10 Gbps applications and perform network certification or continuity tests after installation to confirm signal integrity and correct shielding. Avoid excessive cable bending at the right-angle interface to maintain performance.
