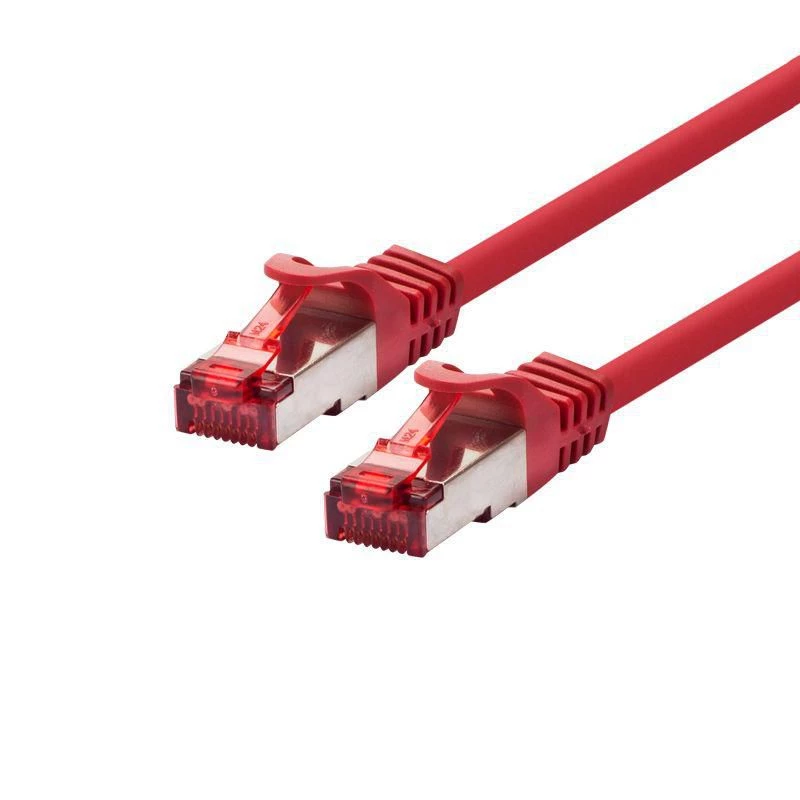

Network cable LOGON Cat6 SSTP/PIMF 10 m, RJ-45–RJ-45, red

LOGON Cat6 SSTP/PIMF 10 m, RJ-45–RJ-45, red is a shielded Ethernet patch cable designed to meet Cat6 performance requirements up to 250 MHz. The cable uses pairs with foil and full braid shielding (PIMF) and 4 x 2 AWG 26/7 twisted pairs with a 100 Ω impedance to provide stable, low-interference connections for gigabit networks. Both ends are terminated with shielded RJ-45 plugs and fitted with boots that include kink protection and strain relief for reliable physical performance in home, office, or data-cabinet installations.

Advantages

The SSTP/PIMF construction reduces electromagnetic interference and crosstalk, improving signal integrity in environments with nearby electrical equipment or dense cable routing. The 10 m length offers flexibility for typical patching and workstation connections without intermediate joins. Shielded RJ-45 connectors and strain-relief boots protect the termination points from mechanical stress and help maintain consistent contact quality over time.

Suitable for

• Gigabit Ethernet patching between switches, patch panels and network devices
• Office and home workstation connections
• Data cabinet and server rack cable routing where shielded links are required
• Environments with potential electromagnetic interference (near power equipment or bundled cabling)

Key specifications

• Category: Cat6
• Shielding: SSTP / PIMF (foil + full braid)
• Frequency rating: up to 250 MHz
• Conductor: 4 pairs, 26 AWG stranded (26/7)
• Characteristic impedance: 100 Ω
• Terminations: shielded RJ-45 male – shielded RJ-45 male
• Length: 10 m
• Color: red
• Channel/link certification: 3P Cat.6 Channel Link certified

How to use

Connect one shielded RJ-45 plug to the network port of a switch, patch panel, router or endpoint device and the other plug to the corresponding port on the remote device. Ensure that metal housings of the RJ-45 connectors make contact with shielded equipment or patch panels to maintain the cable’s overall shielding continuity. Avoid sharp bends and excessive pulling force; use the built-in boot with kink protection and strain relief to reduce stress at the connector. For rack installations, route the cable alongside other shielded cables and secure it with appropriate cable management accessories.

Recommendations

For best performance, use the LOGON Cat6 SSTP/PIMF cable in shielded or properly grounded network environments. Do not exceed the 10 m length for a single patch link when following specific channel or link budget requirements in structured cabling installations. Inspect connector shields and grounding points periodically in high-interference or high-traffic installations.
