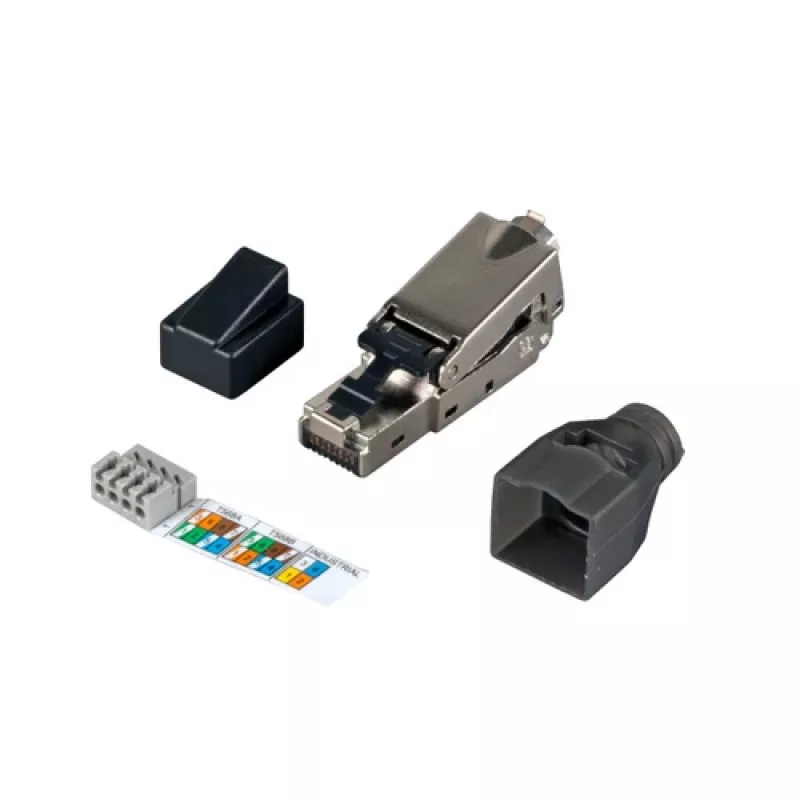

The INFRALAN FTPS600 is a fully shielded RJ-45 connector designed for reliable Ethernet connections in industrial and commercial installations. Its zinc diecast housing, separate dust cap and strain relief boot provide robust electromagnetic compatibility (EMC) and mechanical protection for Cat.6 cables with diameters from 6.0 mm to 9.0 mm. The connector supports tool-free assembly with IDC terminals and low contact resistance for consistent signal transmission.

Advantages

Fully shielded zinc diecast body offers enhanced EMC performance suitable for environments with high electromagnetic interference. IDC terminals and low contact resistance ensure high-quality contact for cables and conductors from AWG22 to AWG27. Compact cable manager and re-termination capability (up to 10 times for most constructions, up to 5 times for AWG27/7) simplify installation and maintenance. The product meets Class E performance according to ISO/IEC 11801 and IEC 60603-7-5.

Suitable for

• Industrial Ethernet and Profinet applications
• Cat.6 network cabling with cable diameters 6.0–9.0 mm
• Environments requiring enhanced EMC shielding
• Field termination and re-termination of RJ-45 connections

Key specifications

• Connector type: RJ-45, shielded
• Housing: zinc diecast with separate dust cap and strain relief boot
• Standards: Class E (ISO/IEC 11801, IEC 60603-7-5)
• Cable compatibility: Cat.6, cable diameter 6.0 mm–9.0 mm
• Wire gauge: AWG22–AWG27 (supports stranded and solid where applicable)
• Pair coding: TIA 568A/B and industrial Profinet 1-2-3-6
• Re-termination: up to 10 times (up to 5 times for AWG27/7)

How to use

Prepare the cable to the recommended length, strip the outer sheath to expose the twisted pairs, and arrange pairs according to the chosen TIA 568A/B or Profinet wiring scheme. Insert conductors into the IDC terminals and press to terminate without tools. Fit the strain relief boot and secure with the integrated cable tie or clamp. Replace the dust cap when the connector is not in service to protect the shielding and contacts.

Recommendations

For best results use Cat.6 cables within the specified diameter range and follow the TIA or Profinet pair coding. Ensure the shield contact is properly engaged with the diecast housing to maintain EMC performance. Avoid repeated re-terminations beyond the specified limits to preserve contact integrity.
