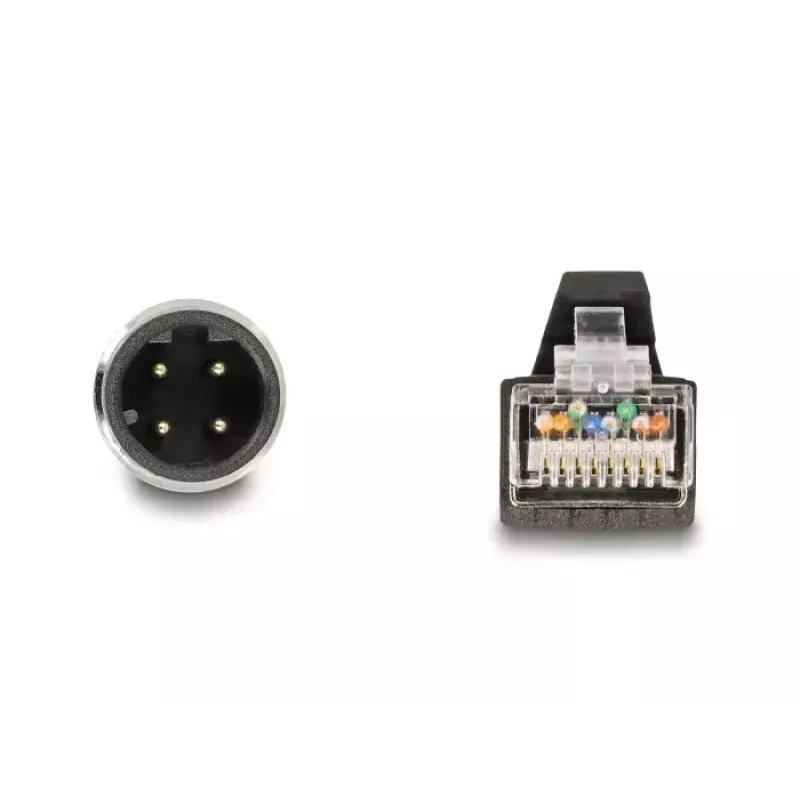

Network Cable DeLOCK M12 Cable D-coded 4 pin male to RJ45 male PUR (TPU) 1 m

This industrial Ethernet cable by DELOCK with D‑coded M12 4‑pin male to RJ45 male connectors provides a 1 m connection for machine control, automation and other industrial network applications. The cable uses a PUR (TPU) sheath and is UL 94 certified to meet safety and durability requirements in demanding environments.

Advantages

The cable supports up to 10 million bending cycles, making it suitable for continuous motion applications such as drag chains. The polyurethane (PUR/TPU) sheath is oil- and UV-resistant, offering mechanical robustness and resistance to environmental factors common in industrial and outdoor installations. D-coded M12 to RJ45 wiring ensures reliable data transmission for Ethernet signals.

Suitable for

• Machine control and industrial automation systems
• Fixed or movable Ethernet connections with M12 D-coded interfaces
• Use in drag chains and dynamic cable runs
• Outdoor and oil-exposed environments requiring UV and oil resistance

Key specifications

• Connector A: M12 D-coded, 4 pin, male
• Connector B: RJ45, male
• Cable length: 1 m
• Sheath material: PUR (TPU), oil- and UV-resistant
• Bending cycles: up to 10,000,000
• Certification: UL 94

How to use

Connect the M12 D‑coded male connector to the corresponding M12 D‑coded female port on the device and plug the RJ45 male connector into the Ethernet port or patch panel. Ensure connectors are fully seated and, if applicable, secured with locking threads. Route the cable to avoid sharp edges and excessive tensile stress; when used in drag chains, allow sufficient bend radius per the system requirements.

Recommendations

For reliable long-term operation, avoid repeated kinking and excessive pulling force. In drag chain installations, verify the permissible bend radius and ensure the cable is compatible with the chain type. Regularly inspect connectors and sheath for mechanical damage in harsh environments.
