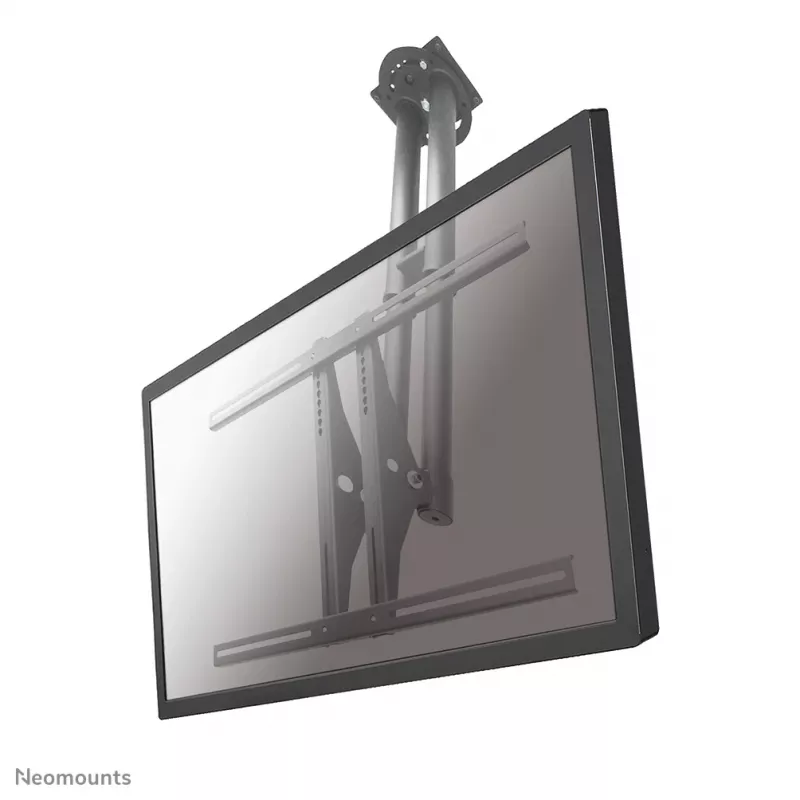

Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75 inch - h 67-107 cm

The Neomounts ceiling mount PLASMA-C100 is a tilt- and swivel mount designed for flat screens from 37" up to 75" (191 cm). It supports a maximum weight of 50 kg and fits VESA hole patterns from 200 x 200 mm to 800 x 450 mm. The mount offers height adjustment from 670 to 1070 mm and integrates cable management in the column for a tidy installation. All installation material is included.

Advantages

The PLASMA-C100 provides a combined tilt (up to 25°) and swivel (up to 60°) mechanism that enables flexible viewing angles and better use of the display’s capabilities. Height adjustment is simple and covers a wide range (670–1070 mm); extension poles are available if additional height is required. The built-in cable management conceals cables from ceiling to screen. The mount supports one display and accommodates various VESA patterns, with optional adapter plates for non-standard hole patterns.

Suitable for

• Rooms where wall mounting or floor stands are not possible
• Commercial spaces such as meeting rooms, lobbies, or retail displays
• Home installations requiring ceiling placement and adjustable viewing angles

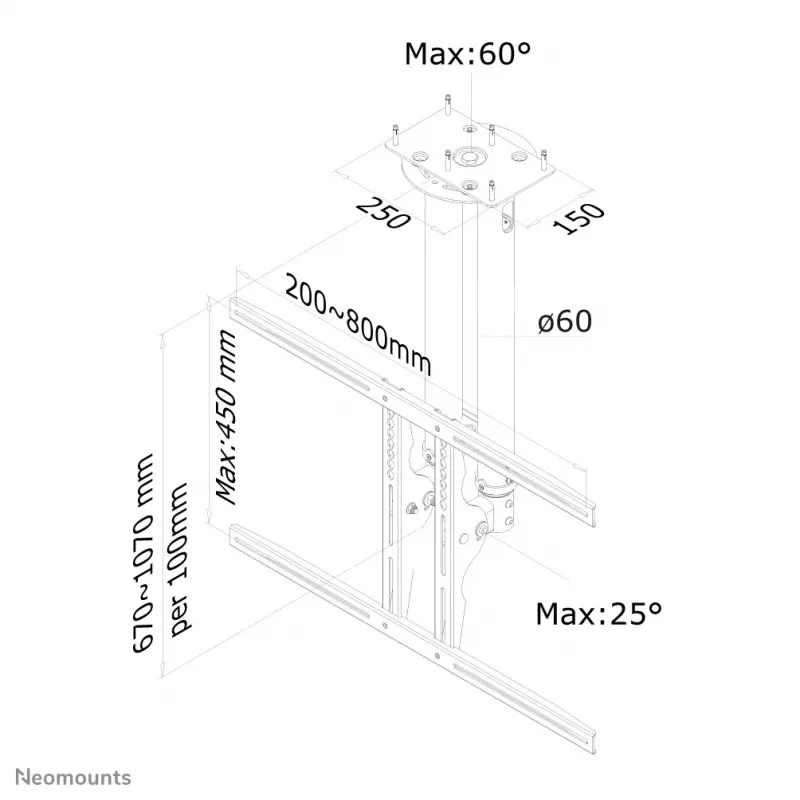

Key specifications

• Model: PLASMA-C100
• Supported screen size: 37"–75" (up to 191 cm)
• Maximum weight capacity: 50 kg
• Product weight: 16.57 kg
• Height adjustment: 670–1070 mm
• Tilt: 0–25°
• Swivel: 60°
• VESA compatibility: 200 x 200 mm up to 800 x 450 mm
• Colour: Silver

How to use

Mount the PLASMA-C100 to a suitable ceiling structure following the included installation material and instructions. Attach the VESA plate to the display, secure the display to the mount, then adjust height, tilt and swivel to the desired viewing position. If the screen’s VESA pattern differs, fit a Neomounts VESA adapter plate before installation. Route power and signal cables through the mount’s column to keep them concealed and tidy.

Recommendations

Ensure the ceiling fixing points are rated for the combined weight of the mount and screen (maximum 50 kg). Use extension poles only when additional height is required and verify VESA compatibility before fitting. For safety and optimal performance, follow the supplied instructions or use professional installation if in doubt.
