Neomounts LED-W650BLACK TV mount wall 37-75 inch - tiltable

The Neomounts LED-W650BLACK is a tiltable wall mount designed for flat screens up to 75". With a slim profile that places the screen just 3 cm from the wall and a tilt range up to 12°, this black mount provides flexible viewing angles while supporting a maximum load of 35 kg. It is compatible with VESA hole patterns from 100x100 up to 600x400 mm and includes all necessary installation hardware.

Advantages

The mount offers a minimal distance to the wall for a neat appearance and a 12° tilt mechanism to adjust the viewing angle. It supports a wide range of VESA patterns and screens up to 75", and its 35 kg weight capacity covers most consumer TVs in this size range. Installation material is included for straightforward mounting.

Suitable for

• Wall mounting flat-screen TVs from 37" to 75"
• Rooms where the screen is mounted higher on the wall (living room, bedroom, public spaces)
• Displays that use VESA patterns between 100x100 and 600x400 mm

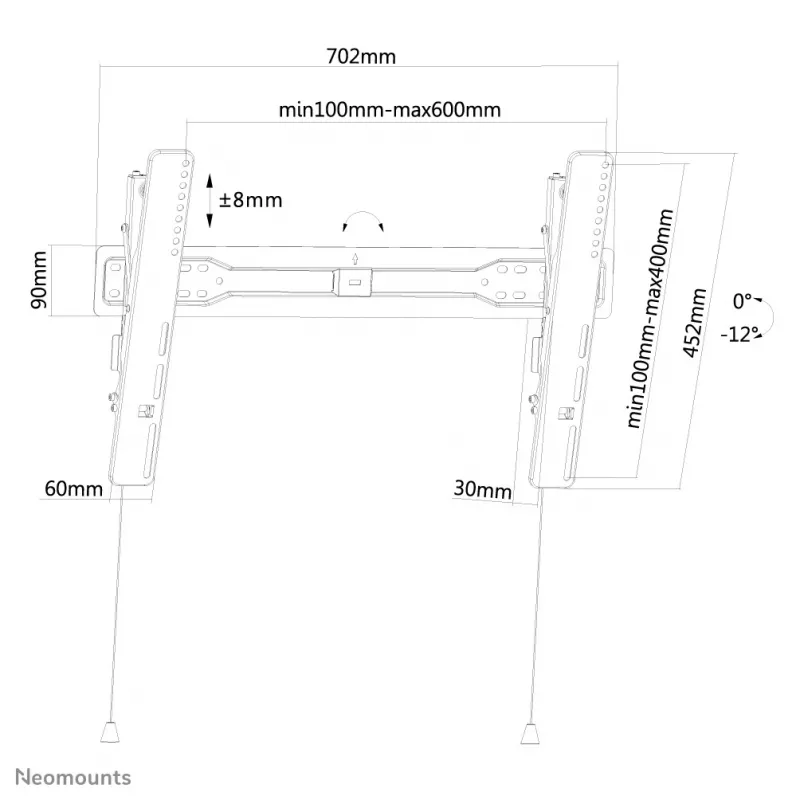

Key specifications

• Model: Neomounts LED-W650BLACK
• Maximum screen size: 75"
• Maximum weight capacity: 35 kg
• VESA compatibility: 100x100 — 600x400 mm
• Tilt range: 0 — 12°
• Distance to wall: 3 cm
• Product colour: Black
• Number of displays supported: 1
• Product weight: 3.08 kg

How to use

Choose a suitable mounting location on a solid wall and verify that the VESA pattern on your TV matches the mount (100x100 to 600x400 mm). Use the supplied installation material to attach the bracket to the wall and the mounting plate to the TV according to the included instructions. After securing both parts, hang the display on the wall bracket and set the tilt angle up to 12° for the desired viewing position.

Recommendations

Ensure the mounting surface and fixings used are appropriate for the wall type and can safely support the combined weight of the mount and TV (max 35 kg). If in doubt, consult a professional installer.
