Neomounts FPMA-W815 Monitor/TV mount wall 10-40 inch - full motion

The Neomounts FPMA-W815 wall mount is designed for TVs and monitors from 10" up to 40" (102 cm) and supports a maximum load of 20 kg. It provides a compact profile with a minimum distance to the wall and a maximum extension of 9 cm, and is compatible with VESA patterns from 75x75 mm to 200x200 mm for straightforward installation.

Advantages

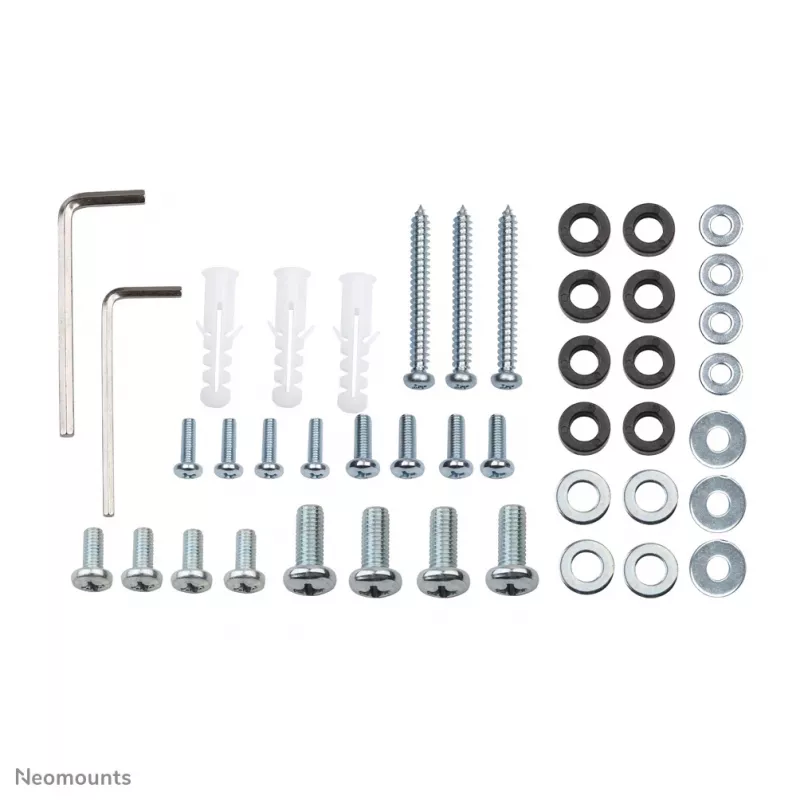

The mount offers tilt up to 30°, swivel and 360° rotation, allowing flexible adjustment of the viewing angle. It has a single pivot point for smooth movement and a slim black design that integrates with living rooms, bedrooms or home cinema setups. All required installation material is included.

Suitable for

• Wall mounting a TV or monitor sized 10"–40"

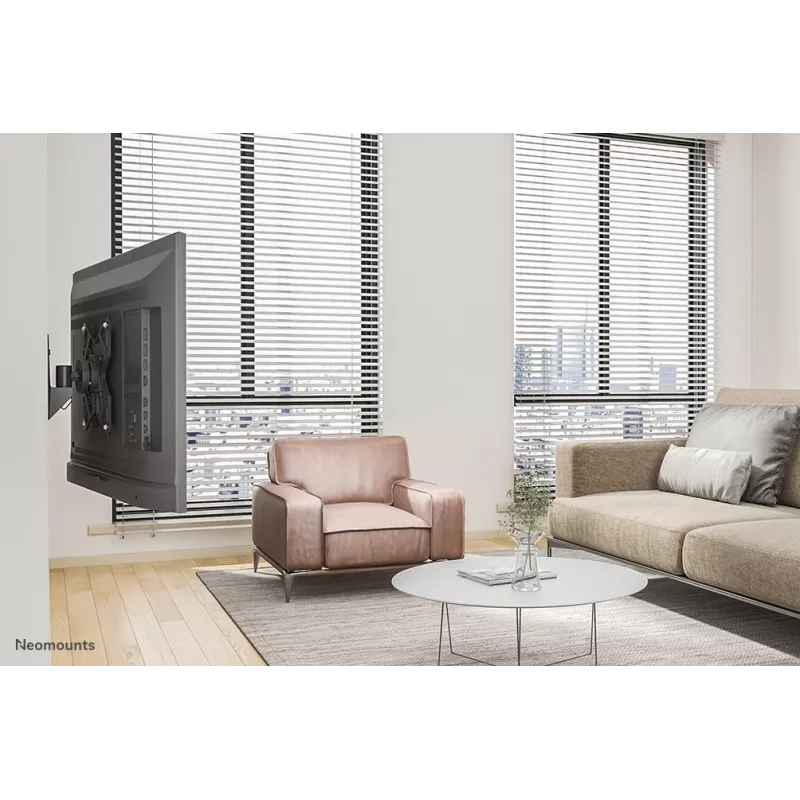

• Rooms where flexible viewing angles are needed (living room, bedroom, home cinema)
• Screens with VESA 75x75 mm to 200x200 mm

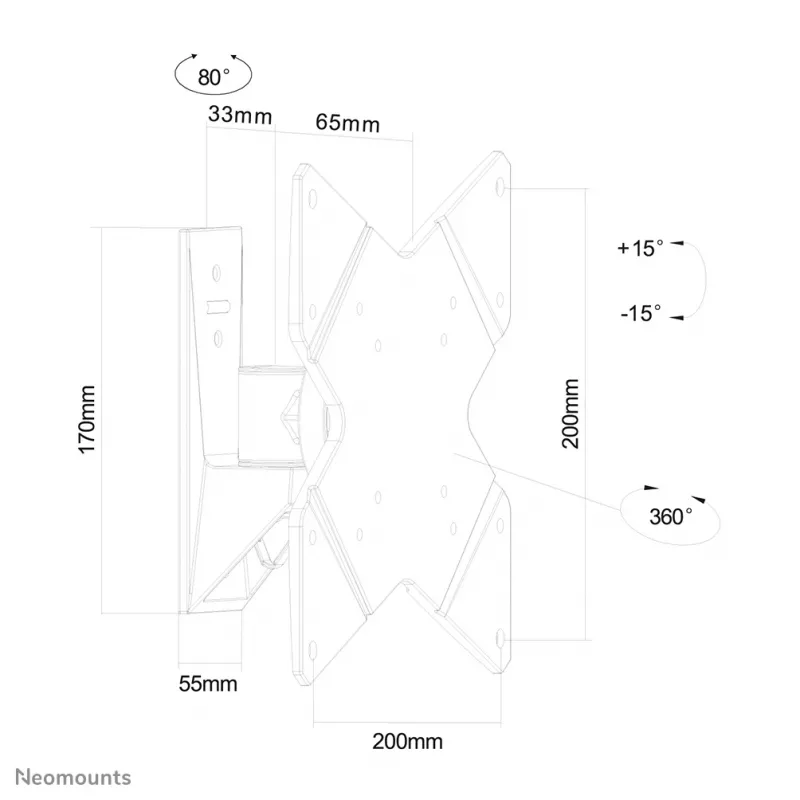

Key specifications

• Model: Neomounts FPMA-W815
• Supported screen size: up to 40" (102 cm)
• Maximum load capacity: 20 kg
• VESA compatibility: 75x75 mm — 200x200 mm
• Tilt: 0° to 30°; Swivel: up to 80°; Rotation: 360°
• Depth from wall: 0 mm (closed) — 90 mm (extended)
• Colour: Black

How to use

Mount the FPMA-W815 on a suitable load-bearing wall following the included instructions and hardware. Attach the VESA-compatible plate to the screen, hang the display on the mount and secure it according to the manual. Adjust tilt, swivel or rotate the screen to the desired viewing position and then return it to the wall when not in use.

Recommendations

Check the screen weight and VESA pattern before installation and ensure wall material can support the combined weight of the mount and display. Use the included installation material or appropriate anchors for your wall type.
