Neomounts FPMA-C020BLACK Monitor/TV mount ceiling 10-40 inch - h 26,5-40 cm

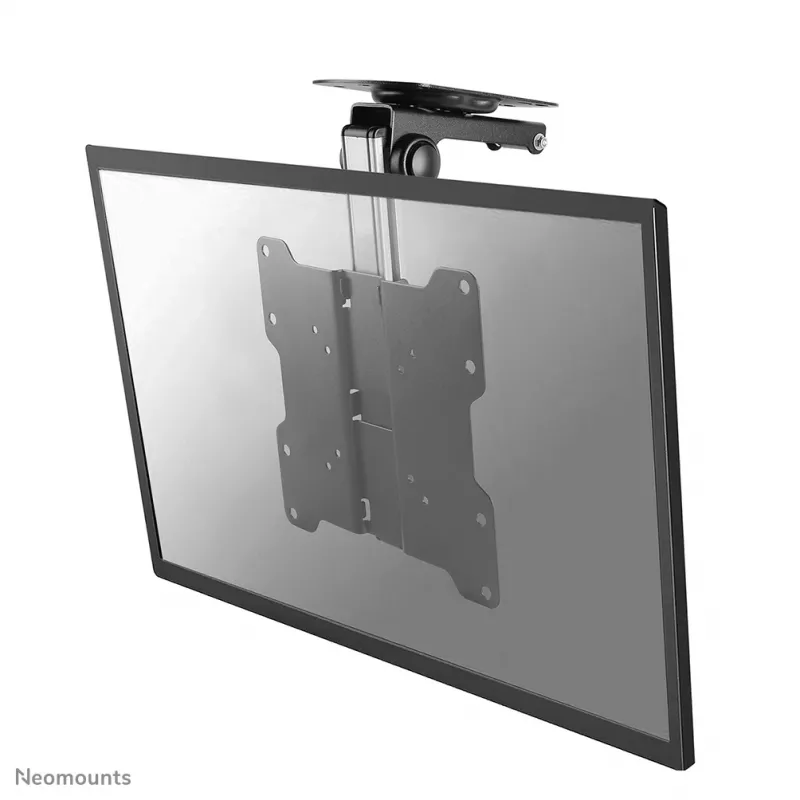

The Neomounts FPMA-C020BLACK is a ceiling mount for flat screens up to 40" (102 cm). It supports a single display with a maximum weight of 20 kg and fits VESA patterns from 75 x 75 mm up to 200 x 200 mm. The mount offers a height adjustment range of 265–400 mm and a tilt range of 0–90°, and includes integrated cable management. All installation material is included.

Advantages

The FPMA-C020BLACK provides flexible positioning with a wide tilt range and a single pivot point for easy angle adjustment. Its adjustable column lets you set the screen height between 26.5 and 40 cm, while the built-in cable management conceals and routes cables from the ceiling to the display. The mount is compatible with common VESA patterns and can be extended with Neomounts VESA adapter plates when needed.

Suitable for

• Mounting a single flat screen up to 40" (102 cm) from the ceiling
• Rooms where wall mounting or floor placement is not feasible
• Spaces that require concealed cable routing for a tidy installation

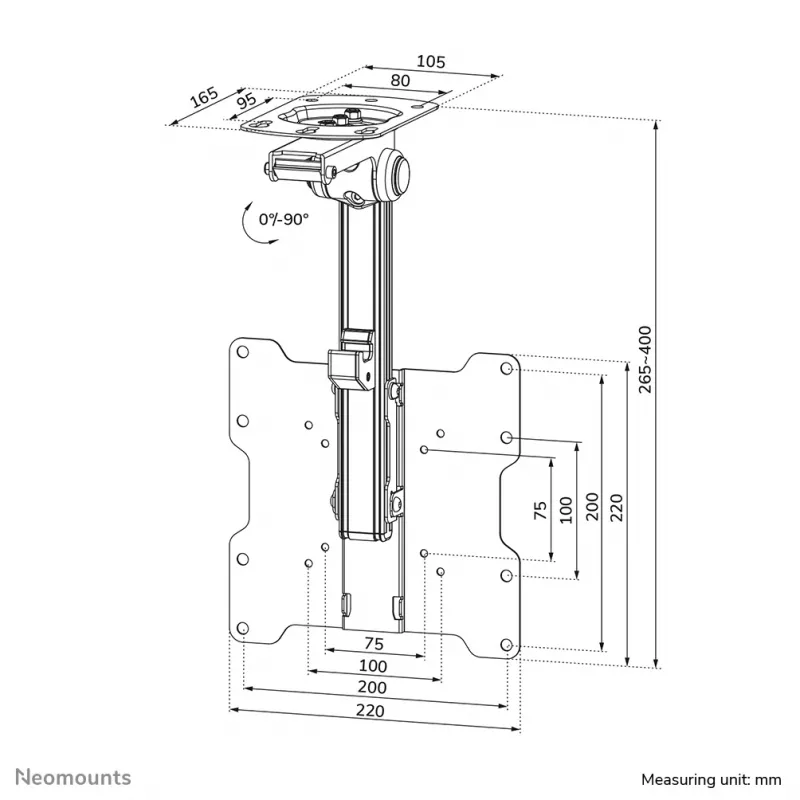

Key specifications

• Model: Neomounts FPMA-C020BLACK
• Maximum screen size: 40" (102 cm)
• Maximum weight capacity: 20 kg
• Height adjustment: 265–400 mm
• Tilt range: 0–90°
• Supported VESA patterns: 75 x 75 mm — 200 x 200 mm
• Colour: Black
• Included: installation material

How to use

Attach the mount to a suitable ceiling structure using the included installation material and follow the supplied assembly instructions. Fix the VESA plate to the back of the screen, adjust the height of the column to the desired measurement within 265–400 mm, and hang the screen on the mount. Set the viewing angle by tilting the screen within the 0–90° range and secure all fasteners. Route the cables through the column to keep them concealed.

Recommendations

Ensure the ceiling structure and fixings can support the combined weight of the mount and display (maximum 20 kg). Use VESA adapter plates if the screen’s hole pattern does not match 75 x 75 mm or 200 x 200 mm. If unsure about ceiling strength or installation, consult a qualified installer.
