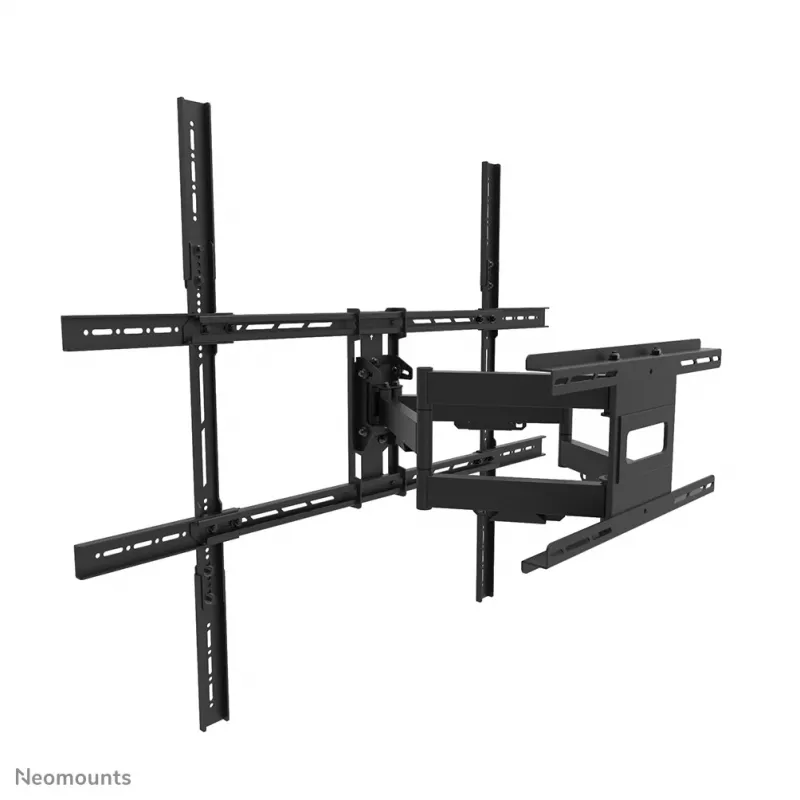

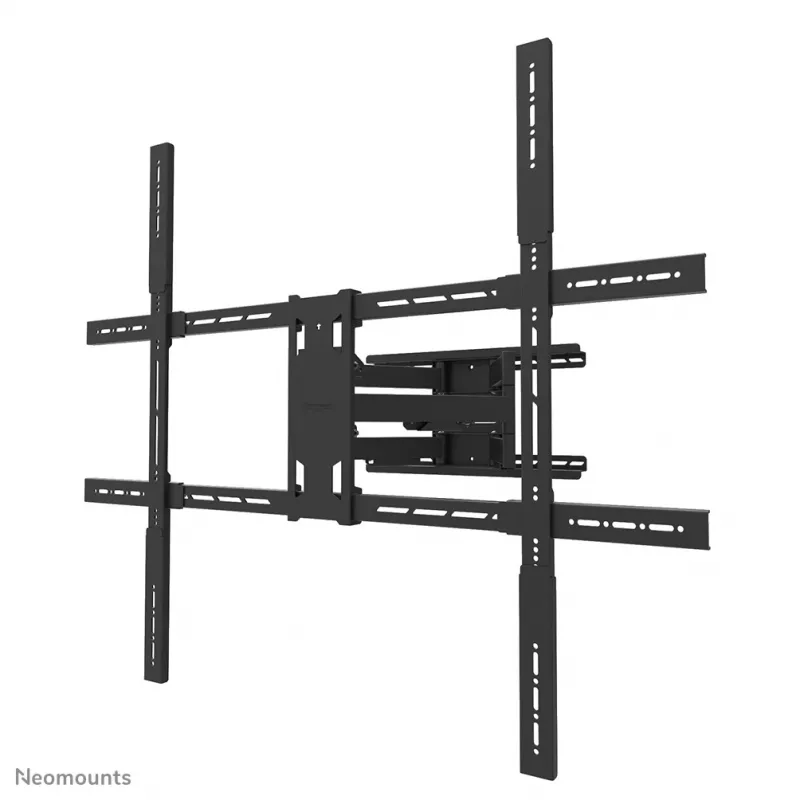

Neomounts AWLS-950BL1 VESA extension kit 55-110 inch - max 125 kg

The Neomounts AWLS-950BL1 is a VESA extension kit for wall mounting that expands the VESA pattern range from 460x640 up to 1200x900 mm. It is designed to be used with compatible Neomounts wall mounts (for example WL40S-950BL18) and supports a maximum screen size of 110" and a maximum load of 125 kg. The kit is compact, black in colour and intended to provide a wider mounting interface for larger displays.

Advantages

The extension kit increases the VESA mounting range to accommodate larger displays without replacing the existing wall mount. It supports a high maximum weight capacity of 125 kg while remaining relatively lightweight at 4.3 kg. With its black finish and slim profile (51 mm width, 18 mm depth, 300 mm height) it integrates with most installations and maintains stable support for a single display.

Suitable for

• Mounting larger LCD/LED displays with non-standard VESA patterns
• Upgrading an existing Neomounts wall mount to support bigger screens
• Digital signage and professional display installations up to 110"

Key specifications

• Maximum VESA mount: 1200 x 900 mm
• Supported VESA range: from 460 x 640 mm to 1200 x 900 mm
• Maximum screen size: 110"
• Maximum weight capacity: 125 kg
• Number of displays supported: 1
• Weight: 4.3 kg
• Product colour: Black

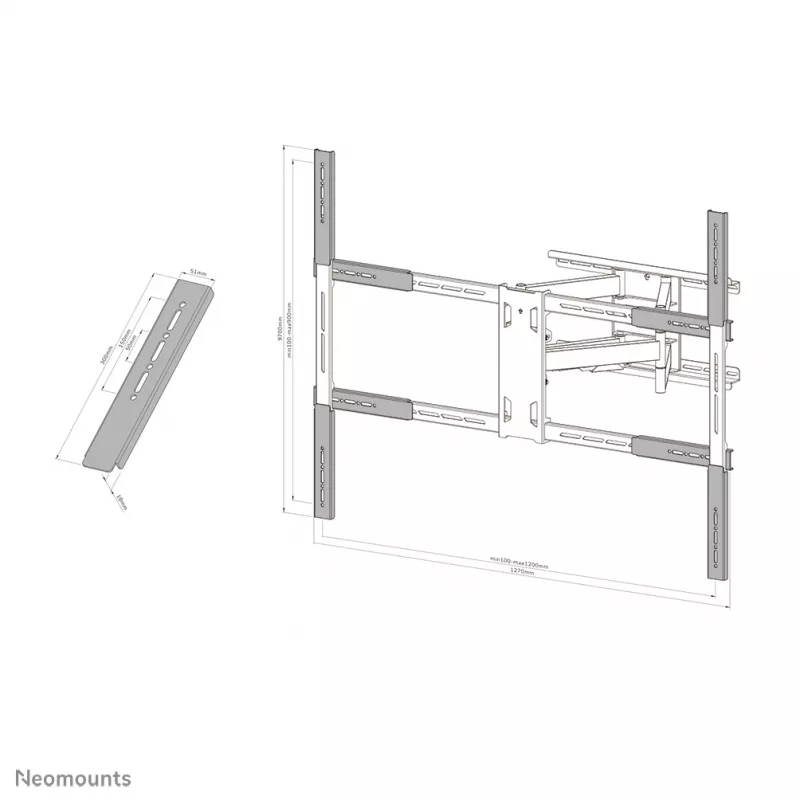

• Dimensions (W×D×H): 51 × 18 × 300 mm

How to use

Attach the AWLS-950BL1 extension kit to the compatible Neomounts wall mount following the manufacturer's installation instructions. Align and secure the extension plate to the wall mount, then attach the display to the extended VESA pattern using appropriate screws and spacers for the display model. Verify that the combined assembly and display do not exceed the 125 kg maximum load and that all fasteners are tightened to the recommended torque.

Recommendations

Ensure compatibility with your specific Neomounts wall mount model before installation and use appropriate mounting hardware for your display. For safety, have two qualified persons perform the installation for large or heavy displays and double-check that the wall structure and anchors can support the combined load.
