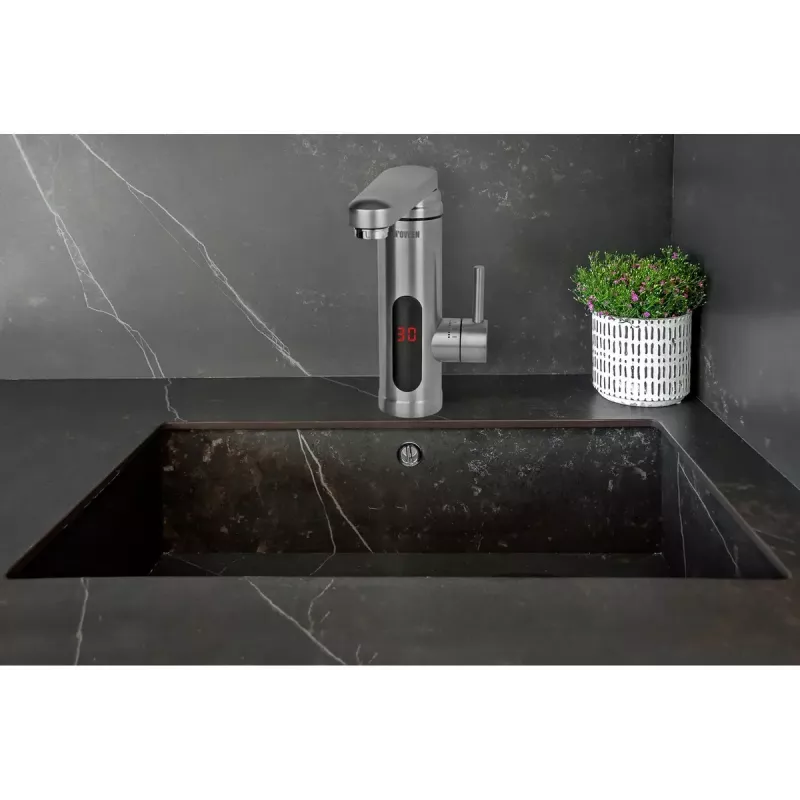

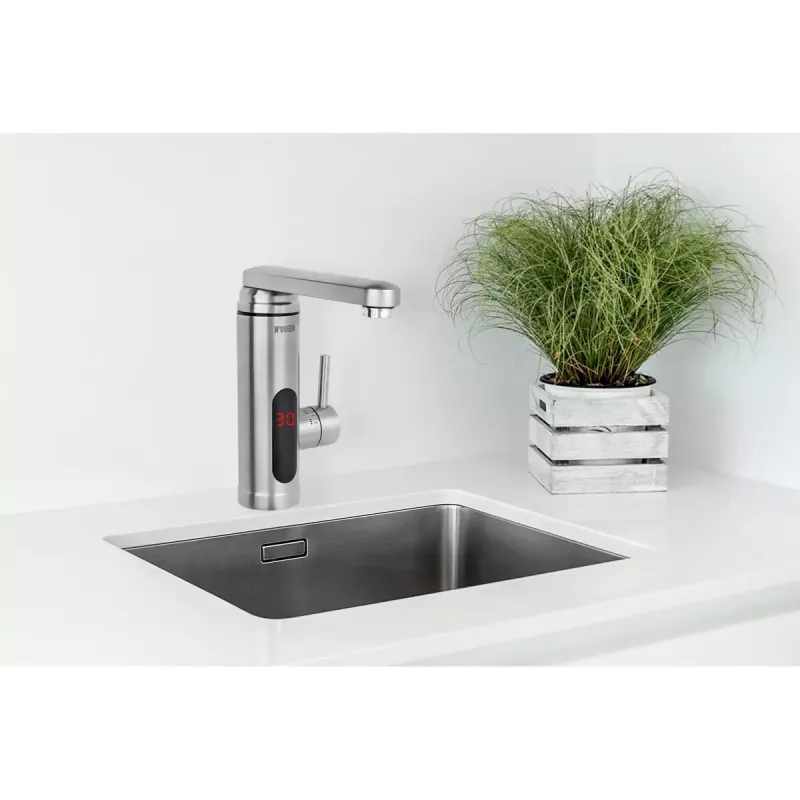

Instantaneous water heater NOVEEN IWH560 5.5 kW, stainless steel, countertop, max flow 2.5 l/min, IPX4

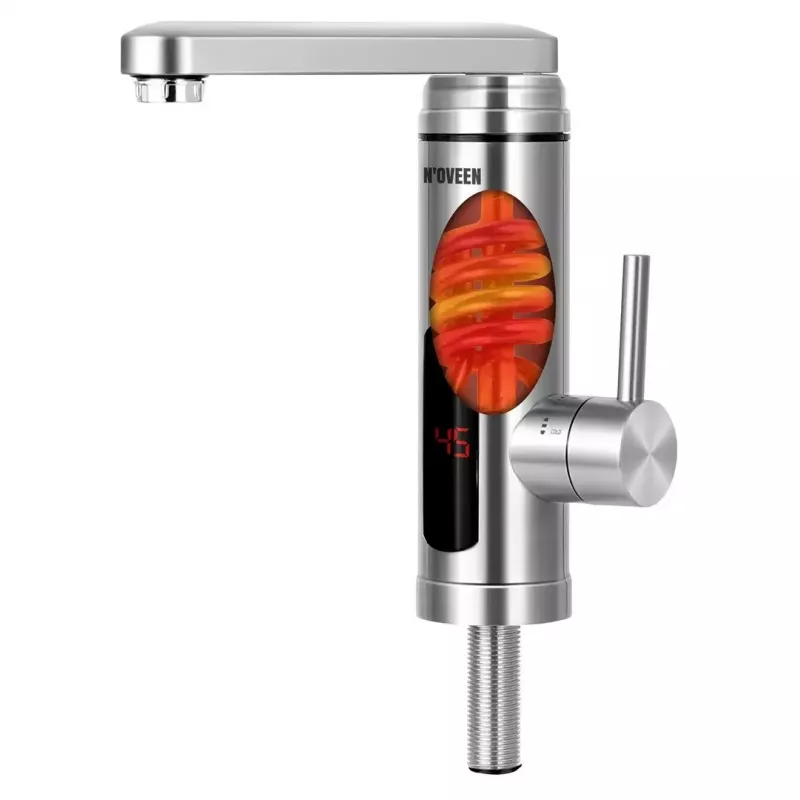

Compact instantaneous electric water heater NOVEEN IWH560 provides on-demand hot water for point-of-use applications. The unit features a stainless steel (Inox) housing, integrated instantaneous heating element and LED display that shows the actual outlet temperature. It is designed for countertop mounting and has IPX4 splash protection. The heater is powered from AC 220–240 V, 50 Hz and has a rated power of 3600 W, delivering a maximum water flow of 2.5 l/min and a maximum outlet temperature of 60 °C. The product includes an AC adapter and power plug and is operated using a lever control with activity LED indicators.

Advantages

The stainless steel housing offers corrosion resistance and easy cleaning, while the integrated instantaneous heating element provides hot water on demand without a storage tank. LED display and activity indicators give clear information about temperature and operating status. Compact countertop design and IPX4 protection make the unit suitable for installation in small wash areas where splash resistance is required.

Suitable for

• Sinks at small kitchens or kitchenettes
• Bathroom washbasins and handwash stations
• Office or commercial point-of-use hot water needs
• Temporary or mobile installations where countertop mounting is preferred

Key specifications

• Maximum water flow: 2.5 l/min
• Maximum outlet temperature: 60 °C
• Power supply: AC 220–240 V, 50 Hz
• Rated power: 3600 W
• Ingress protection: IPX4 (splash resistant)
• Control type: Lever
• Display: LED with actual temperature indication
• Material: Stainless steel (Inox)
• Mounting: Countertop
• Maximum water pressure: 600 kPa
• Dimensions (W×H×D): 185 × 215 × 60 mm
• Weight: 1.39 kg

How to use

Connect the heater to an AC 220–240 V, 50 Hz power supply using the provided AC adapter and power plug. Mount the unit on a countertop surface following stable placement and appropriate water inlet/outlet connections. Activate the device with the lever control; the LED display will show the actual outlet temperature and activity indicators will signal operation. Adjust flow and lever position to obtain the desired hot water temperature, keeping in mind the unit’s maximum outlet temperature of 60 °C and maximum flow rate.

Recommendations

For reliable operation, ensure incoming water pressure does not exceed the specified maximum and avoid prolonged operation at maximum flow to maintain temperature. Regularly clean external stainless steel surfaces and check electrical connections before use. Install in locations protected from direct water jets despite the IPX4 splash resistance.
