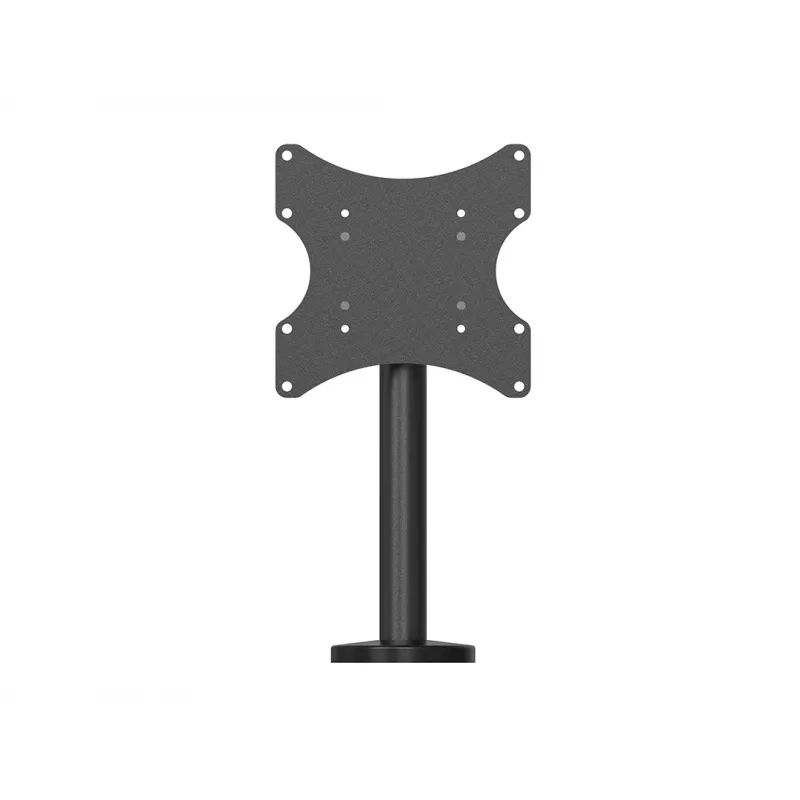

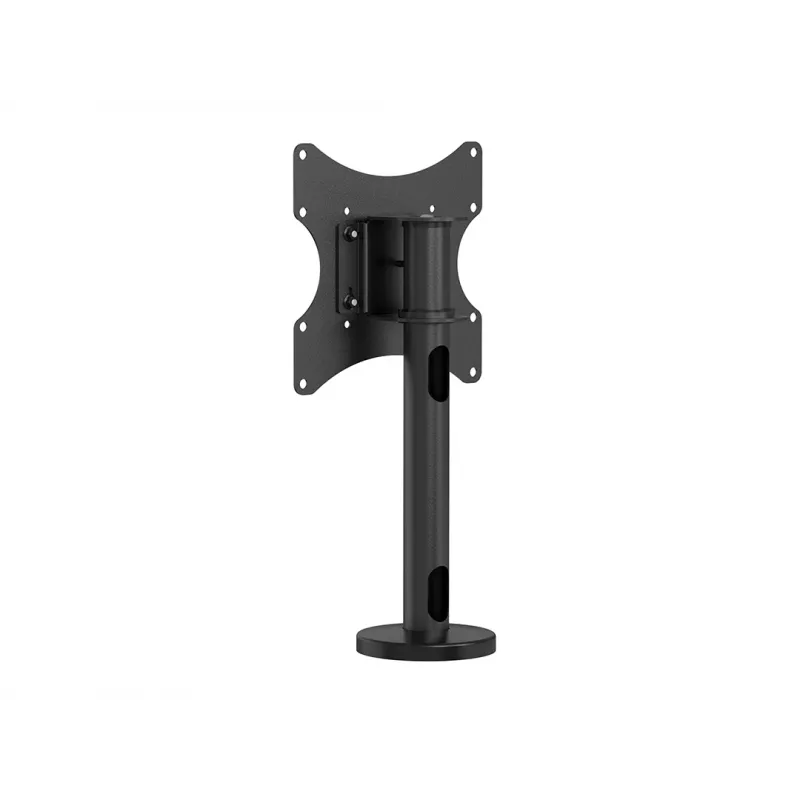

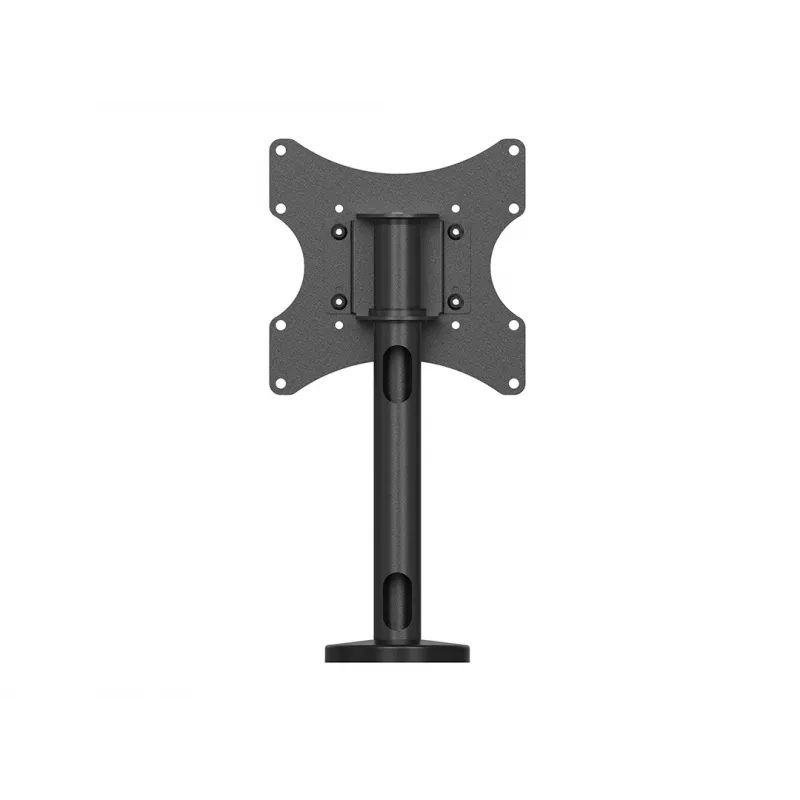

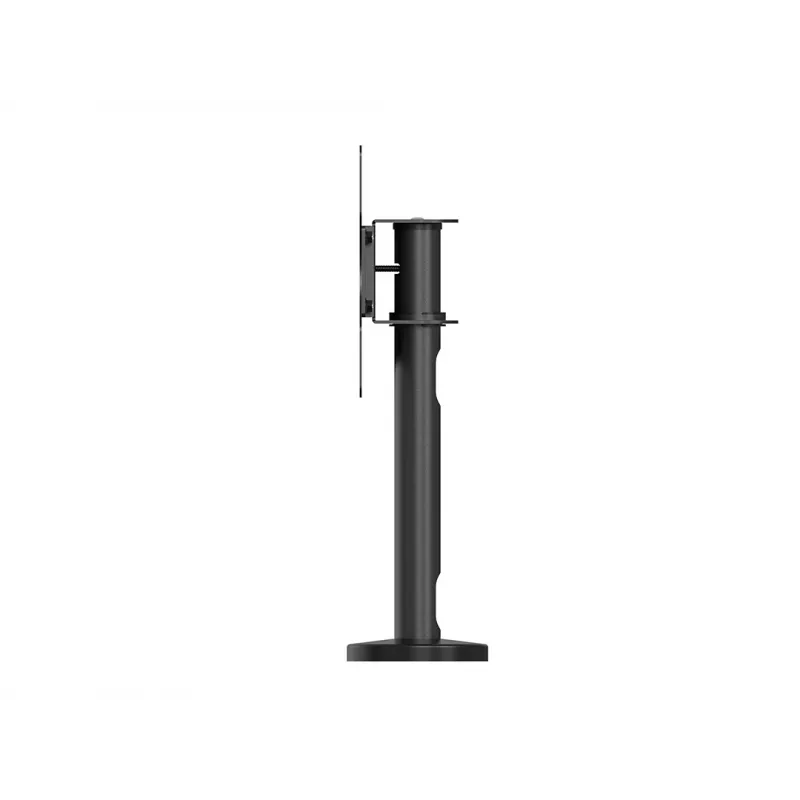

Multibrackets M VESA Bolt Down TV-mount Turn 200 MAX 30 kg 23-43 inch

The Multibrackets M VESA Bolt Down TV-mount Turn 200 MAX secures a single 23–43 inch TV up to 30 kg to desks, furniture or other solid surfaces. Its compact black design conceals cables and provides a modern, tamper-resistant mounting solution compatible with VESA patterns from 100×100 mm up to 200×200 mm.

Advantages

The bolt-down construction prevents tipping and offers stable, tamper-proof support while the swivel adjustment from -30° to +30° allows precise positioning for comfortable viewing. A locking mechanism reduces the risk of collisions with walls. The mount is easy to assemble and keeps cables out of sight for a neat installation.

Suitable for

• Meeting rooms and conference tables
• Reception areas and store front displays
• Living rooms and bedrooms with limited floor space
• Public or semi-public installations requiring tamper-resistant mounting

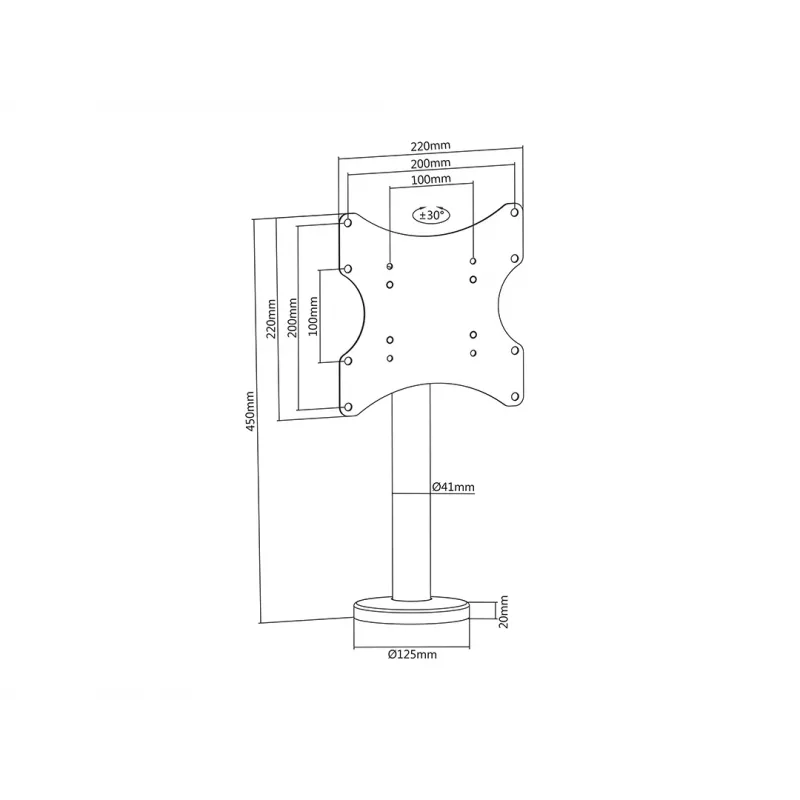

Key specifications

• Supported screen size: 23"–43"
• Maximum weight capacity: 30 kg
• Maximum VESA mount: 200 × 200 mm (also fits 100 × 100 mm)
• Number of displays supported: 1
• Product colour: Black
• Product weight: 7 kg

How to use

Attach the mount to a suitable solid surface using the bolt-down anchors, then fix the TV to the VESA plate according to the VESA pattern on the display. Adjust the swivel angle between -30° and +30° to achieve the preferred viewing position and engage the locking mechanism to secure the angle. Route and conceal cables as needed before final tightening.

Recommendations

Use only on sturdy, load-bearing surfaces and follow the included assembly instructions and safety guidelines. Verify that the TV’s VESA pattern and weight do not exceed the mount’s specifications (maximum 200×200 mm and 30 kg).
