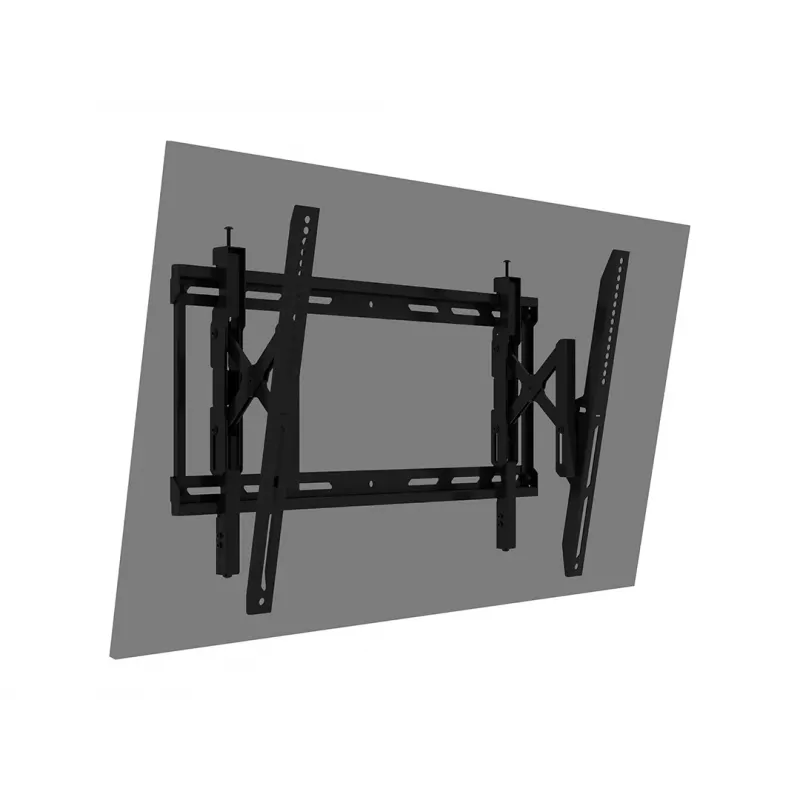

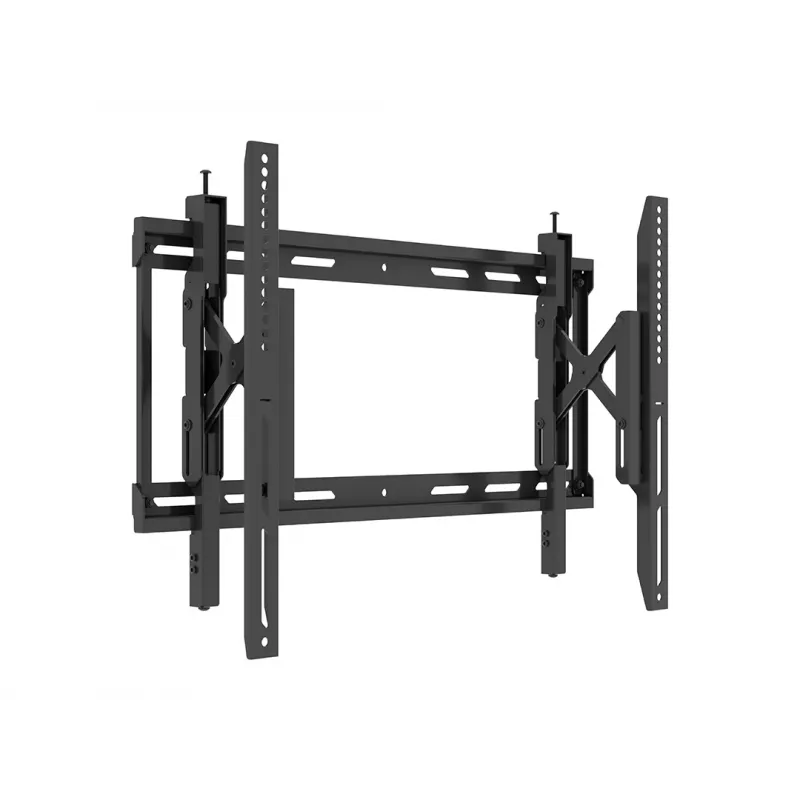

Multibrackets M Universal Push Out Tilt 600 TV Mount 60 kg 43-86 inch

Introducing our innovative design combined with a push in pop out wall mount partially pre-assembled right out of the box, makes this one of our fastest installing service wall mount ever!

With the market for large displays with numerous accessories connected to the backside of the display or TV the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many.

With a wide range of VESA standards: 100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x400, 600x400 it can be used with most of the displays and TV´s on the market.

Premium function and design

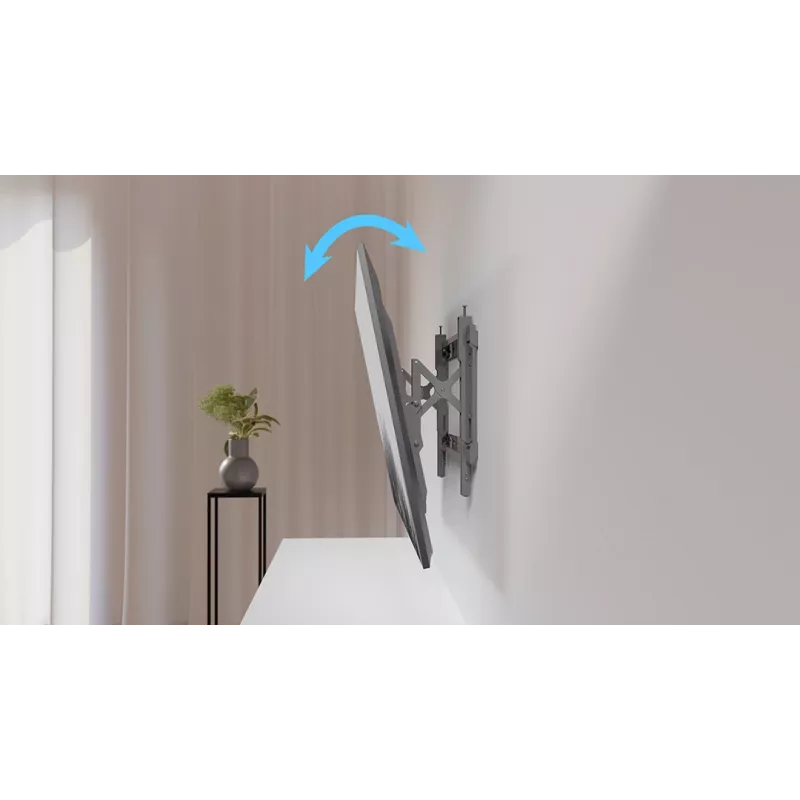

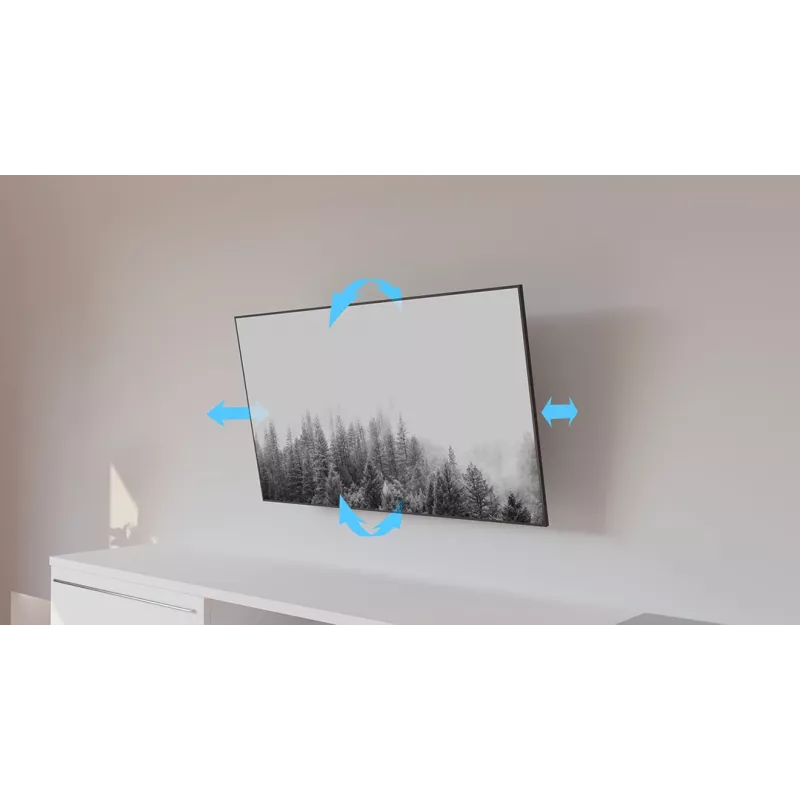

This Premium Push Out Tilt Wallmount represents the next level of advanced push out & tilt technology, now allowing you to tilt your TV in 4 different directions. Not only up and down but now left and right for semi swivel capability. This mount provides 15cm of extension. This extension allows even the larger TVs to achieve a greater tilt range. Large TV´s installed on traditional tilting mounts often hit the wall, limiting the maximum tilt that can be achieved. This Push Out Tilt Wallmount solves this by extending from the wall, offering Large TVs a greater tilt range.

Professional Home installations or Office use
Our M Universal Push Out Tilt 600 is a easy service mount quick to install, and easy to configure. Made especially for easy access applications. This is a professional home or office mount focusing on screen installations, easy and fast installation and simplified maintenance. Left and right fine tune adjustment functionality. This is a wallmount that can be called “an installers dream”.

Ultra flexible tilting – reach multiple display positions
With the M Universal Push Out Tilt 600 you can install displays in a wide range 43" - 86" and reach multiple different configurations with its 4 different tilt directions or push out positions. Finally, you can leave the tedious wall spacers behind to reach the backside of your display.

Ready assembled & quick to install
This wall mount partially pre-assembled right out of the box, makes this our fastest installing service wall mount ever. The installation process is simple. As with other Multibrackets products the installation is built on that the rail is first installed onto the wall. No measuring and guessing needed.

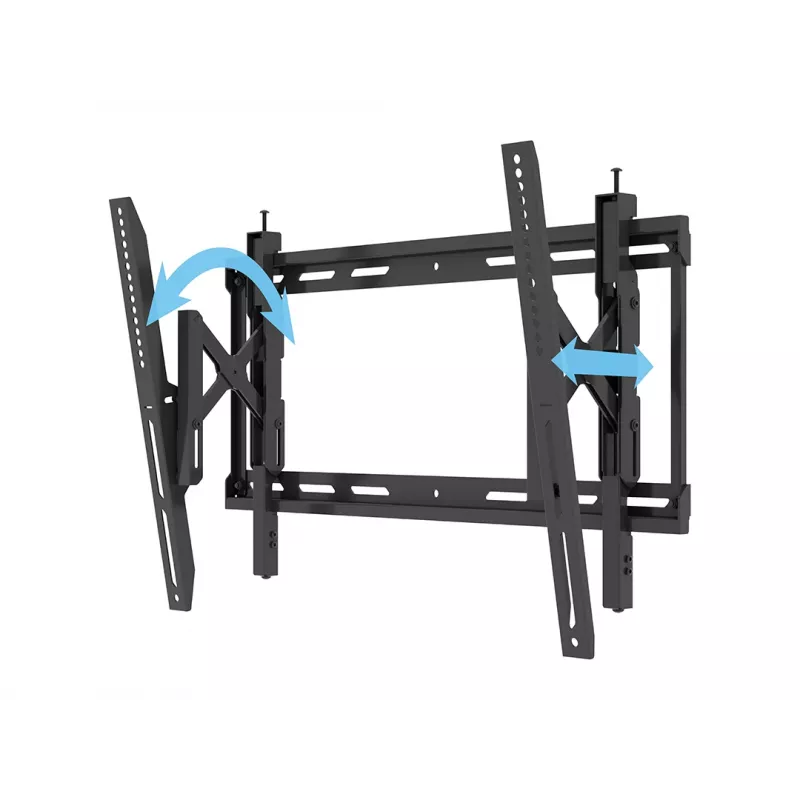

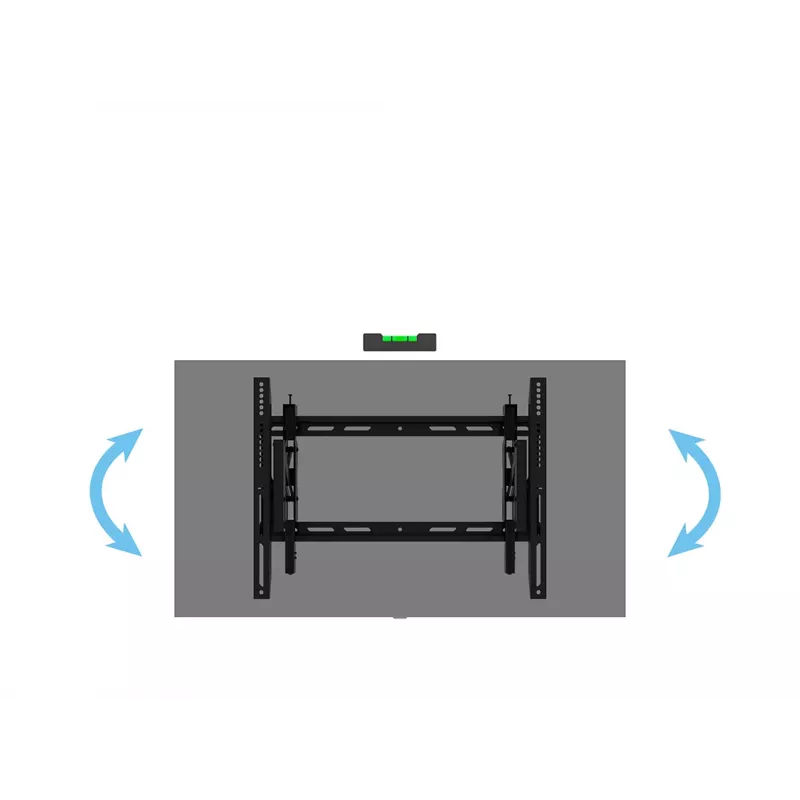

When the arms are hanging on the rail the display can be moved left and right to find the exact right position for the display, lateral shifting.

Easy-access to your after-service
The M Universal Push Out Tilt 600 push in pop out feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when installing a display with accessories like Camera, Sound or Video bar, Game console and Apple TV or any other media player.

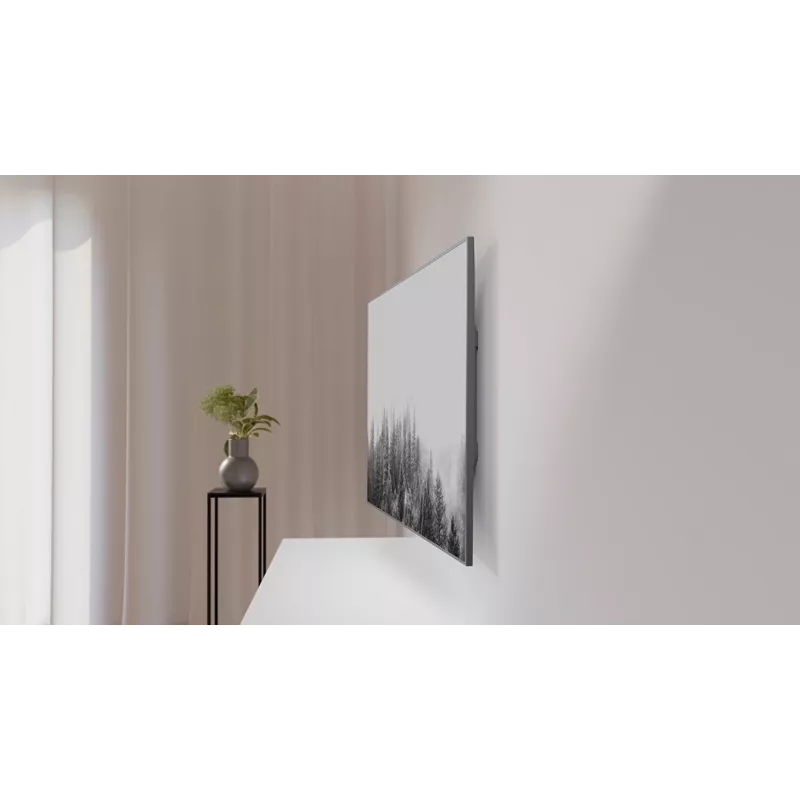

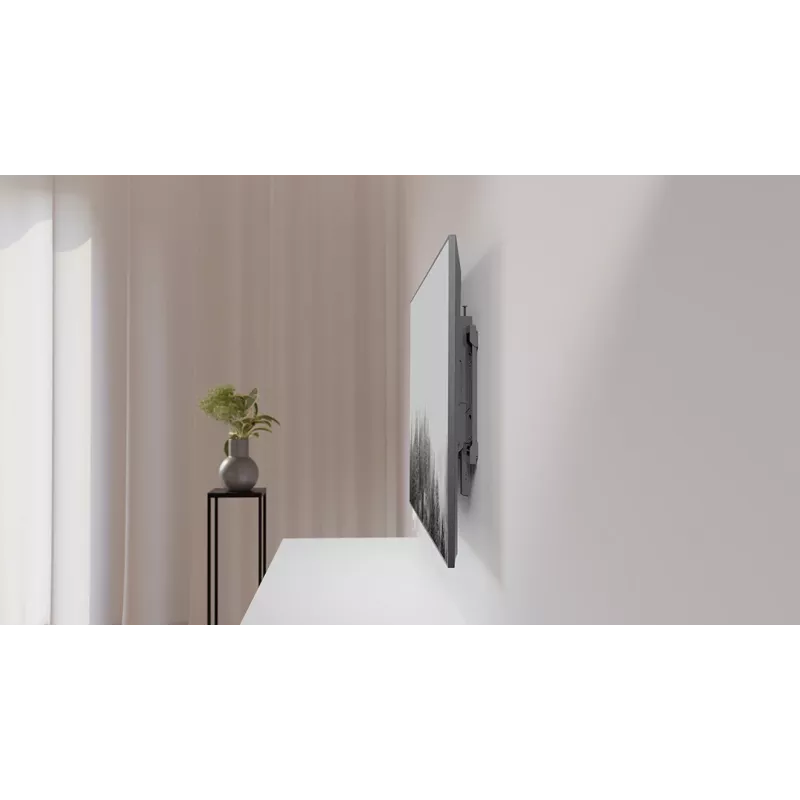

Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other details to access the back of the screen for maintenance or when placed in recessed areas.

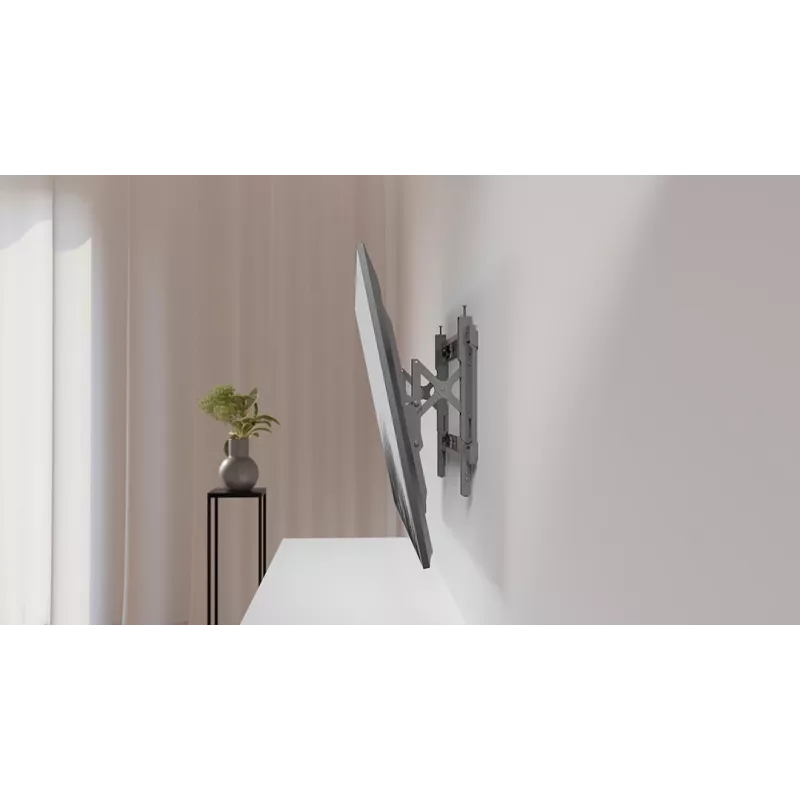

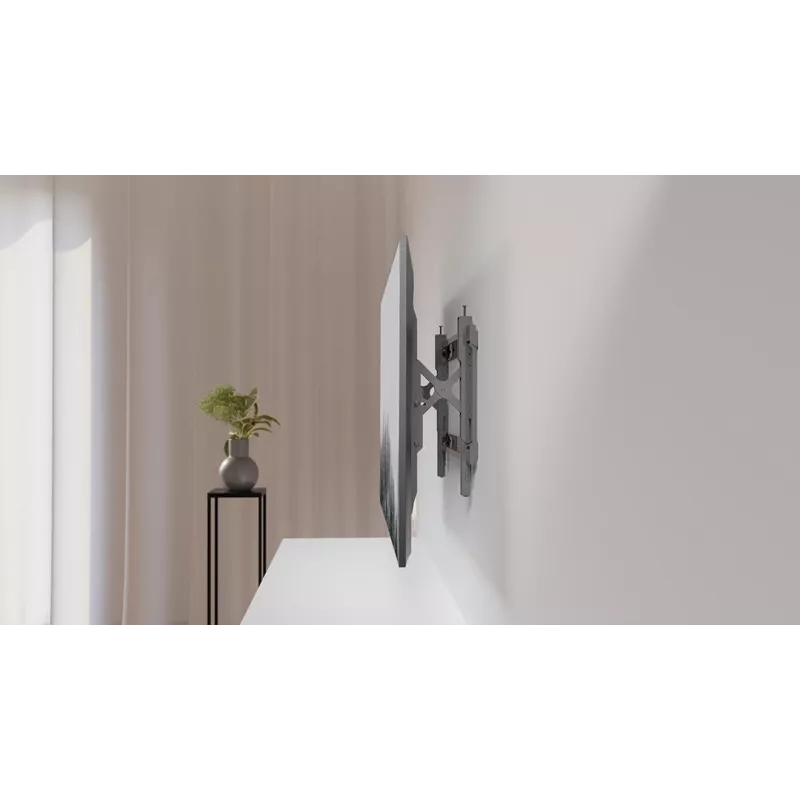

The pop out feature is handled by its scissor arm construction expanding out. Of course, the screen is as easily pushed back into place after maintenance is finished..

Multibrackets M Universal Push Out Tilt 600. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -2 - 12°. Product colour: Black

How to use

Install the rail level on the wall according to wall type and load-bearing requirements, then hang the partially assembled arms onto the rail. Attach the TV to the VESA brackets, adjust lateral position by sliding the display along the rail, and lock into position. For service access, push the screen inward to release the lock; the scissor-arm mechanism will pop the display out for rear access. After maintenance, push the display back until it clicks into the locked position.

Recommendations

Use appropriate wall anchors and follow local mounting regulations. Verify the TV weight and VESA pattern before installation. Leave clearance for cable routing and accessories such as cameras or soundbars when planning installation height and extension.
