Multibrackets M Public Video Wall Mount Push HD Max 90kg 50-95 inch

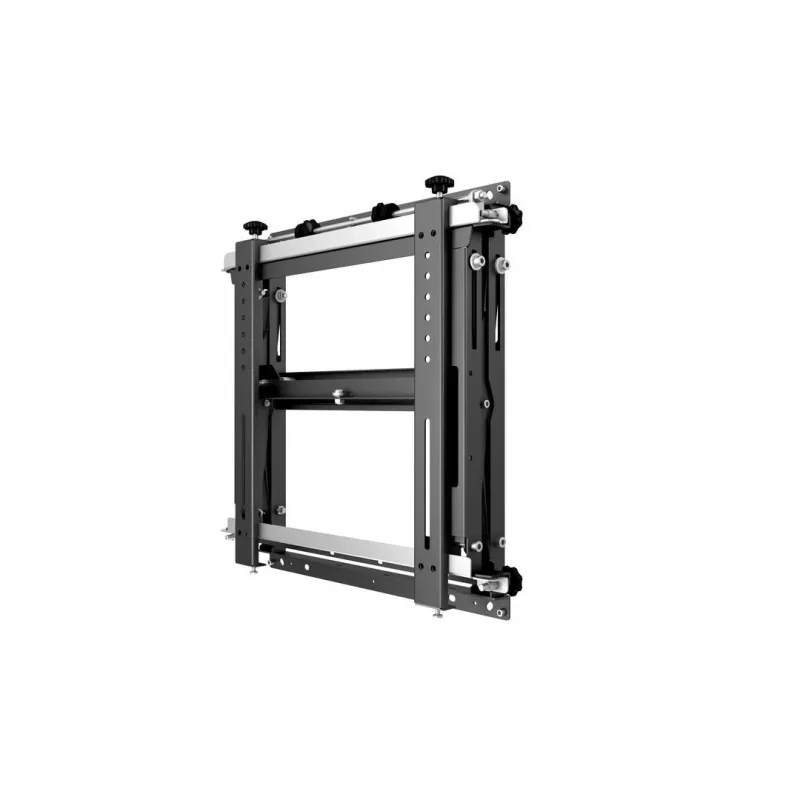

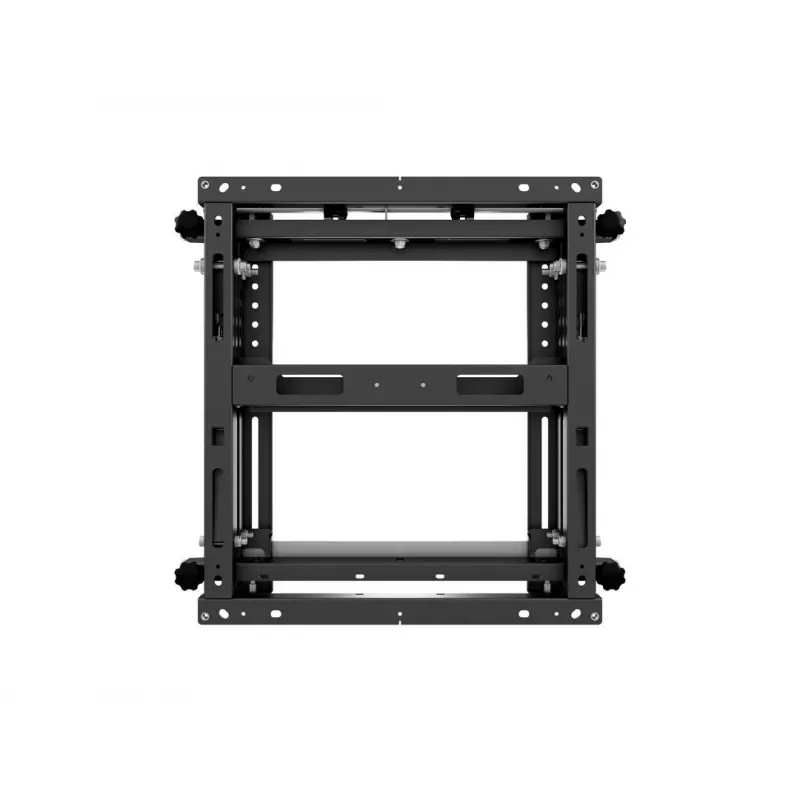

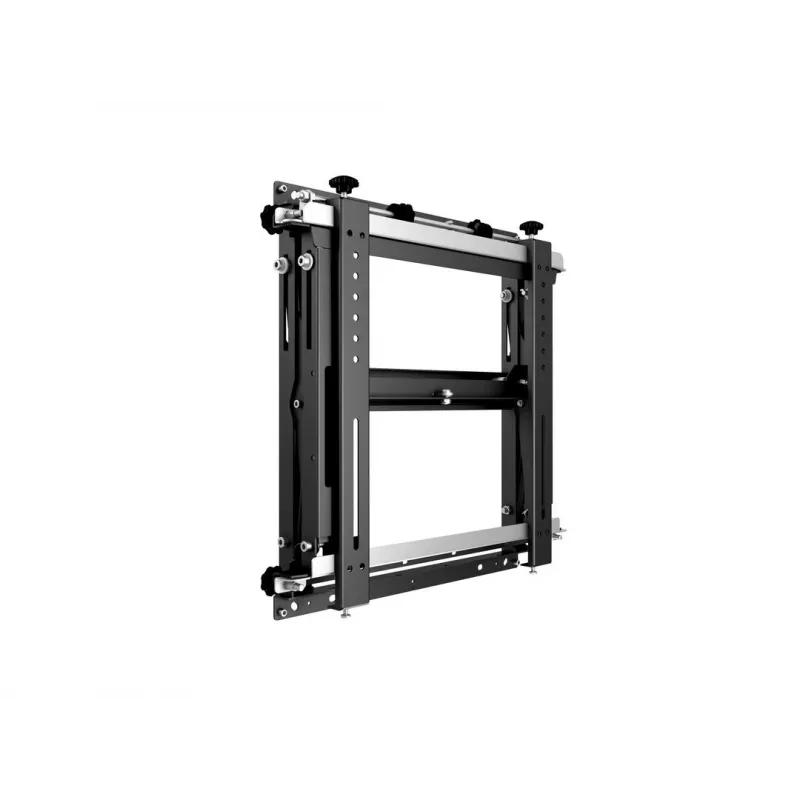

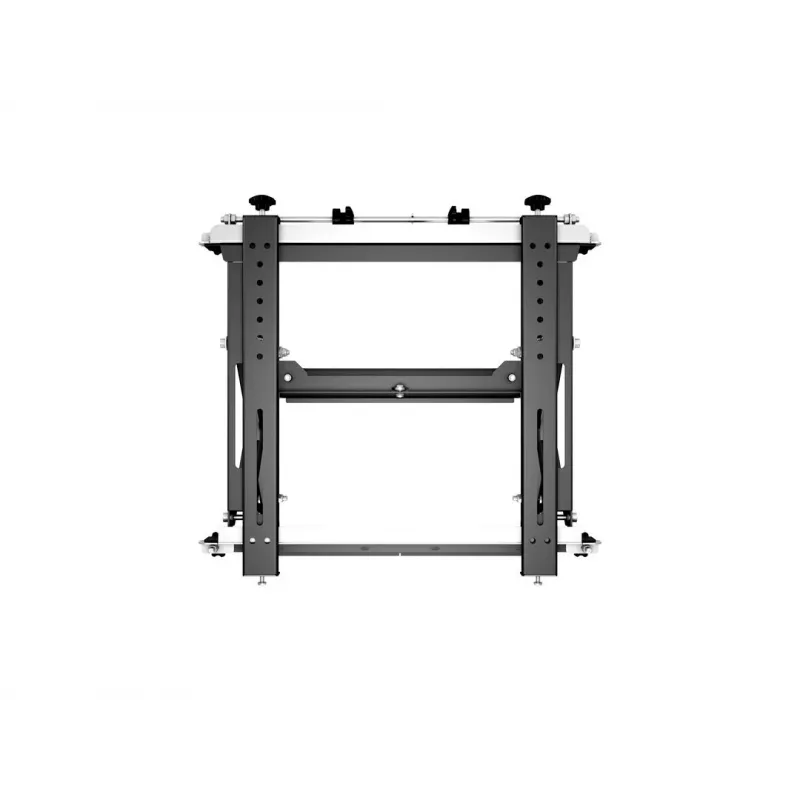

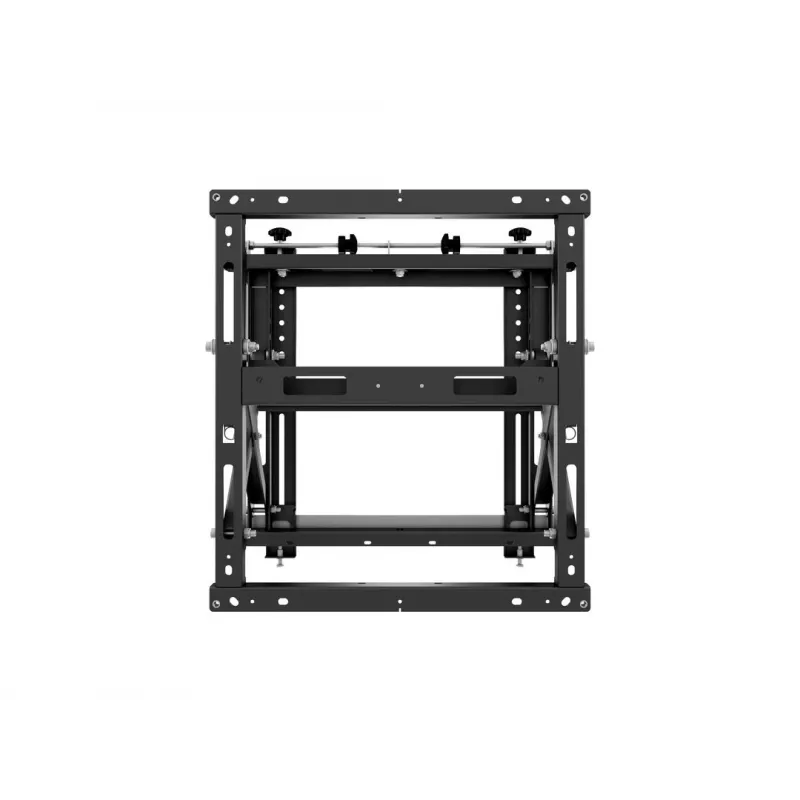

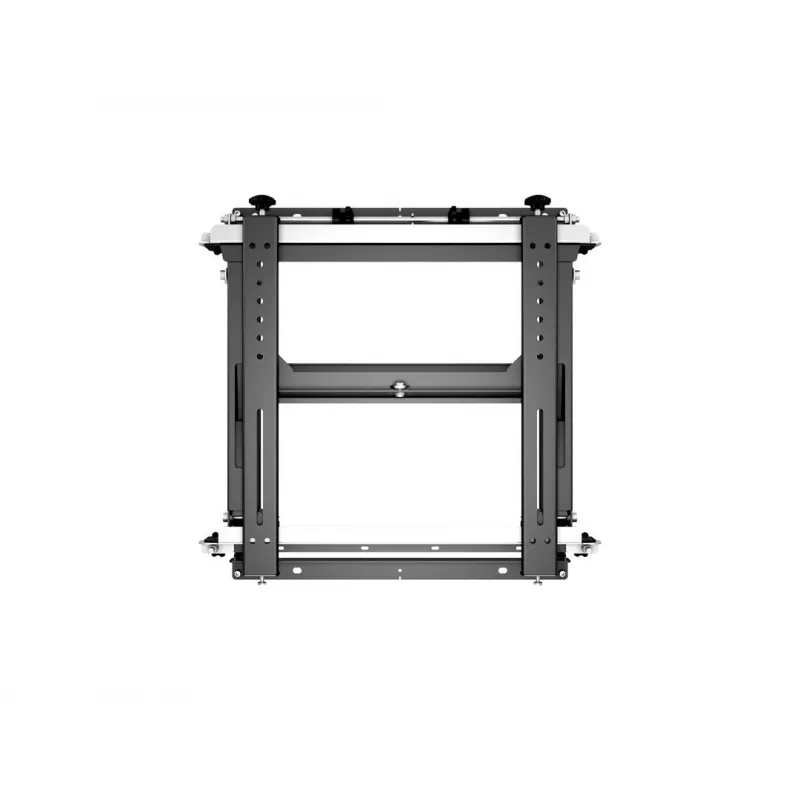

The Multibrackets M Public Video Wall Mount Push HD Max 90kg supports single displays from 50 to 95 inches and is designed for professional video wall installations. The mount accommodates VESA patterns up to 400 x 400 mm and a maximum display weight of 90 kg. Its steel construction with epoxy coating provides durable support and a black finish suitable for public and commercial environments.

Advantages

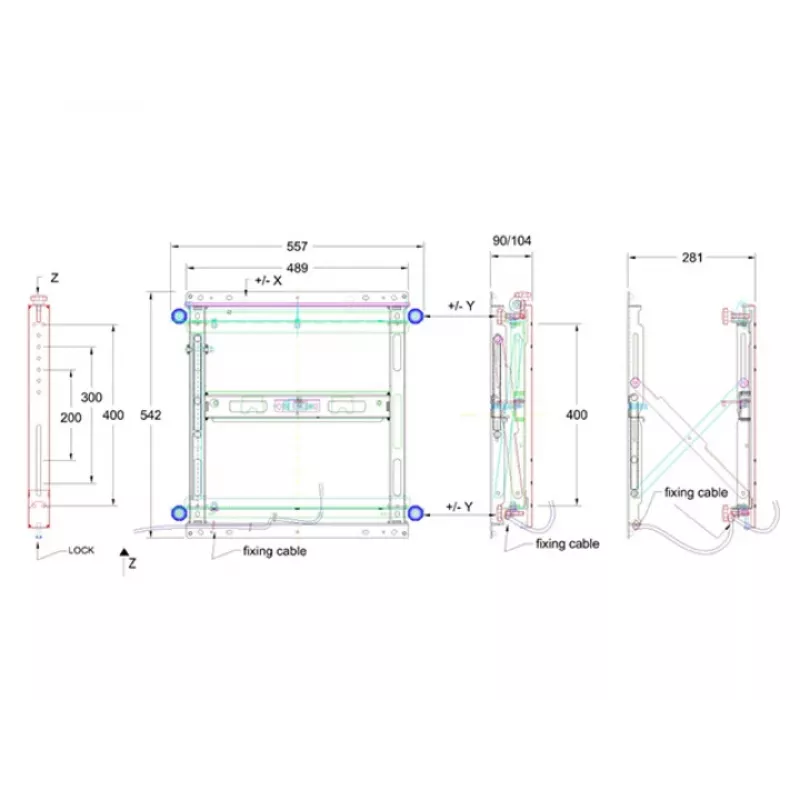

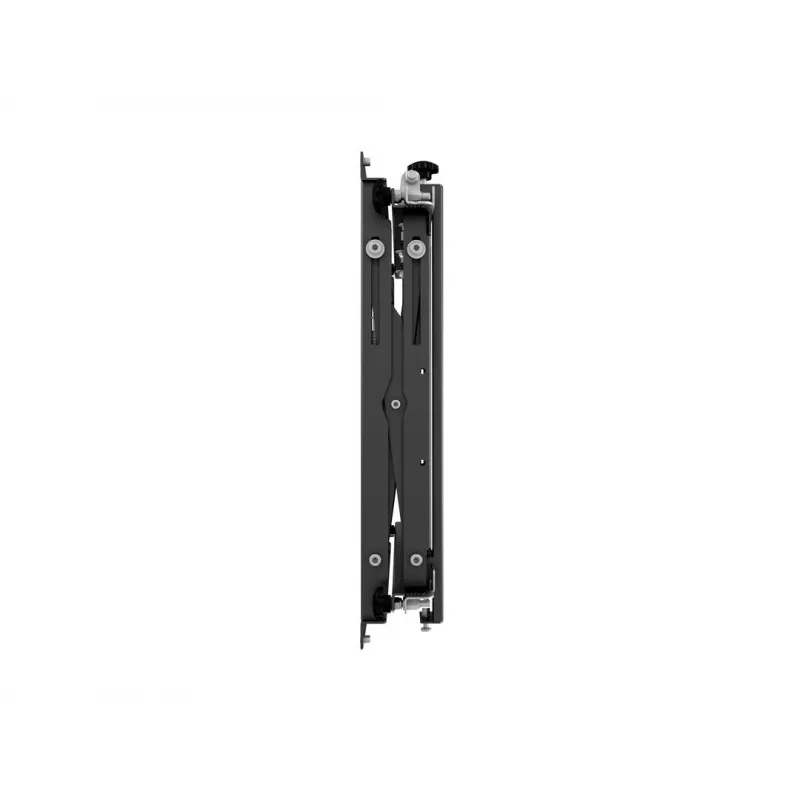

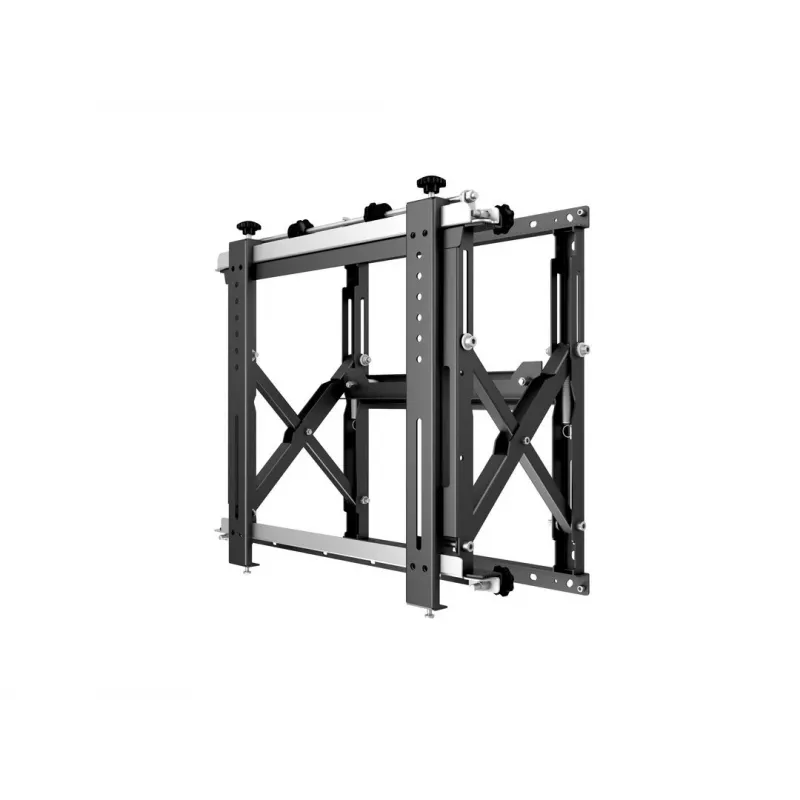

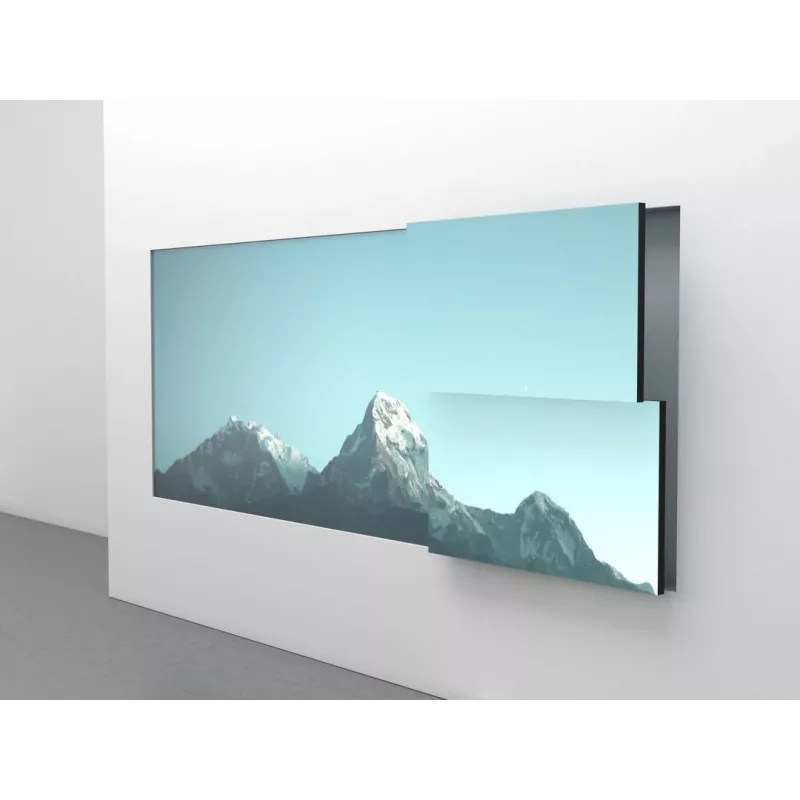

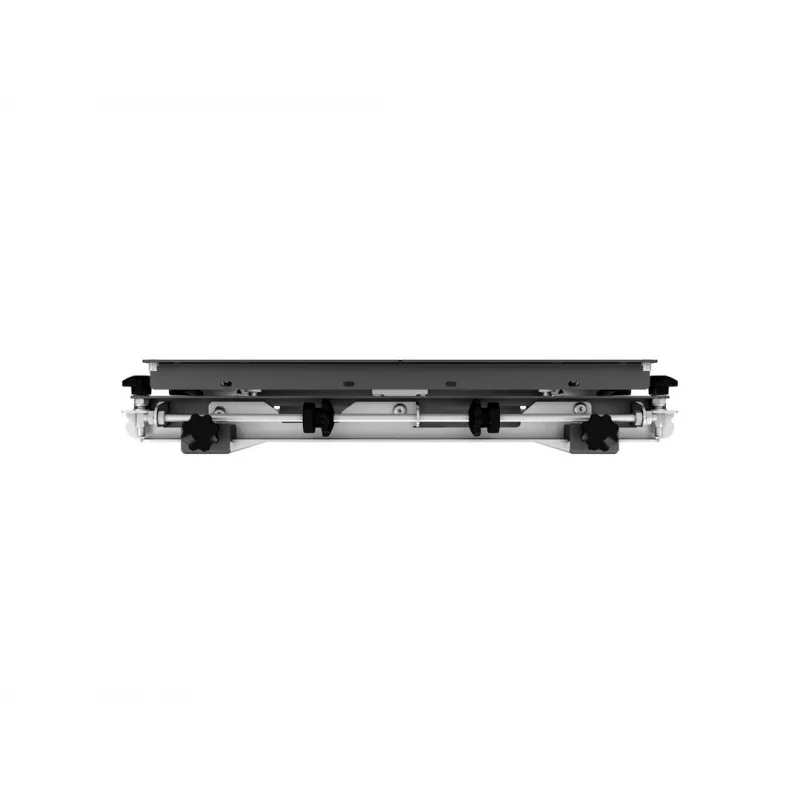

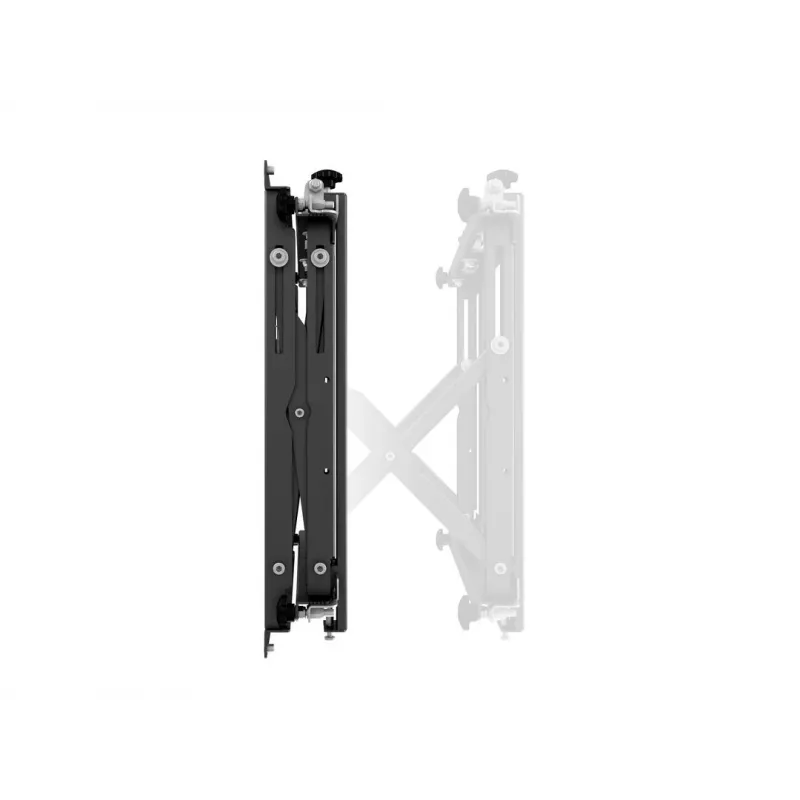

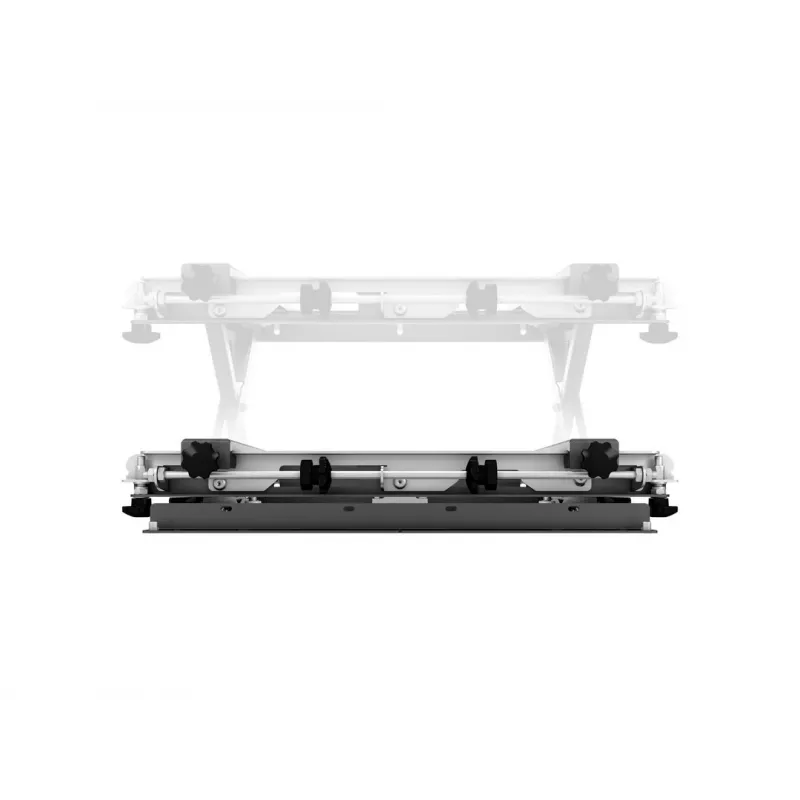

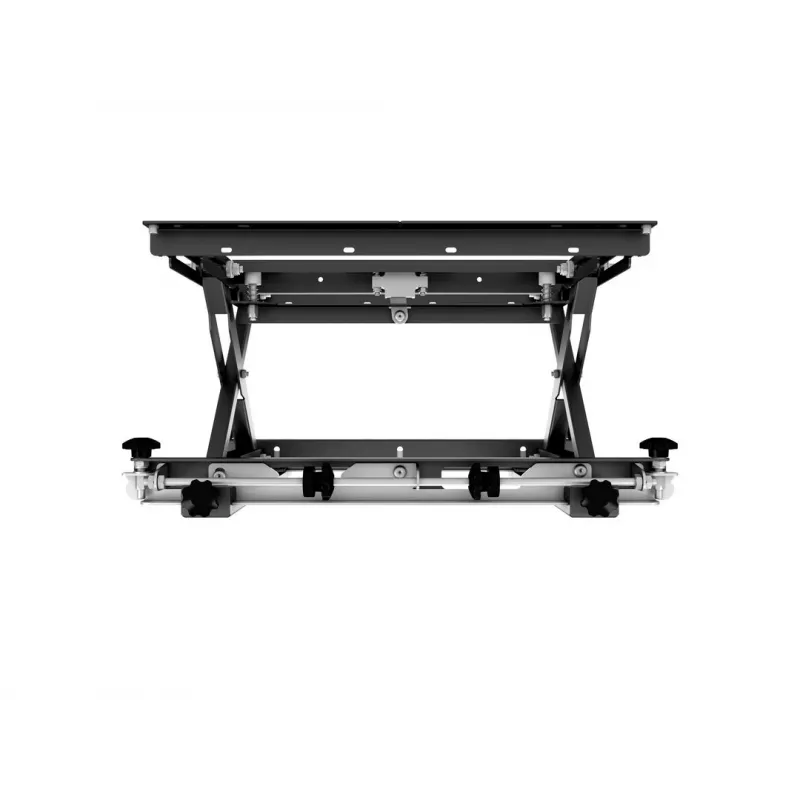

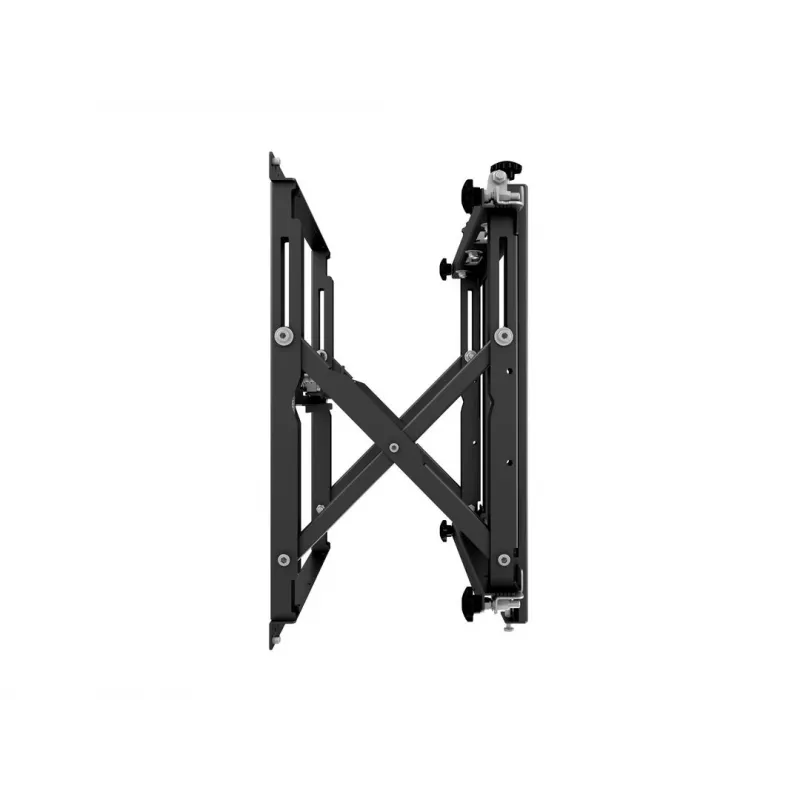

The mount offers a pop-out service function that allows individual screens to be released by pushing the display outward, enabling quick access for maintenance without removing adjacent screens. An integrated pantograph (scissor arm) mechanism handles the pop-out movement and simplifies reinstallation after service. Fine-tune adjustment knobs provide individual depth, lateral and height alignment for each screen, reducing installation and alignment time. The robust iron structure is epoxy painted for corrosion resistance and continuous use in demanding installations.

Suitable for

• Single-screen video wall modules in public spaces
• Retail displays and digital signage installations
• Control rooms and professional AV environments

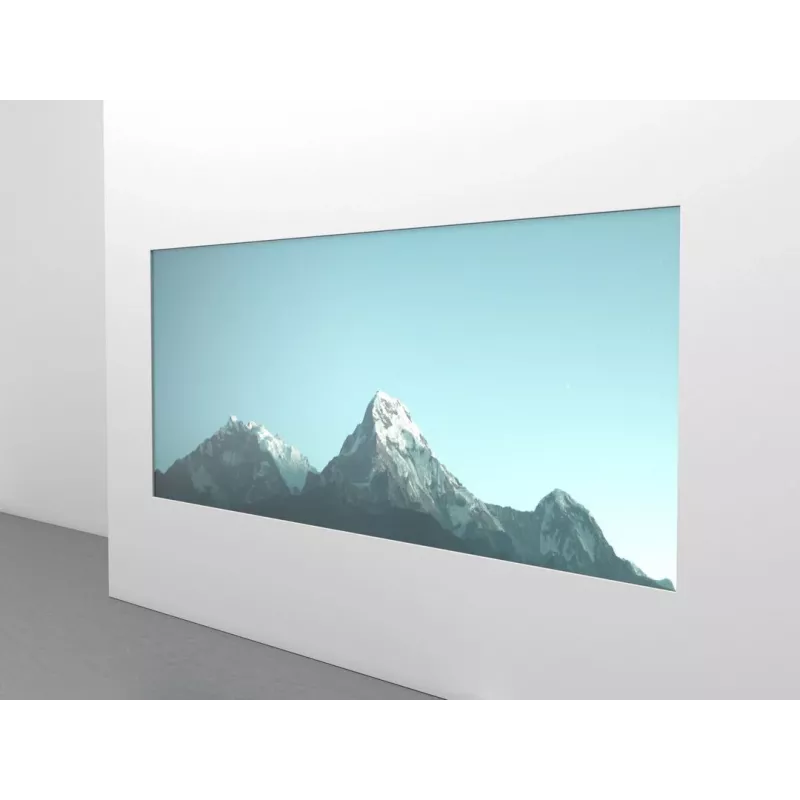

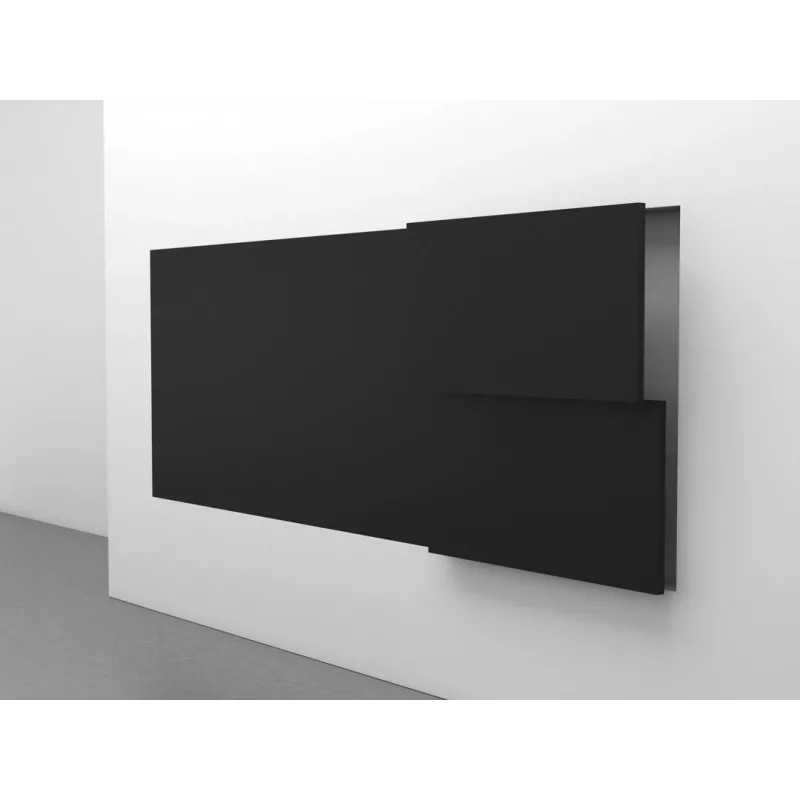

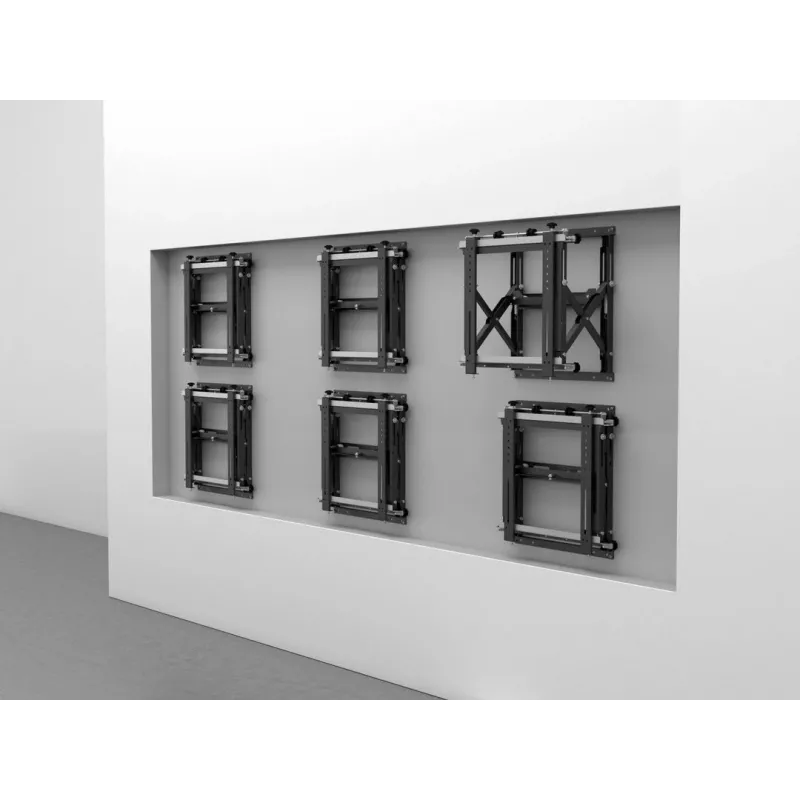

• Recessed or flush-mounted video wall setups where service access is needed

Key specifications

• Screen size compatibility: 50–95 inches
• Maximum weight capacity: 90 kg
• Maximum VESA: 400 x 400 mm
• Number of displays supported: 1
• Product weight: 14 kg
• Colour: Black

How to use

Install the mounting plate to the prepared wall structure following local building codes and using appropriate anchors for the wall type. Attach the display to the mount using compatible VESA holes up to 400 x 400 mm and ensure the display weight does not exceed 90 kg. For service, push the display outward to engage the pop-out mechanism; the scissor-arm design will extend and hold the screen in the service position. After maintenance, push the display back until it locks into place. Use the eight adjustment knobs to fine-tune depth, side-to-side position and height so each screen aligns precisely with neighboring units.

Recommendations

Use this mount on structurally sound walls capable of supporting the combined weight of the mount and display. For recessed installations allow sufficient clearance for the pop-out travel. Perform alignment adjustments after all adjacent mounts are installed to achieve precise screen-to-screen gaps. Follow the display manufacturer’s instructions for handling and safety during installation and maintenance.
