Multibrackets M Ceiling Mount Pro MBC1U

Multibrackets Pro Series M Ceiling Mount Pro MBC1U is a ready-to-install single-display ceiling mount designed for professional AV installations. Built on an ultra-flexible aluminum rail, the mount offers modular construction and integrated cable management for a clean, accessible installation. The Pro Series design allows installers to extend, reconfigure or update the mount as needs change and includes the necessary hardware for a basic installation. Finished in black with a minimalist Scandinavian aesthetic, this ceiling mount is suitable for large-screen digital signage and other public display applications.

Advantages

The Multibrackets M Ceiling Mount Pro MBC1U combines modularity and robustness, supporting a single display up to 65" and 50 kg. Its height is adjustable between 580 and 1550 mm, and it provides tilt (0–15°) and 360° swivel for flexible viewing angles. Integrated cable management runs through the system to speed installation and maintain a tidy appearance. Made from high-quality materials and supplied with standard hardware, it is designed for professional, repeatable installations.

Suitable for

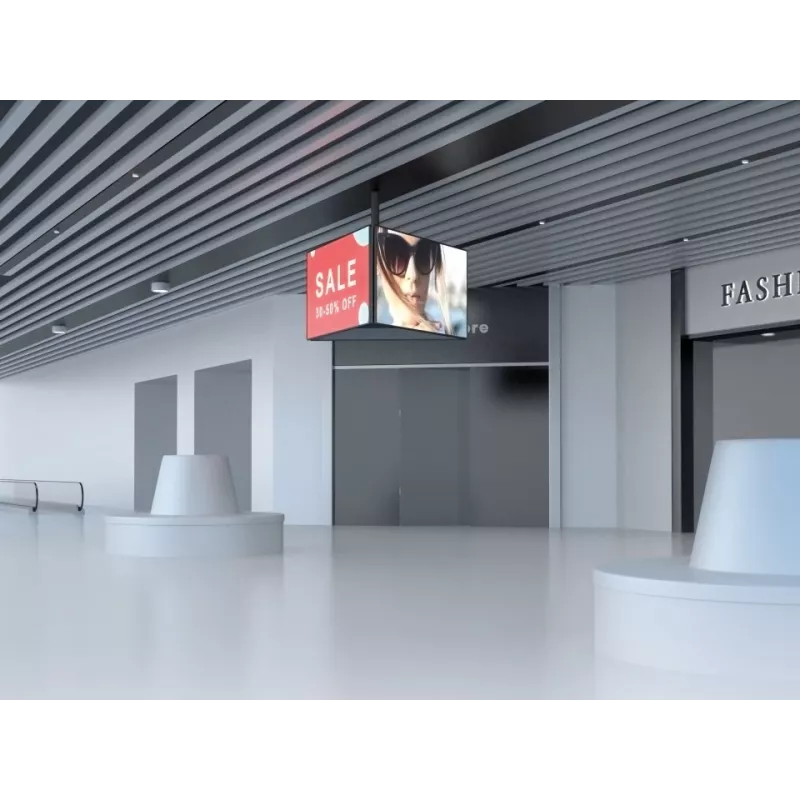

• Large-screen digital signage in public spaces
• Retail displays and showrooms
• Conference rooms and meeting areas
• Reception and lobby installations
• Temporary or permanent AV installations requiring modular reconfiguration

Key specifications

• Supported screen size: up to 65"
• Maximum weight capacity: 50 kg

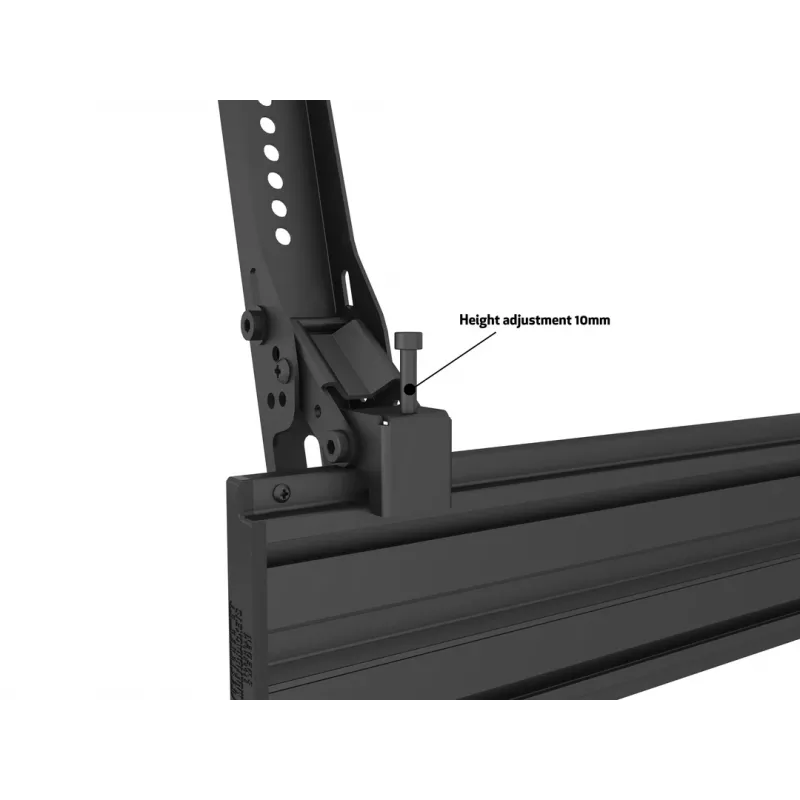

• Height adjustment range: 580–1550 mm
• Tilt angle: 0–15°
• Swivel: 360°
• VESA compatibility: 100 x 100 mm up to 800 x 600 mm
• Number of displays supported: 1
• Product colour: Black
• Weight: 8.5 kg

How to use

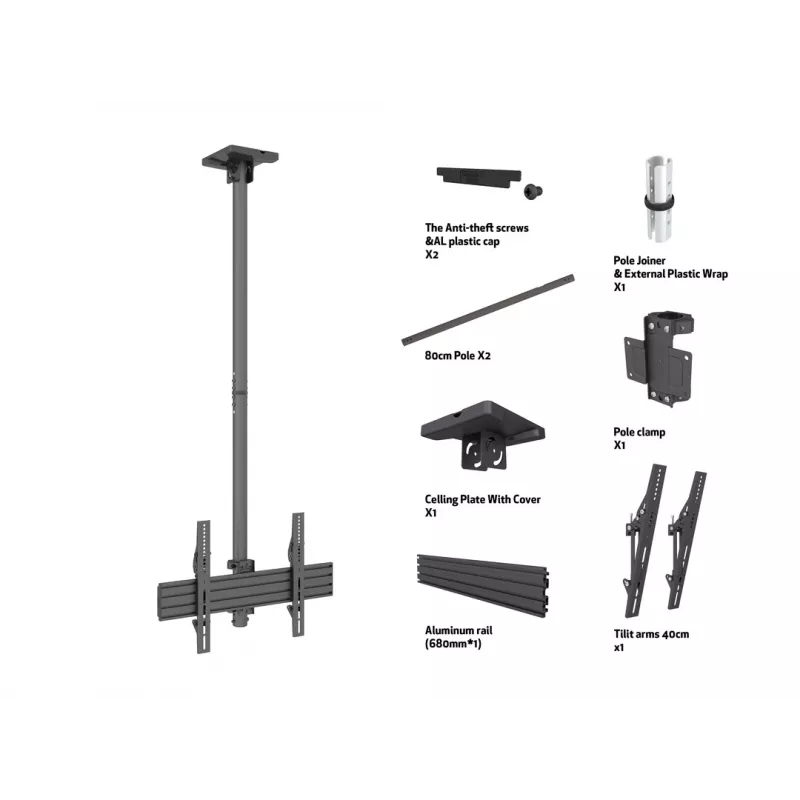

Mount the Pro MBC1U to a suitable structural ceiling point following local mounting and safety regulations. Attach the supplied rail and modular components to achieve the required length and height, route display cables through the integrated cable management channels, and secure the display using a VESA-compatible bracket within the 100 x 100 to 800 x 600 mm range. Adjust tilt and swivel to the desired viewing angle and verify that all fasteners are tightened and the installation is stable before use.

Recommendations

For safe and durable installation, ensure the ceiling structure and fixings can support the combined weight of the mount and display (maximum 50 kg). Use qualified installers for public or permanent installs and verify VESA compatibility with the display before mounting.
