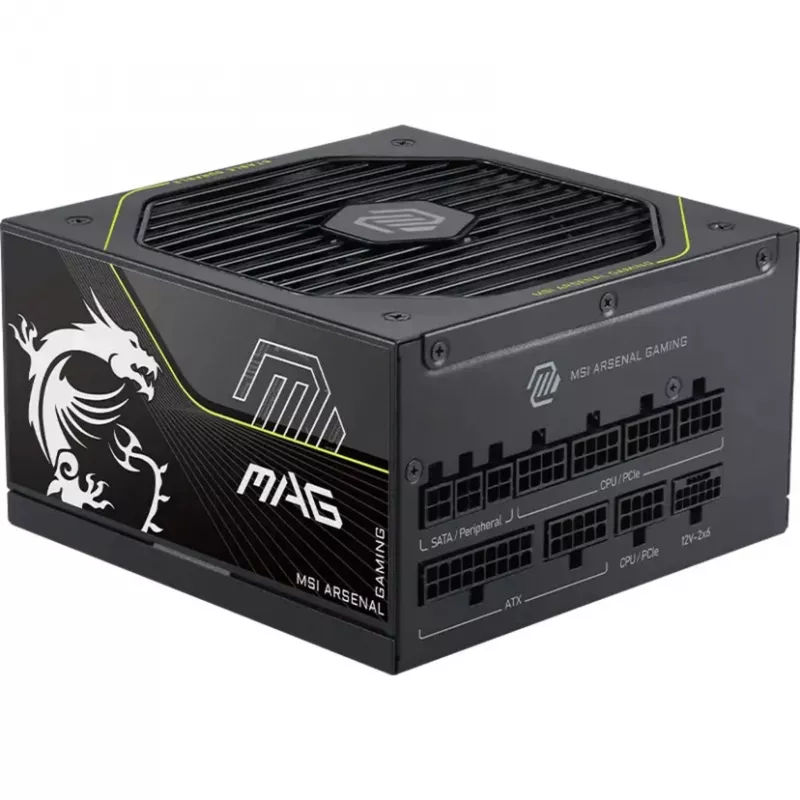

MSI MAG A1000PLS PCIE5 1000W 80 PLUS Gold Fully Modular ATX 3.0 Power Supply

The MSI MAG A1000PLS PCIE5 is a high-performance power supply designed for demanding gaming and workstation builds. With 1000W of continuous power and 80 PLUS Gold efficiency, it delivers reliable and efficient power delivery. Fully modular cabling simplifies installation and improves airflow, while ATX 3.0 and PCIe 5.0 support ensure compatibility with the latest graphics cards.

Advantages

Fully modular design reduces cable clutter and improves case airflow. 80 PLUS Gold certification ensures high efficiency, reducing heat and electricity costs. ATX 3.0 compliance with native 12VHPWR connector provides stable power to modern GPUs. 100% Japanese 105°C capacitors guarantee long-term reliability.

Suitable for

• High-end gaming PCs with powerful GPUs
• Workstations requiring stable power delivery
• Enthusiasts building with ATX 3.0 compatible components

Key specifications

• Total Power: 1000W
• Efficiency: 80 PLUS Gold
• Form Factor: ATX
• Modularity: Fully Modular
• ATX Version: ATX 3.0
• PCIe 5.0 Connector: 1x 16-pin (12VHPWR)
• Fan Diameter: 120mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• Protection Features: OCP, OVP, UVP, SCP, OPP, OTP
• MTBF: 100,000 hours
• Capacitors: 100% Japanese 105°C
• Connectors: 1x ATX 24-pin, 2x EPS 4+4 pin, 6x PCI-E 6+2 pin, 8x SATA
• +12V Rail: 83.33A

Recommendations

For a reliable and future-proof power supply, the MSI MAG A1000PLS PCIE5 is an excellent choice. Its fully modular design and high efficiency make it ideal for clean builds and long-term use.
