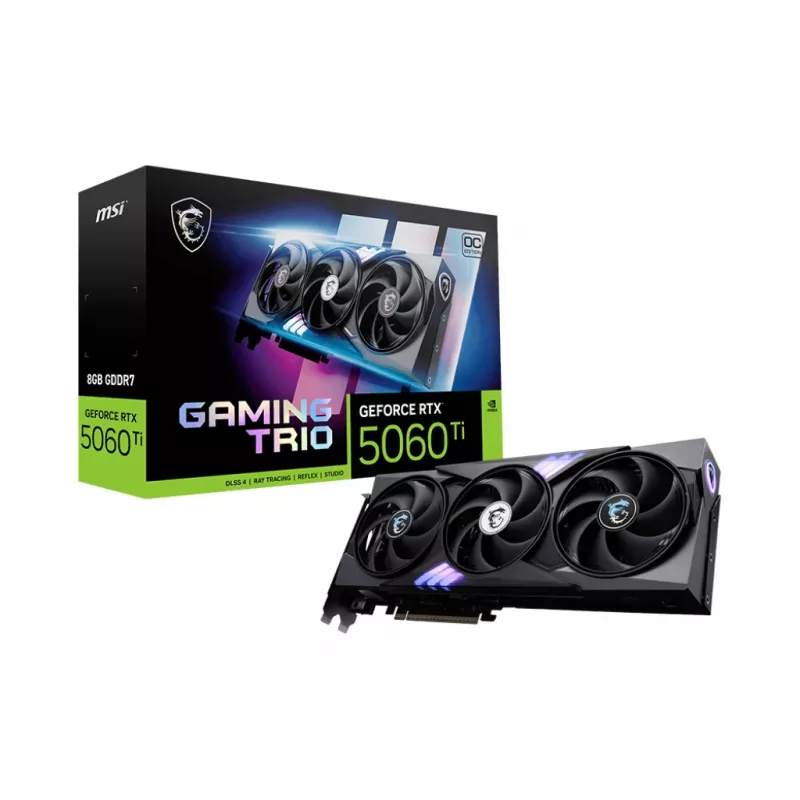

Graphics Card MSI GeForce RTX 5060 Ti 8G GAMING TRIO OC — 8 GB GDDR7, 128-bit, PCIe 5.0, 3-fan

MSI GeForce RTX 5060 Ti 8G GAMING TRIO OC is a discrete graphics card designed for gaming and content creation. It is built on NVIDIA architecture with 8 GB GDDR7 memory on a 128-bit bus and connects via PCIe 5.0 x16. The card supports resolutions up to 7680×4320, DirectX 12 Ultimate and OpenGL 4.6, and uses an active triple‑fan cooling system to maintain thermal control under load.

Advantages

The GAMING TRIO series combines a reinforced cooler design and advanced airflow control to deliver effective heat dissipation and quieter operation. RGB lighting with a diffused cover provides a restrained aesthetic. Included software tools allow real‑time monitoring and tuning: MSI Center for system optimization and AI‑assisted tuning, and Afterburner for precise overclocking and monitoring. The triple‑fan layout, nickel‑plated copper baseplate and metal backplate improve heat transfer and structural rigidity.

Suitable for

• High‑refresh gaming at 1080p and 1440p
• Content creation workflows such as video editing and rendering
• Driving high‑resolution displays up to 8K for multimedia and professional use

Key specifications

• GPU architecture: NVIDIA Blackwell
• Memory: 8 GB GDDR7 on a 128‑bit bus
• Interface: PCI Express 5.0 x16
• Maximum supported resolution: 7680 × 4320

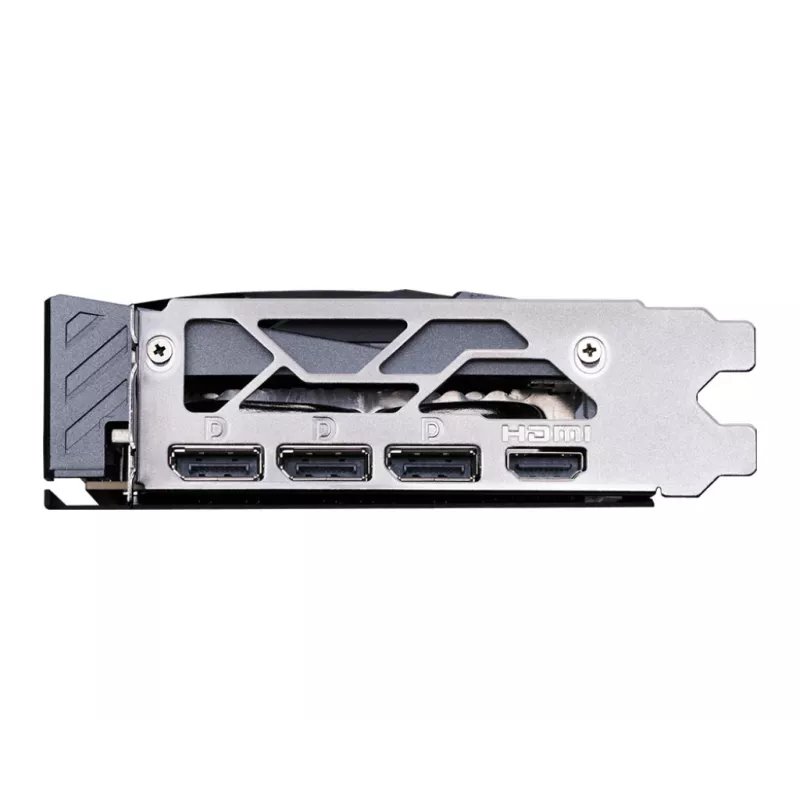

• Video outputs: 1 × HDMI, 3 × DisplayPort
• DirectX / OpenGL: DirectX 12 Ultimate, OpenGL 4.6

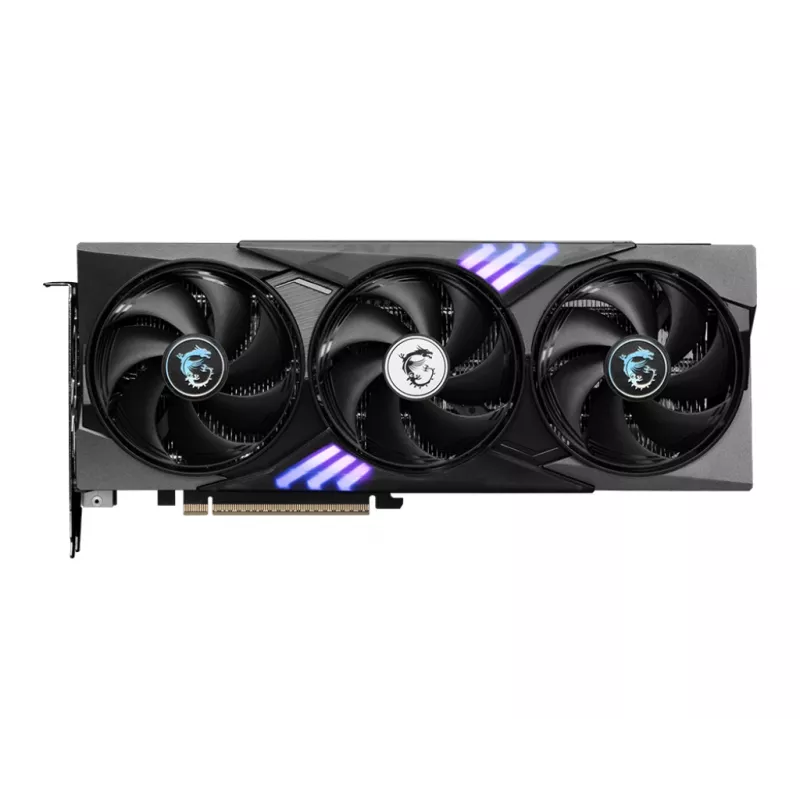

• Cooling: Triple‑fan TRI FROZR 4 thermal design with upgraded fans and airflow control

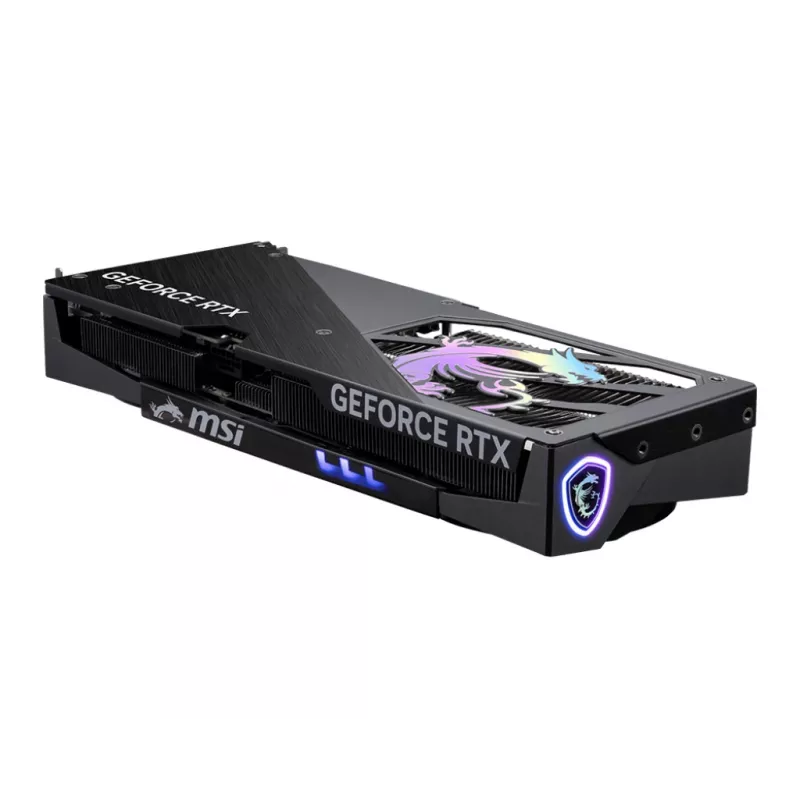

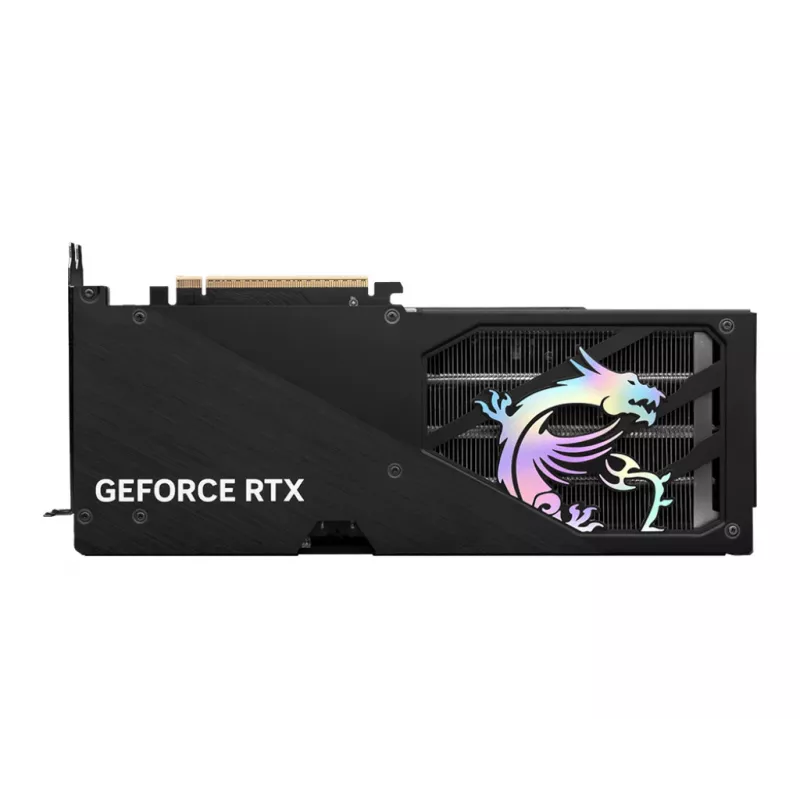

• Cooling features: Nickel‑plated copper baseplate, square core pipes, metal backplate with vents, wave‑curved fins and optimized fin geometry
• Power consumption and connector: ~180 W, 1 × 16‑pin power connector

How to use

Install the card into a free PCIe x16 slot on a compatible motherboard and connect the required 16‑pin power cable from a PSU that meets the card's power requirements. Install the latest drivers from NVIDIA or MSI and optional MSI Center and Afterburner software to monitor temperatures, adjust fan curves and apply performance profiles. Ensure the PC case has adequate airflow and that the card is secured to the chassis.

Recommendations

For stable operation, use a power supply with sufficient headroom above the card's rated power, keep system drivers up to date, and maintain case airflow. Use MSI Center for system optimization and Afterburner for controlled overclocking; monitor temperatures when applying aggressive settings.
