MOZA SR-P Pedal (Clutch) — Wired USB gaming clutch pedal, pressure + angle sensors, aluminium and steel housing, black

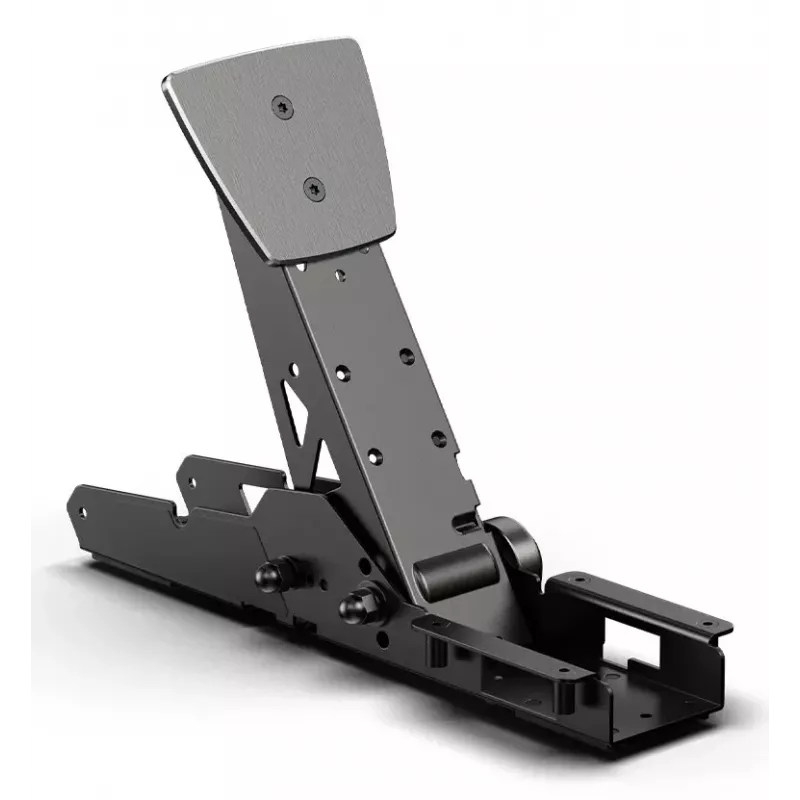

The Moza Racing SR-P Pedal (Clutch) is a floor-mounted organ-type sim racing pedal built from aluminium and high-strength steel. It uses a combination of angle and pressure sensing for braking input and connects directly to a PC via USB for calibration and configuration in the Moza Pit House software. The pedal features a detachable design, adjustable spacing and multiple mechanical tuning options to simulate realistic foot feel.

Advantages

The SR-P pedal combines a 16-bit high-precision magnetic encoder with a high-precision pressure sensor rated up to 75 kg, delivering fine resolution and stable input compared with typical Hall sensors. A dual sensor fusion algorithm blends angle-based control at the initial travel with pressure-based control in mid and end travel for more accurate braking modulation. Mechanical design elements — including a braking spring and damping block — provide configurable stiffness and damping to better mimic real pedal feedback. The pedal is wired via USB for direct PC connection and supports full calibration through Moza Pit House.

Suitable for

• PC sim racing setups
• Users seeking adjustable braking feel and high-resolution input
• Drivers who need a floor-mounted organ-style accelerator and detachable pedal faces

Key specifications

• Sensor types: pressure sensor (up to 75 kg) and angle sensor
• Encoder: 16-bit high-precision magnetic encoder (65,536 PPR resolution)
• Mounting: floor-mounted organ-type design; detachable pedal faces
• Materials: aluminium housing and high-strength steel components
• Connectivity: wired USB (USB Type-A to USB Type-B cable included)
• Adjustability: adjustable pedal spacing; interchangeable springs and damper for different pedal feels
• Compatibility: configurable via Moza Pit House software for PC
• Finish: black

How to use

Install the SR-P pedal on a flat surface or attach it to a compatible professional bracket using the detachable pedal mounts. Connect the pedal to a PC using the supplied USB Type-A to USB Type-B cable. Launch Moza Pit House to calibrate sensors, set pedal output curves and adjust spacing. Use the supplied and optional springs and damping block to achieve the desired initial stiffness and final braking feel. The anti-slip mat on the pedal base helps keep the unit stable when used without a bracket.

Recommendations

Use the angle sensor primarily for fine initial pedal control and rely on the pressure sensor for mid-to-final travel braking modulation. For tighter braking response, install stiffer springs and the included damping block; for smoother initial travel, choose a softer spring. Always calibrate the pedal in Moza Pit House after mechanical changes.
