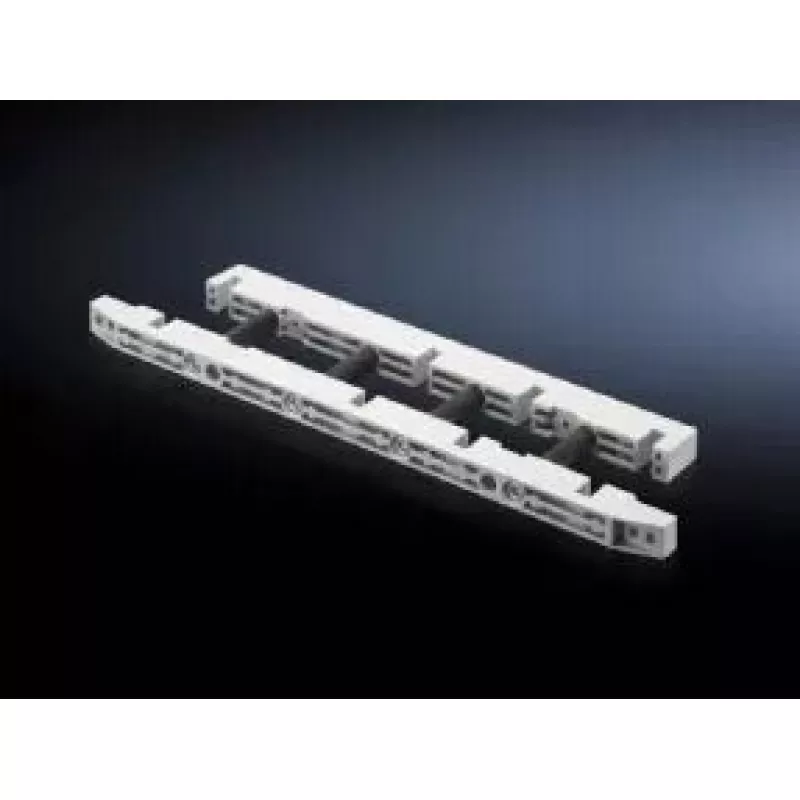

Mounting profile Rittal SV 9674.416, grey, 60 mm x 10 mm, 1 pc

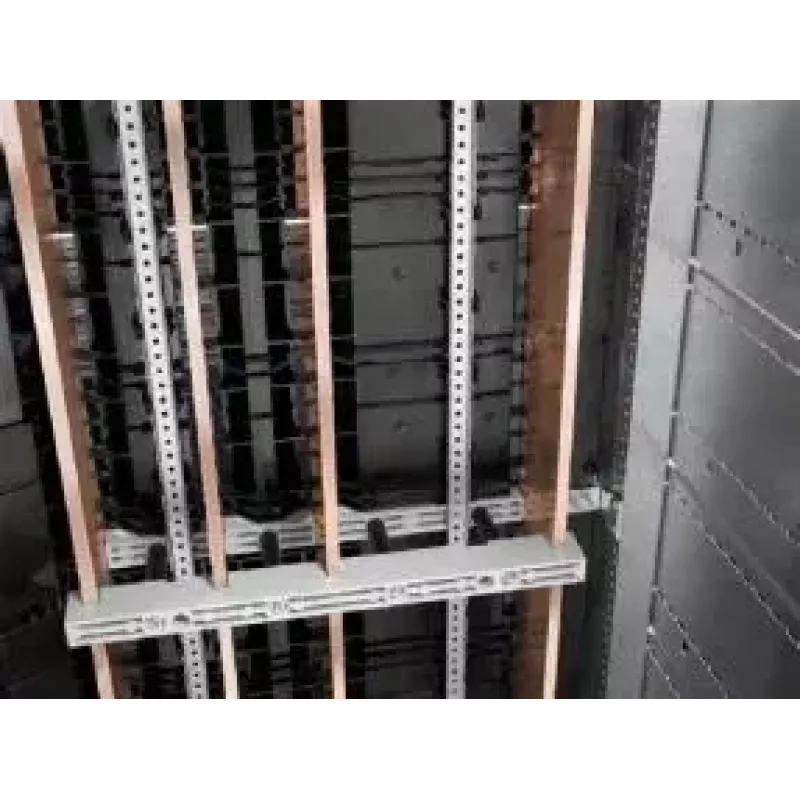

Rittal SV 9674.416 mounting profile in grey is a compact, straight structural profile with cross-section dimensions of 60 mm width by 10 mm height, supplied as a single piece. It is intended for use inside electrical enclosures and cabinets to provide support for mounted components, to serve as a routing channel for cables or to act as a mechanical fixing surface where limited depth is available. The profile is designed to integrate with typical enclosure installations and supports space-efficient arrangement of parts.

Advantages

The profile combines a slim 60 mm by 10 mm cross-section with sufficient stiffness for light to medium mounting tasks. Its uniform grey finish provides a neutral appearance suitable for industrial and utility environments. Supplied as a single piece with a compact net package weight, the profile is easy to handle and position during assembly. The profile's geometry allows simple fastening and alignment with common enclosure mounting methods.

Suitable for

Key specifications

How to use

Install the mounting profile at the required position inside the enclosure using appropriate fasteners compatible with the enclosure material and the profile cross-section. Align the profile to ensure straight runs and secure both ends to provide stable support. Attach components, cable ties, clamps or brackets to the profile using screws, rivets or suitable clips, taking care to follow the component manufacturer's mounting instructions. Verify clearances and grounding requirements where electrical continuity or earthing is necessary.

Recommendations

For reliable performance, select fastening hardware that matches the enclosure material and the load applied to the profile. Inspect mounted elements after installation to confirm mechanical stability and to ensure cables are routed without sharp bends or undue strain.
