Mounting kit Supermicro MCP-290-00059-0B Brushed steel

The Supermicro MCP-290-00059-0B mounting kit is a brushed-steel rail set with quick-release handles designed for 4U tower-to-rack installations. It supports rail lengths from 26.5" to 36.4" and is intended for use with compatible Supermicro 4U chassis and servers, enabling secure mounting in standard server racks.

Advantages

Constructed from durable brushed steel, the kit offers stable support and corrosion resistance appropriate for server environments. Quick-release handles allow tool-free insertion and removal of the chassis, simplifying maintenance. The adjustable rail length accommodates different rack depths, improving compatibility with a range of Supermicro 4U systems.

Suitable for

• Mounting 4U Supermicro chassis in standard server racks
• Server rooms and data center installations
• Systems requiring quick access for maintenance or replacement
• Environments where adjustable rail length is needed to fit various rack depths

Key specifications

• Material: Brushed steel
• Compatible chassis height: 4U
• Rail length range: 26.5" to 36.4" (adjustable)
• Includes quick-release handles for tool-free operation
• Designed for use with compatible Supermicro 4U chassis and servers

How to use

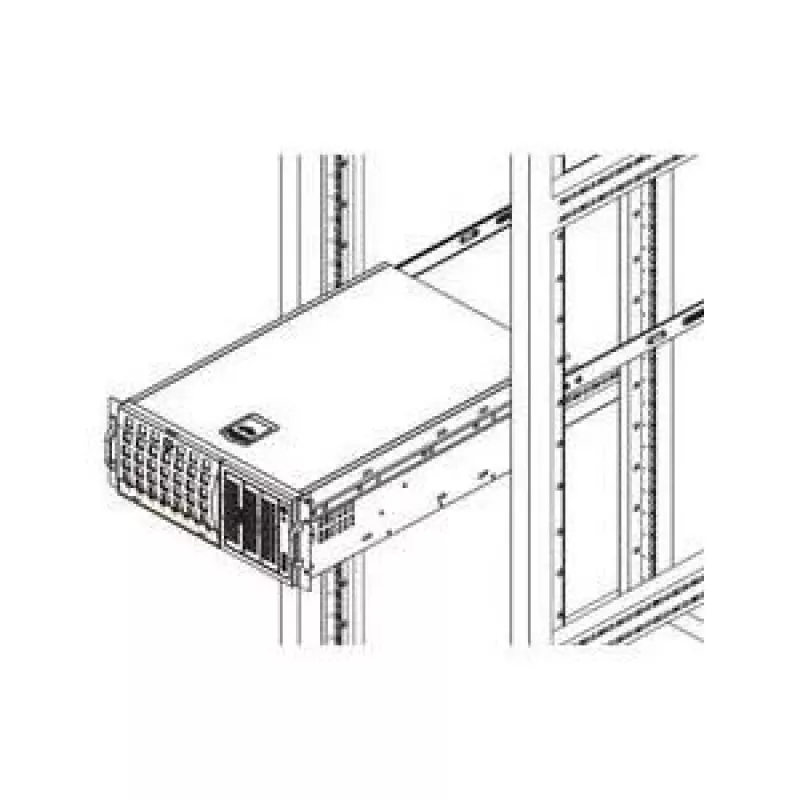

Install the rail set into the rack by aligning and securing the inner and outer rail sections to the rack posts according to rack unit positions. Attach the rails to the chassis sides, ensuring quick-release handles are engaged. Slide the chassis into the rack along the rails until it seats; use the handles to release and remove the chassis when needed. Follow rack- and chassis-specific instructions for screw placements and safety procedures.

Recommendations

Verify compatibility with your specific Supermicro chassis model before installation and ensure rack depth falls within the 26.5"–36.4" range. Use appropriate fastening hardware for your rack type and observe static-safety and weight-handling guidelines when mounting servers.
