Mounting kit Alphacool 1022216 Brass Black 19.7mm

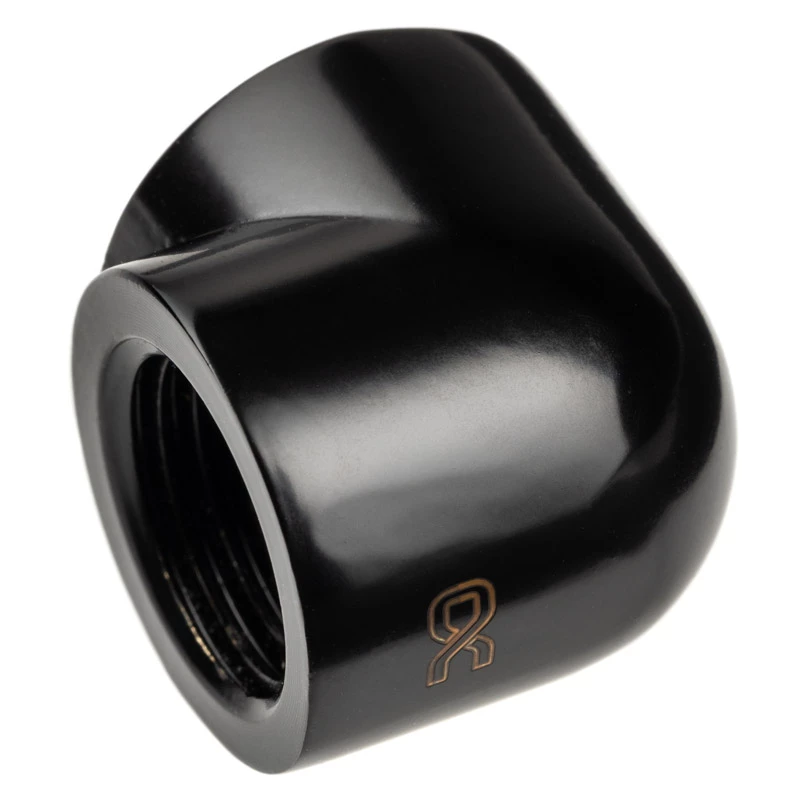

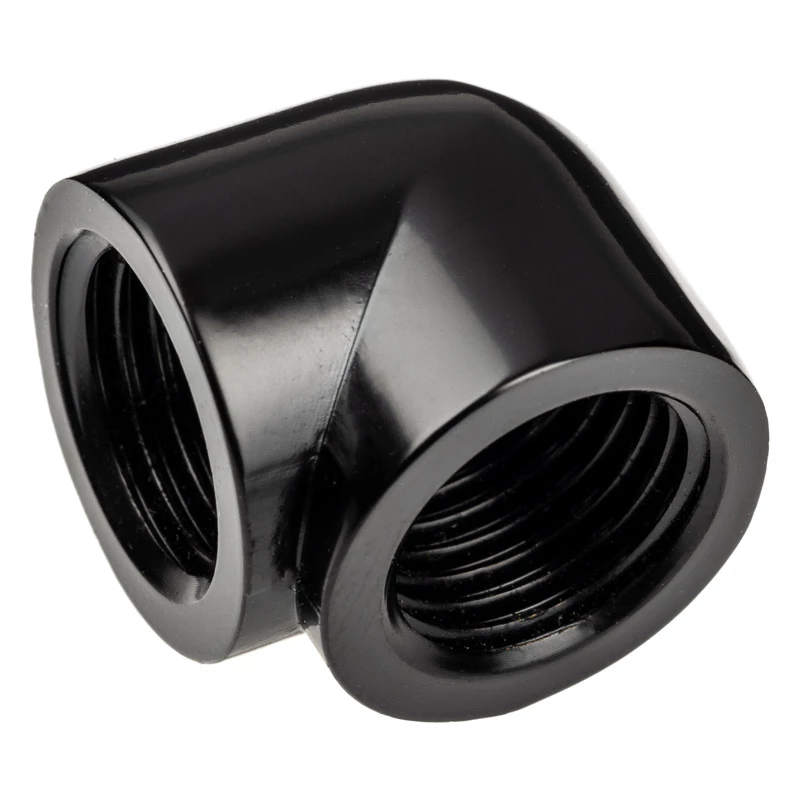

The Alphacool Eiszapfen 20mm L-connector G1/4" IT to G1/4" IT is a compact 90° elbow with two G1/4" female threads designed for easy integration into liquid cooling loops. Constructed from brass with a black finish, the 19.7mm connector provides a space-saving solution for routing coolant between components in a water loop.

Advantages

The L-connector features two G1/4" female threads and 5mm deep threading that enable a very compact design. Its brass construction offers durability and reliable mechanical connection, while the black finish provides a neutral appearance that fits most system builds. The connector can be installed at any position in the loop by screwing it directly into corresponding G1/4" ports.

Suitable for

• Custom PC liquid cooling loops
• Connecting blocks, radiators or pumps with G1/4" ports
• Tight internal layouts where a 90° compact elbow is required

Key specifications

• Type: 90° L-connector (elbow) with two female threads
• Thread standard: G1/4" (two female G1/4" IT ports)
• Material: Brass
• Finish: Black
• Effective size / length: 19.7 mm
• Thread depth: 5 mm

How to use

Screw the Alphacool L-connector into the corresponding G1/4" female or male ports on your cooling components. Ensure threads are engaged correctly and tightened securely by hand or with a suitable tool, avoiding over-tightening to prevent damage. Position the elbow to achieve the desired 90° routing and connect the adjacent components of the water loop.

Recommendations

Check compatibility with existing G1/4" fittings before installation. Use appropriate sealing methods if needed and inspect connections for leaks after filling the loop. When working in confined spaces, fit the connector first and then attach adjacent components to ensure proper alignment.
