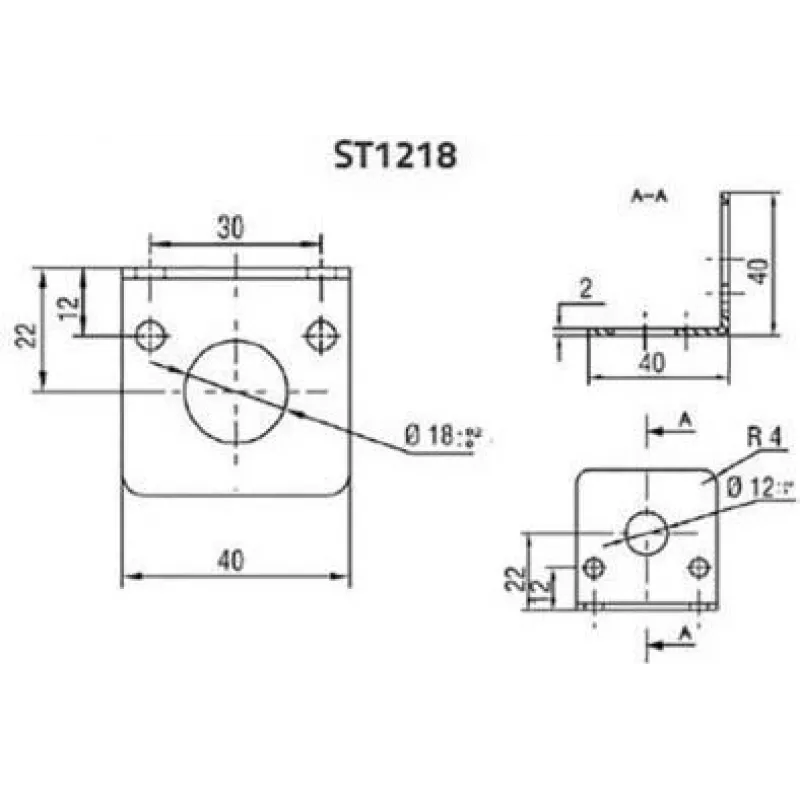

Mounting Holder Datalogic ST-1218, dimensions 40×40×40 mm

The Datalogic ST-1218 mounting holder is a compact cubic bracket measuring 40×40×40 mm, designed to provide a stable support for compatible sensors and small devices. Its simple geometry and standardized dimensions make it easy to integrate into industrial workstations, retail counters, or automation panels where precise positioning and reliable mechanical fixation are required. The holder supports repeatable alignment and helps maintain the intended field of view for mounted scanners and peripherals.

Advantages

The holder offers a small footprint that suits tight installation spaces while delivering robust mechanical support. Its cubic shape and fixed dimensions simplify alignment and reduce installation time. The unit is engineered for straightforward attachment and stable fixation, minimizing vibration and movement once mounted. Using a dedicated mounting holder helps protect the sensor from accidental displacement and facilitates maintenance by providing a repeatable mounting point.

Key specifications

• Outer dimensions: 40 × 40 × 40 mm
• Form factor: cubic mounting bracket
• Material: compatible with industrial mounting (rigid support)
• Mounting type: fixed bracket for secure attachment of small devices
• Compatibility: designed for use with compatible Datalogic sensors and similar-sized devices

How to use

Position the mounting holder at the planned location and secure it to the mounting surface using appropriate fasteners for the surface material. Attach the sensor or device to the holder ensuring correct orientation and alignment with the target area. Tighten the fixing hardware to prevent movement but avoid overtightening which could stress the device or holder. After installation, verify the sensor’s field of view and make fine adjustments if necessary to achieve the required detection or scanning performance.

Recommendations

Install the holder on a stable, vibration-free surface and use suitable screws or anchors for the substrate. Check environmental compatibility (temperature, humidity, exposure) of both the holder and the mounted device. Periodically inspect mounting points for loosening and re-align if required to maintain optimal performance.
