Mounting bracket Rittal AX 2503.020

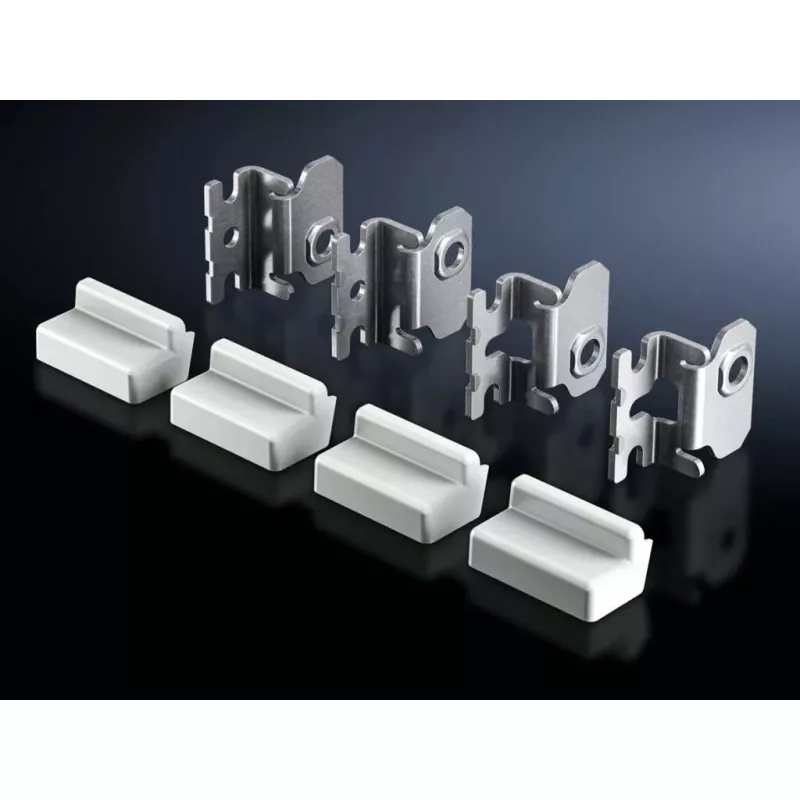

The Rittal AX 2503.020 mounting bracket is a steel support component designed for secure installation of wall-mounted enclosures. Finished in grey and white, the pack contains four identical brackets suitable for single-person assembly and installations in confined spaces.

Advantages

Made from durable steel for long-term load-bearing performance, the bracket offers a two-tone grey and white finish that matches common enclosure styles. Supplied in a set of four, it simplifies planning and ensures consistent mounting points. The design supports straightforward one-person assembly and installation in tight or restricted areas.

Suitable for

Key specifications

How to use

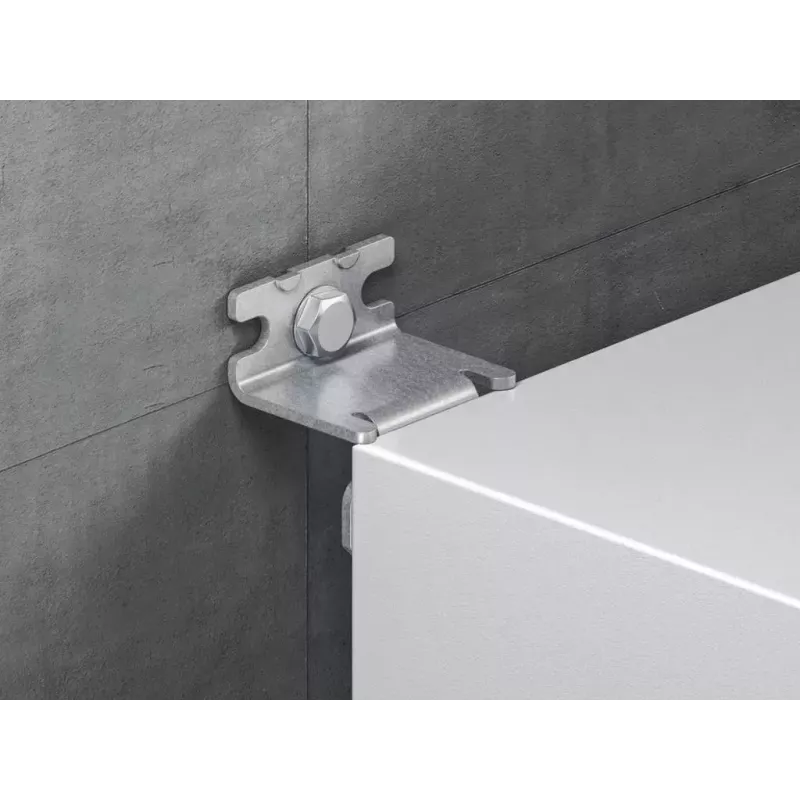

Position the bracket on the intended wall surface aligned with the enclosure mounting points, mark and drill fixing holes according to the enclosure's template, then secure each bracket with appropriate fasteners for the wall material. Attach the enclosure to the brackets and verify alignment and stability before completing any internal wiring or operation.

Recommendations

Use appropriate wall anchors and corrosion-resistant fasteners matched to the wall material and load. Follow Rittal enclosure mounting guidelines and local safety regulations when performing installation and maintenance.
