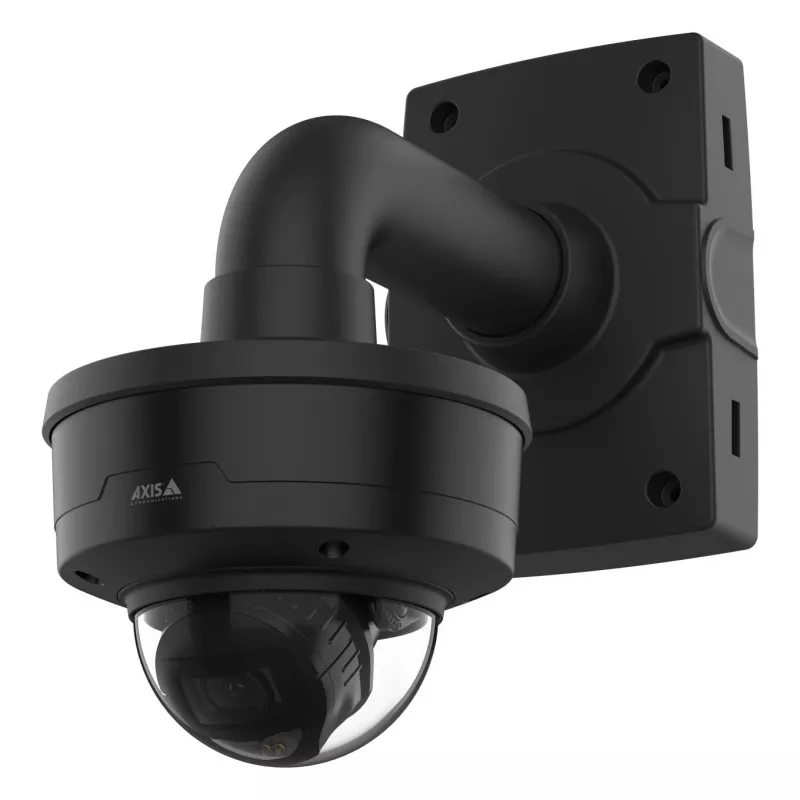

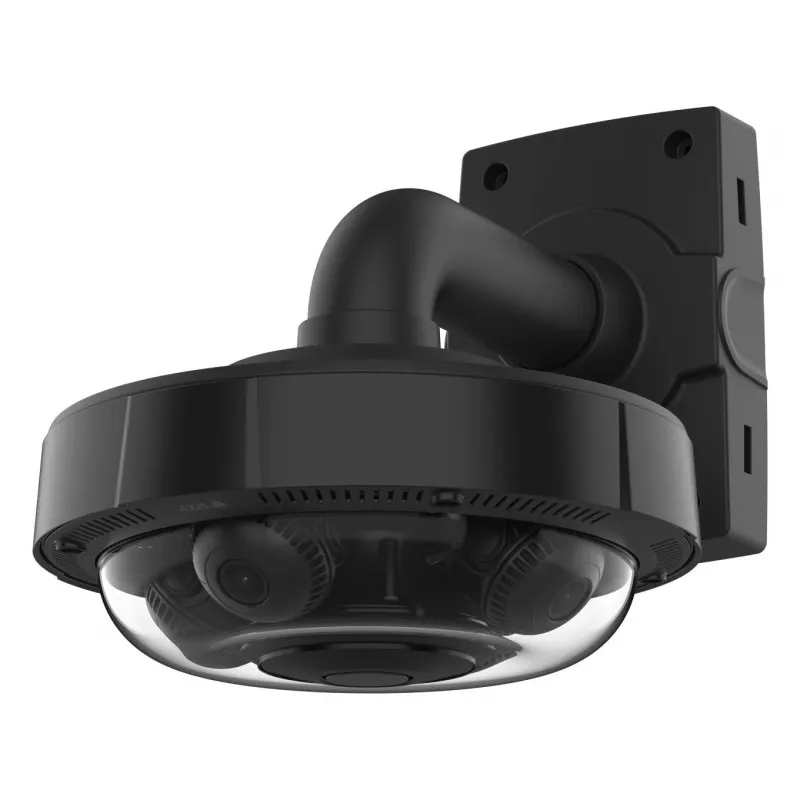

Mount Axis TP3004-E Black Universal 15 kg Capacity

AXIS TP3004-E Wall Mount Black 1.5" NPS is a universal mounting solution for Axis fixed dome pendant kits and ACI ¾" conduit adapters. It supports a maximum load of 15 kg and has compact dimensions (137.2 mm width × 244.2 mm depth × 196.1 mm height). Cables can be routed through the back or from the side via a conduit connection, and the black finish allows unobtrusive installation in different environments.

Advantages

The mount is compatible with Axis fixed dome pendant kits and ACI ¾" conduit adapters, offering flexible cable routing options through the back or side conduit entry. Its 15 kg load capacity accommodates a wide range of dome cameras, while the compact black design fits diverse indoor and outdoor installations. The product’s standard NPS connection ensures straightforward integration with existing pendant accessories.

Suitable for

• Mounting Axis fixed dome pendant cameras
• Installations requiring conduit cable routing (ACI ¾" adapters)
• Indoor and outdoor CCTV setups where a compact black mount is needed

Key specifications

• Model: AXIS TP3004-E Wall Mount Black
• Connection: 1.5" NPS
• Conduit compatibility: ACI ¾" conduit adapters
• Maximum load: 15 kg
• Dimensions: 137.2 mm (W) × 244.2 mm (D) × 196.1 mm (H)
• Color: Black
• Brand/MPN/EAN: AXIS / 02923-001 / 7331021086463

How to use

Attach the AXIS TP3004-E to a suitable wall surface using appropriate anchors and fasteners for the substrate. Connect the pendant kit to the 1.5" NPS thread and, if required, fit an ACI ¾" conduit adapter for side conduit entry. Route camera cables either through the back opening or into the conduit on the side, then secure all connections and verify the mount is stable before installing the camera.

Recommendations

Use corrosion-resistant fasteners for outdoor installations, verify the combined weight of camera and accessories does not exceed 15 kg, and ensure conduit adapters are properly sealed against moisture when used outdoors.
