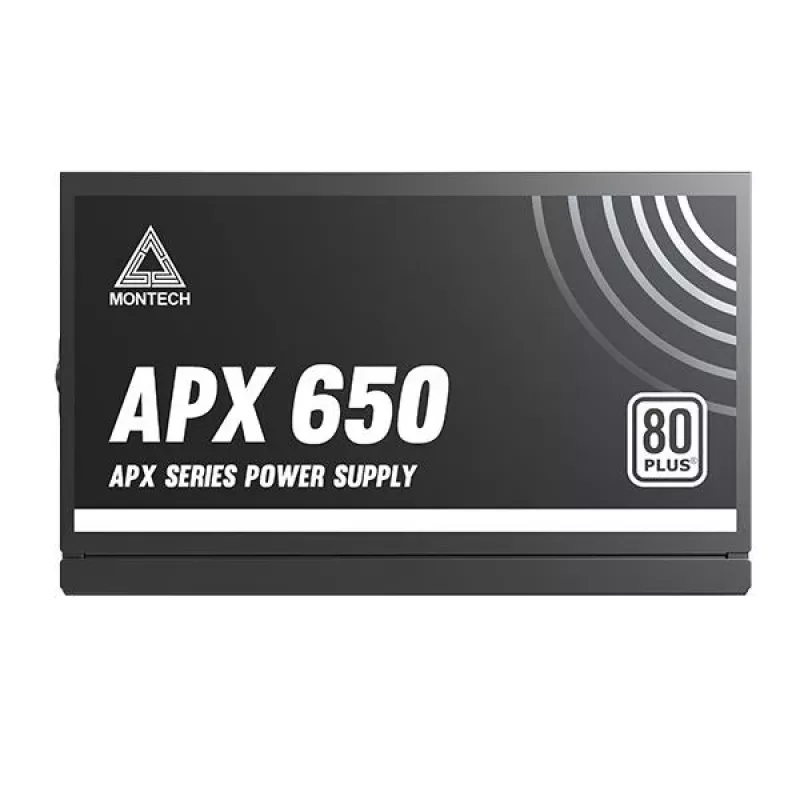

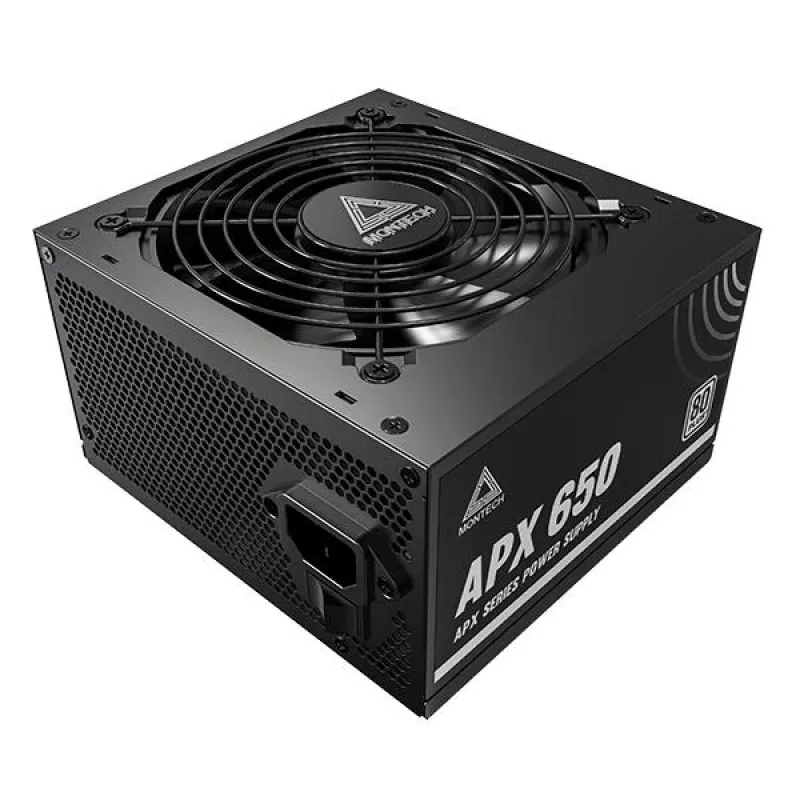

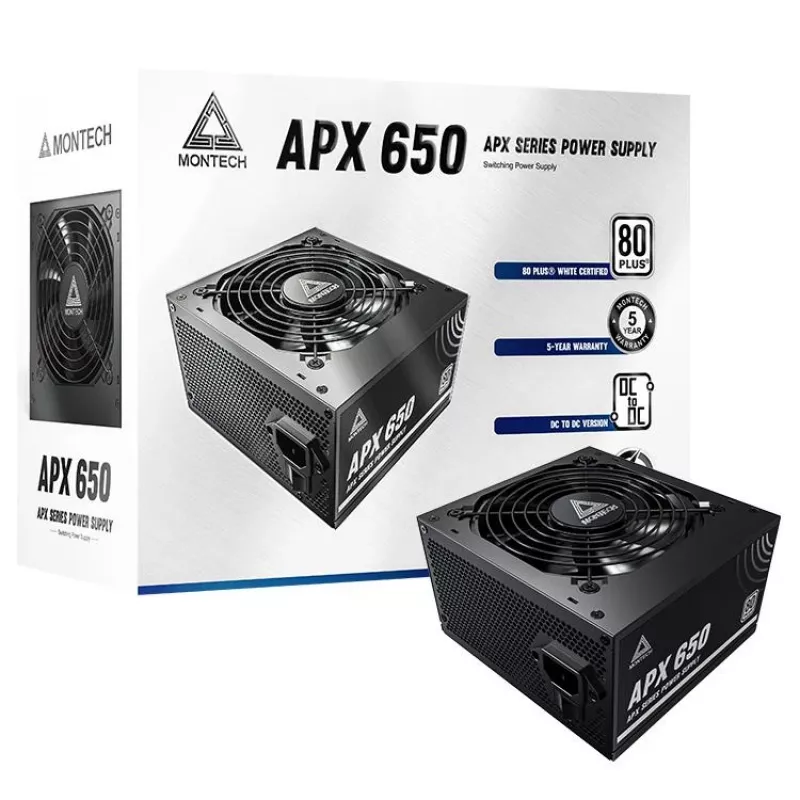

Montech APX650 power supply unit 650 W 20+4 pin ATX ATX Black

The Montech APX650 power supply unit delivers 650 W of continuous power in a standard ATX form factor. Designed for desktop PC builds, it provides a 20+4 pin ATX motherboard connector, universal AC input (100–240 V, 50/60 Hz) and an integrated 120 mm cooling fan. The PSU is finished in black and carries multiple compliance certificates (CB, CE, EAC, FCC, RCM, RoHS, UKCA, cTUVus). The unit is certified 80 PLUS White to indicate basic efficiency performance under typical loads.

Advantages

The Montech APX650 combines a compact ATX layout with a 650 W continuous power rating suitable for mainstream systems. Its universal AC input supports worldwide voltages and frequencies without manual switching. The built-in 120 mm fan balances airflow and noise for everyday desktop operation. Multiple safety and emissions certifications ensure compatibility with regional regulatory requirements.

Suitable for

• Home and office desktop computers with mid-range components
• Small form factor ATX-compatible builds requiring a 20+4 pin motherboard connection
• System upgrades that need a reliable 650 W PSU with basic efficiency certification

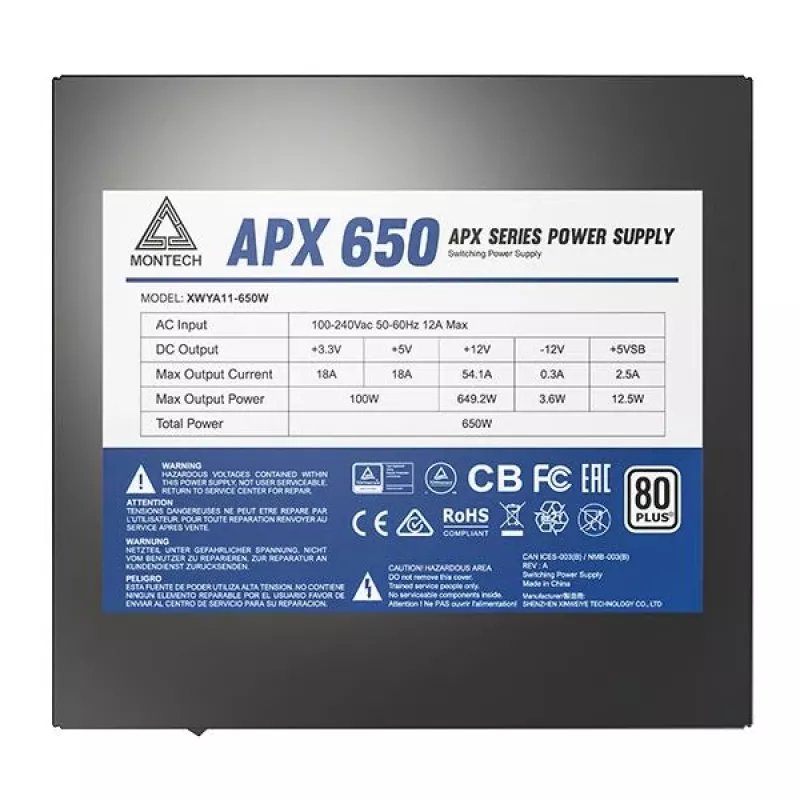

Key specifications

• Total power: 650 W continuous output
• Motherboard power connector: 20+4 pin ATX
• AC input voltage: 100–240 V
• AC input frequency: 50/60 Hz
• Form factor: ATX
• Efficiency certification: 80 PLUS White

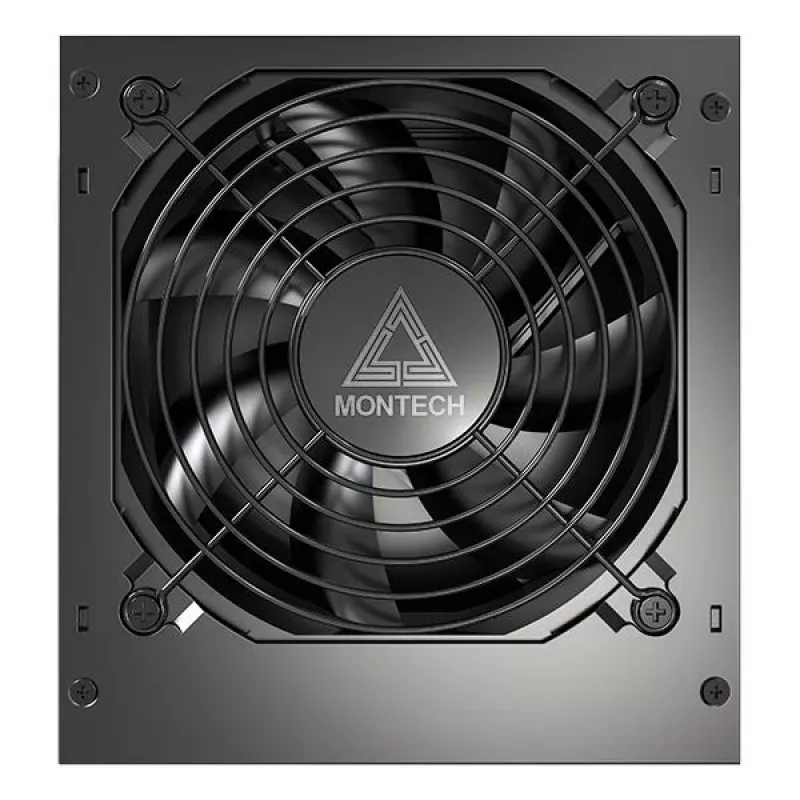

• Cooling: single 120 mm fan
• Colour: Black
• Compliance: CB, CE, EAC, FCC, RCM, RoHS, UKCA, cTUVus

How to use

Install the Montech APX650 into an ATX-compatible case aligning the mounting holes and secure the PSU with the provided screws. Connect the 20+4 pin ATX connector to the motherboard main power socket and attach any additional peripheral cables required by your components (check connectors available on the unit). Ensure the PSU switch is set to the correct position if present and connect the AC power cord to a properly grounded outlet supporting 100–240 V. Power on the system and verify stable operation and fan activity.

Recommendations

For reliable operation, use the Montech APX650 in well-ventilated cases with unobstructed airflow to the 120 mm fan. Match the PSU capacity to your system’s total power draw, avoid overloading by checking component power requirements, and ensure cables are routed to prevent strain on connectors. Periodically inspect for dust accumulation around the fan and vents and clean with compressed air while the unit is powered off and unplugged.
