Monitor Mount Ergotron LX Series 45-490-216

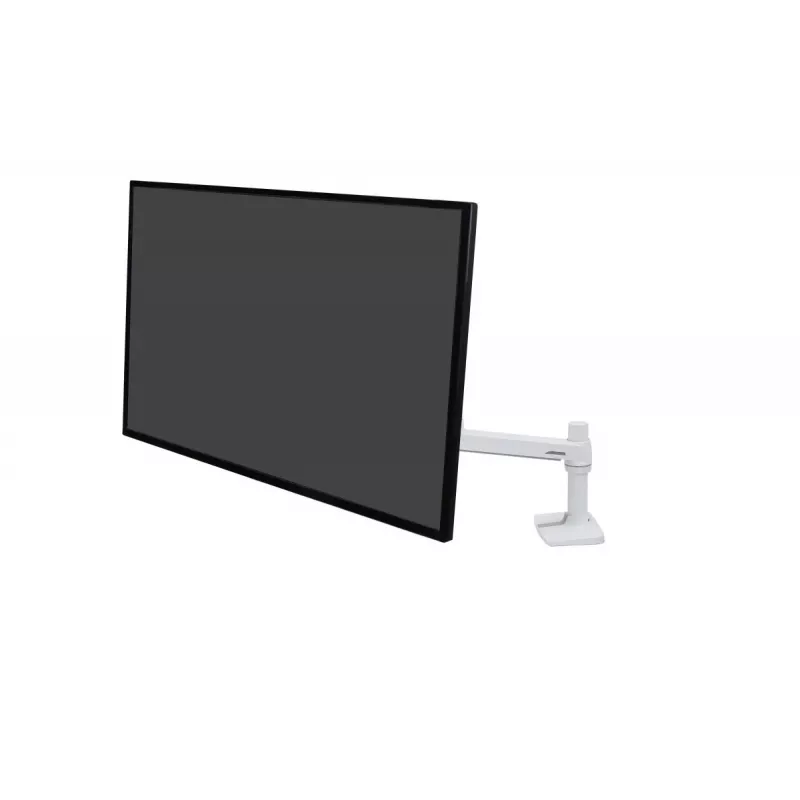

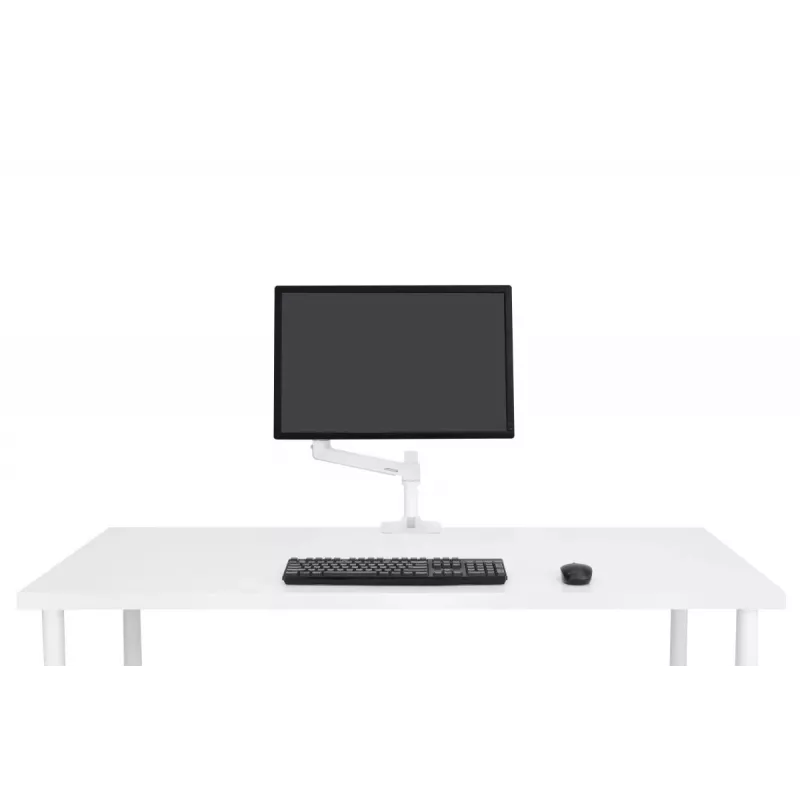

The Ergotron LX Series 45-490-216 monitor mount supports single displays up to 34" (86.4 cm) and a maximum weight of 11.3 kg. Its white finish and compact footprint help save desk space while allowing flexible positioning of your screen using Ergotron's Constant Force™ Technology.

Advantages

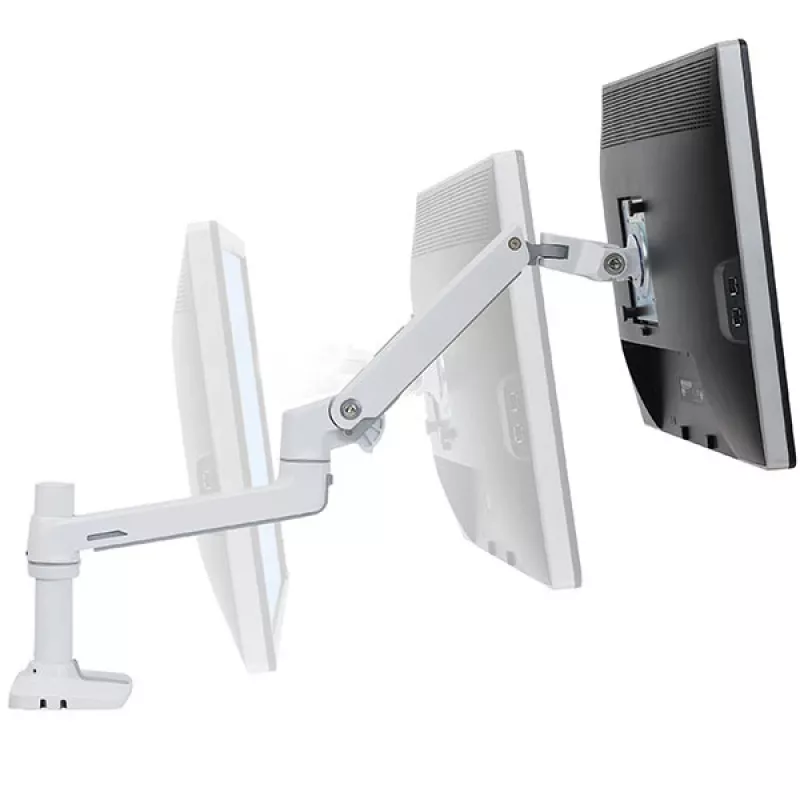

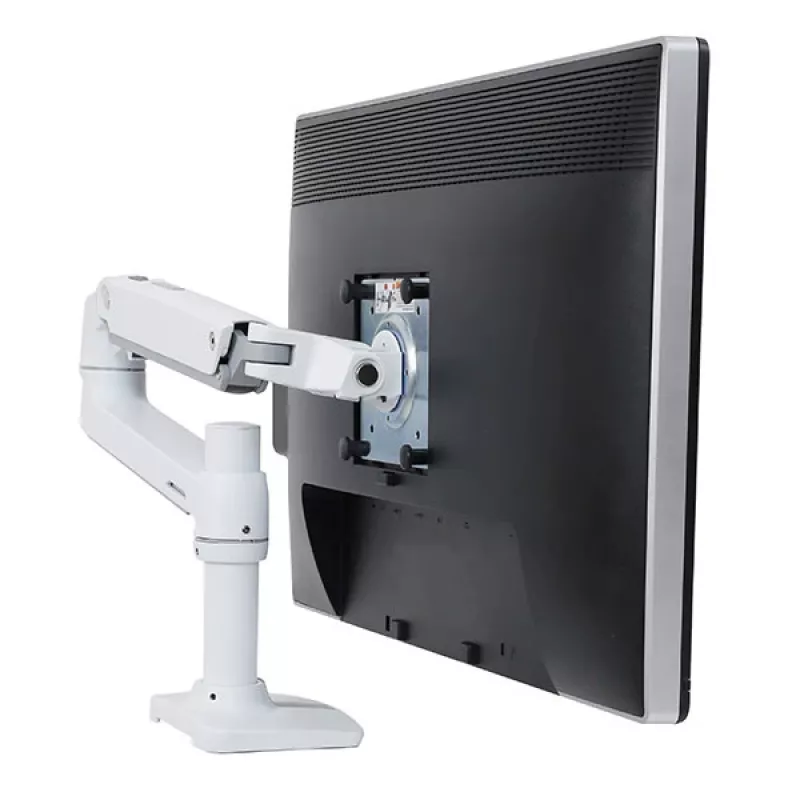

This LX Series monitor arm provides smooth, tool-free height adjustment and a broad tilt range to achieve comfortable viewing angles. It folds and swings aside to free up workspace when the screen is not in use. Compatible with VESA 75 x 75 mm and 100 x 100 mm patterns, the mount fits a wide range of monitors while maintaining a clean, modern appearance.

Suitable for

• Home office setups with limited desk space

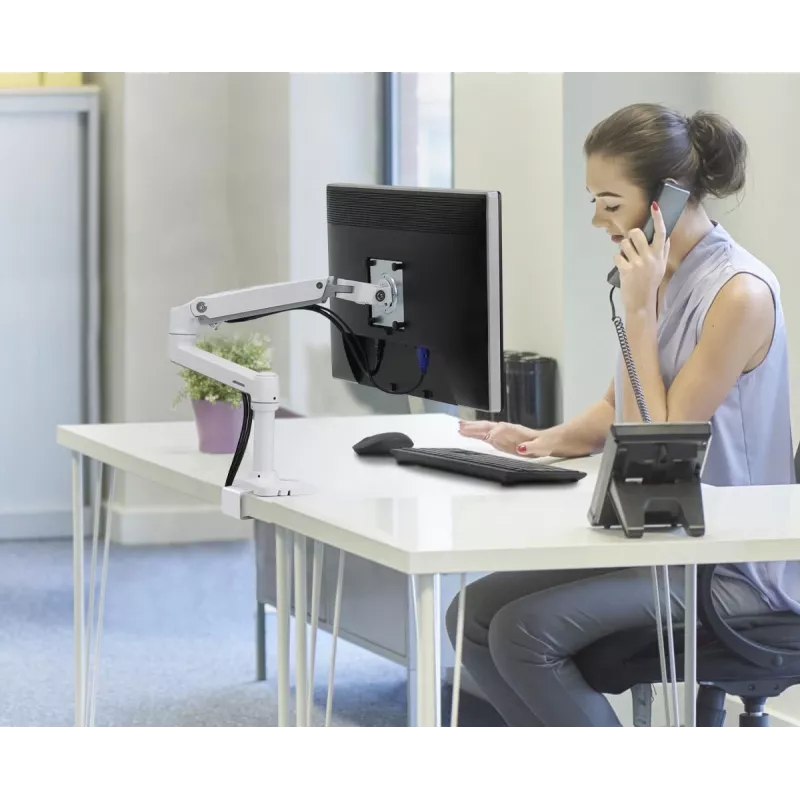

• Corporate workstations requiring ergonomic screen positioning
• Creative and design desks where adjustable viewing angles are needed
• Single-monitor configurations up to 34" and 11.3 kg

Key specifications

• Maximum screen size: 34" (86.4 cm)
• Maximum weight capacity: 11.3 kg
• Supported VESA: 75 x 75 mm, 100 x 100 mm

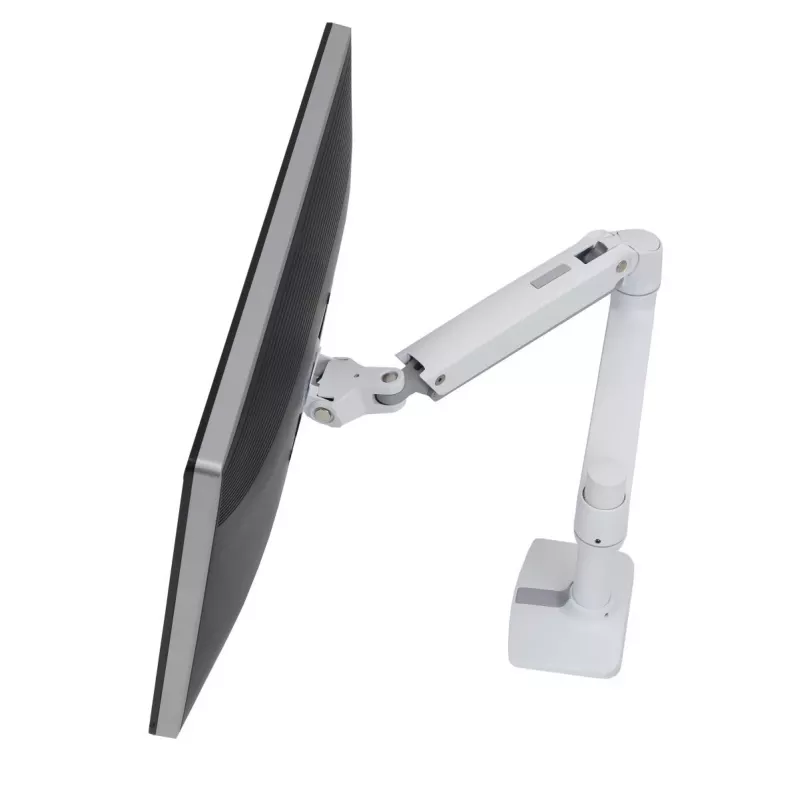

• Tilt range: -75° to 75°
• Number of displays supported: 1
• Product colour: White
• Product weight: 3.4 kg

How to use

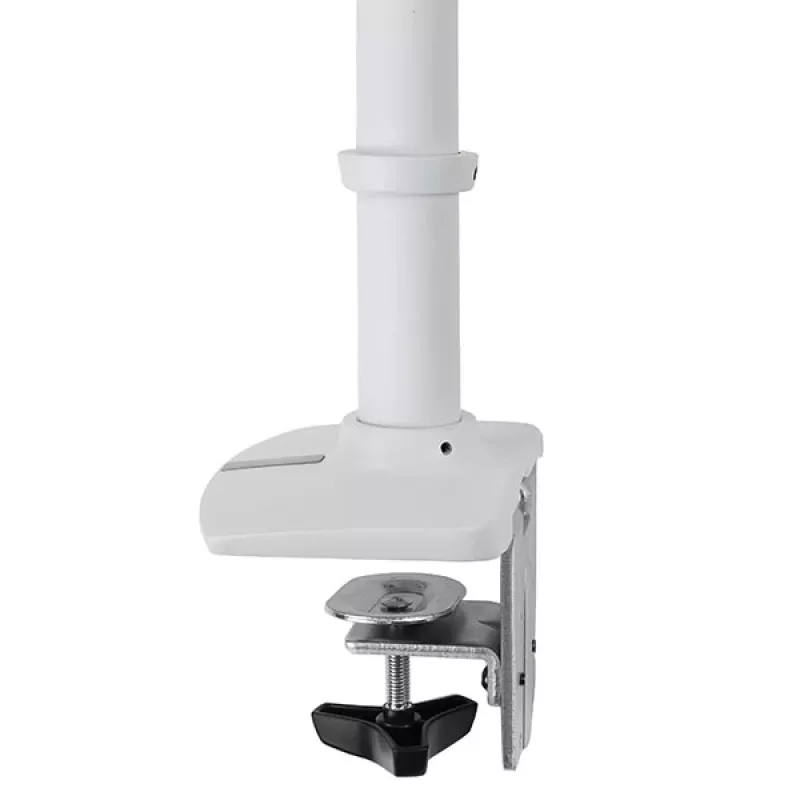

Attach the mount to your desk according to the included clamping or grommet hardware, then secure the monitor to the VESA plate. Use the Constant Force™ adjustment to set the height without tools and tilt the screen within the -75° to 75° range to find the preferred angle. Fold or swing the arm to the side when you need to clear the desk surface.

Recommendations

Ensure the monitor does not exceed 11.3 kg and uses a compatible VESA pattern. Periodically check mounting hardware for tightness and follow the manufacturer's installation instructions for safe use.
