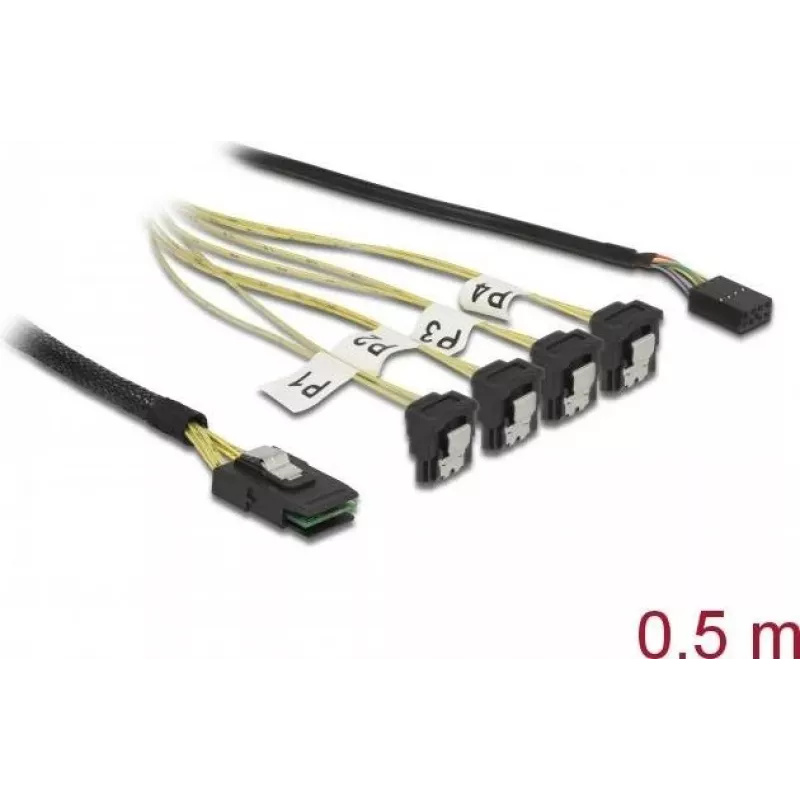

Mini SAS SFF-8087 to 4x SATA 7 Pin Angled Cable 0.5m DeLOCK 85683

The DeLOCK Mini SAS SFF-8087 to 4x SATA 7 Pin Angled Cable (0.5 m) connects internal Mini SAS controllers or backplanes to up to four SATA drives. It features a Mini SAS SFF-8087 connector on one end and four angled SATA 7‑pin connectors on the other, providing a compact internal connection for servers, workstations and storage enclosures.

Advantages

This 0.5 m cable offers a space-saving design with angled SATA connectors to improve routing and airflow in confined installations. The Mini SAS SFF-8087 to 4x SATA configuration enables efficient data transfer between SAS controller ports and multiple SATA HDD/SSD devices while keeping a single internal SAS connection.

Suitable for

• Connecting a Mini SAS SFF-8087 controller or backplane to up to four SATA drives
• Internal cabling in servers and storage enclosures
• Workstations or desktops requiring compact SATA routing

Key specifications

• Cable length: 0.5 m
• Connector 1: Mini SAS SFF-8087
• Connector 2: 4 × SATA 7‑pin (angled)
• Product colour: Black
• Brand: DELOCK, MPN: 85683, EAN: 4043619856831

How to use

Power off your system before connecting. Insert the Mini SAS SFF-8087 connector into the corresponding controller or backplane port. Connect each angled SATA 7‑pin plug to the SATA data port of the individual HDD or SSD. Ensure connectors are fully seated and route the cable to avoid sharp bends.

Recommendations

Use the cable for internal data connections only. Do not exceed manufacturer system specifications for drive configuration and throughput. Keep the cable away from heat sources and sharp edges; replace if the insulation or connectors are damaged.
