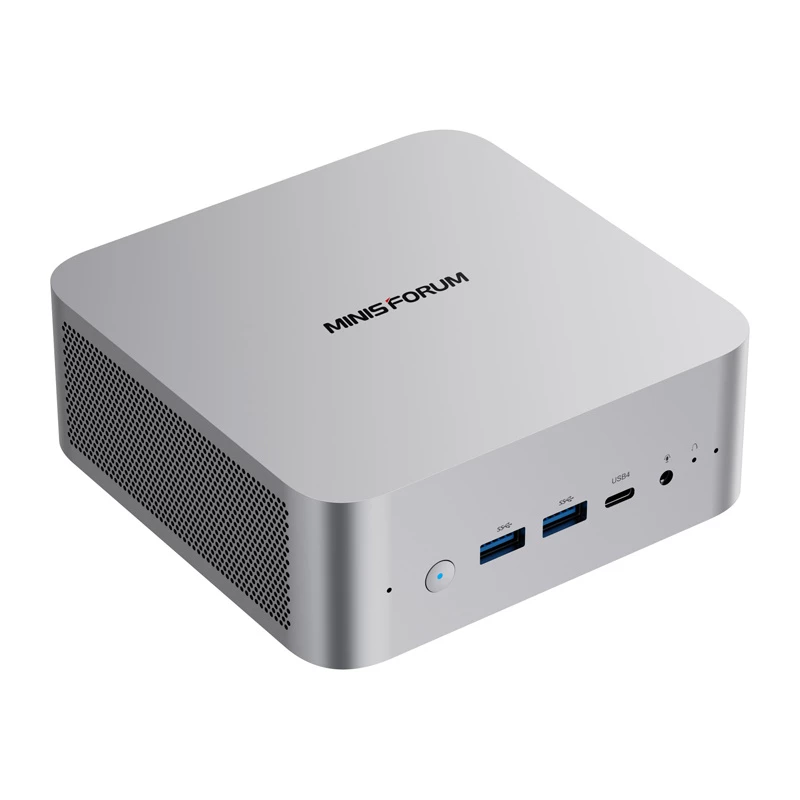

Mini PC Minis Forum X1-255 barebone with AMD Ryzen 7 H255

Minis Forum X1-255 AMD Ryzen 7 H255 miniPC, barebone

Minis Forum X1-255 is a high-performance PC that is suitable for both office work and more demanding tasks. Equipped with a powerful AMD Ryzen™ 7 processor and a variety of connectors, it allows you to freely customize your configuration. Thanks to its compact dimensions (128 x 126.5 x 52.5 mm), it will fit virtually anywhere - on a desk, behind a monitor or in a workspace with limited space.

Powerful AMD Zen 4-series processor

At the heart of the device is an 8-core and 16-thread AMD Ryzen™ 7 255 processor, based on the Zen 4 architecture. A base clock speed of 3.8 GHz with the ability to accelerate to 4.9 GHz ensures smooth operation in office applications, browsers, and even lighter 3D modeling or video editing.

Built-in AMD Radeon™ 780M graphics

The integrated AMD Radeon™ 780M graphics chip allows for smooth high-definition multimedia and even simple graphics processing. It's a reasonable choice for users who don't need a dedicated graphics card, but still expect smooth image handling.

Flexible memory and disk configuration

The X1-255 supports up to 64 GB of DDR5 memory clocked at 5600 MT/s for fast application loading and seamless multitasking. Two M.2 NVMe SSD (PCIe 4.0) slots support the installation of drives up to 4TB each, allowing you to build ultra-fast and high-capacity storage without external solutions.

Efficient cooling and quiet operation

A turbo fan with a speed of up to 4,000 rpm and a variable-phase material is responsible for cooling. This system effectively maintains a low temperature even under full load, while remaining quiet - in Silent mode it generates just 38 dB.

Reliable connectivity

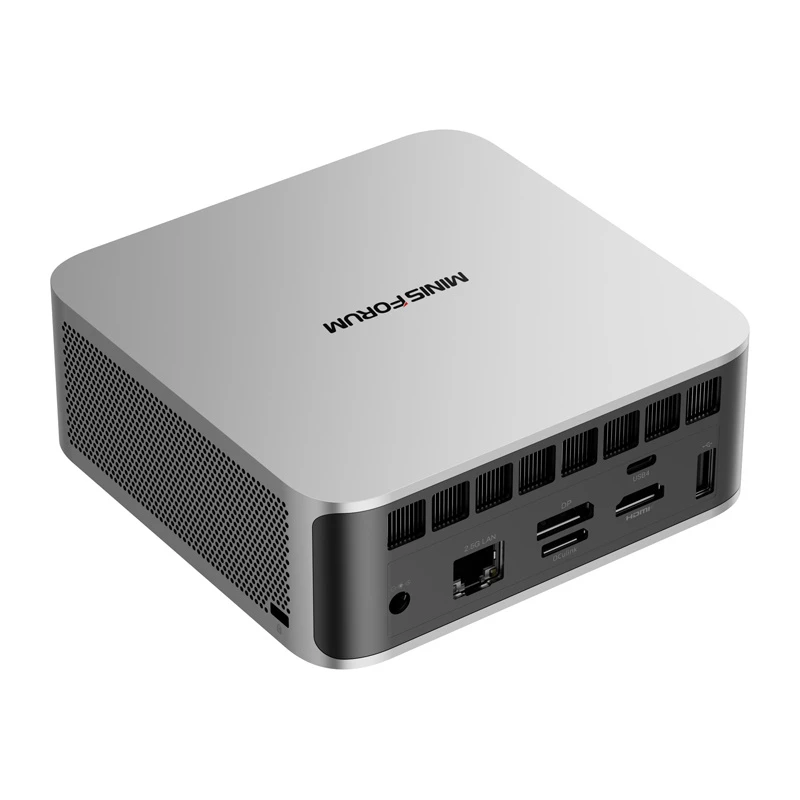

The MiniPC offers a wide selection of ports, including USB4, HDMI 2.1 FRL, DisplayPort, OCuLink, as well as a 2.5G LAN connector. This makes it easy to connect a 4K/8K monitor, high-speed external drive or other accessories. The computer also supports Wi-Fi 7 and Bluetooth 5.4 for stable wireless connectivity.

With convenience and installation in mind

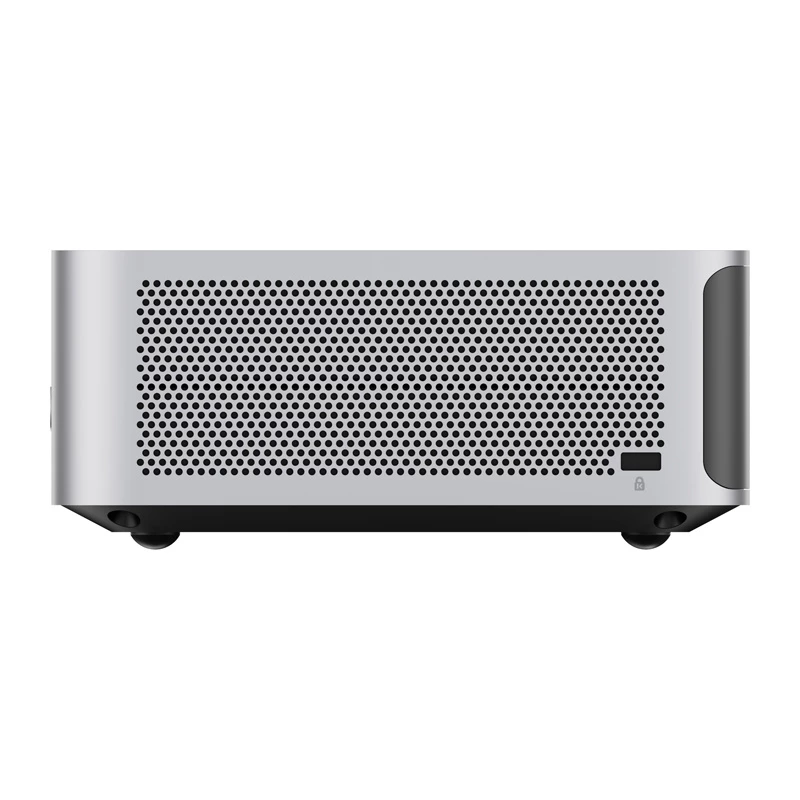

The unit comes with a standard VESA mounting hole for easy installation on the back of a monitor, for example. You'll also find a power button, a Kensington Lock slot for theft protection and a dedicated reset hole.

Included

• mini PC
• power adapter
• power cable
• HDMI cable
• mounting screws x4
• M.2 to OCulink adapter card
• mini PC stand
• user manual

How to use

Install compatible SO-DIMM memory modules and your choice of NVMe or SATA storage into the barebone according to the manufacturer’s instructions. Mount the drive(s) in the appropriate slot(s), secure the modules, and connect any external peripherals such as monitor(s), keyboard and mouse. After assembling hardware, install a supported operating system and drivers for the AMD Ryzen 7 H255 to ensure optimal performance and device compatibility. Configure BIOS/UEFI settings as needed for storage boot order and memory profiles.

Recommendations

For balanced performance, install dual-channel SO-DIMM memory and an NVMe SSD to achieve faster boot and application load times. Keep the system in a well-ventilated area to maintain optimal thermal conditions for the AMD Ryzen 7 H255 during sustained workloads.
