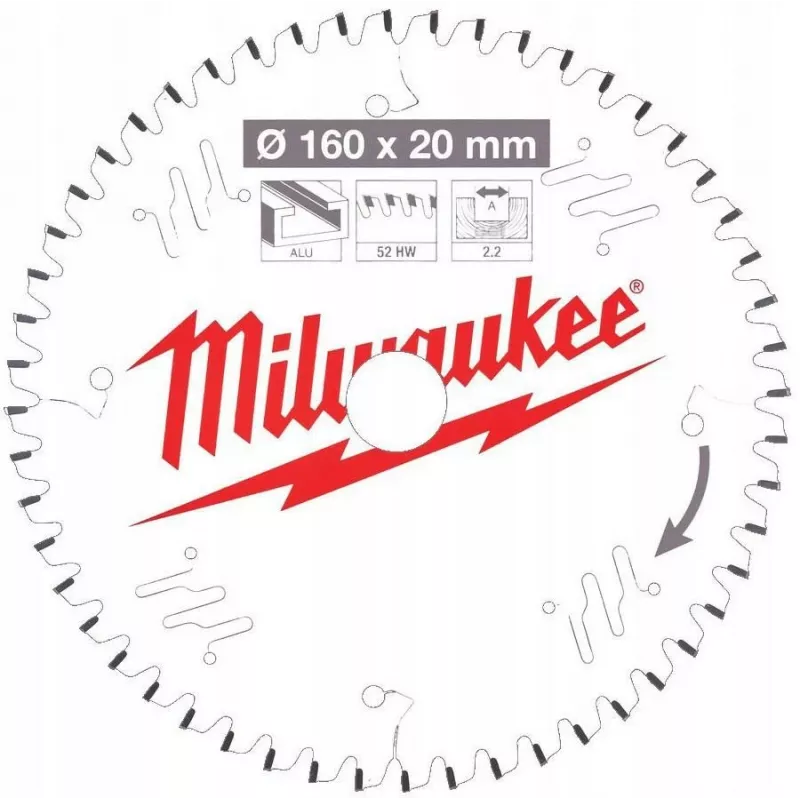

Milwaukee Circular Saw Blade 160x20x2.2x52z TF Aluminium

Precision circular saw blade engineered for clean, burr-free cuts in aluminium, non-ferrous metals, and plastics. Triple Chip Grind (TCG) tooth geometry with negative hook angle eliminates grabbing and delivers a smooth, splinter-free finish on thin-walled profiles and sheets.

Advantages

High-grade tungsten carbide tips maintain sharpness over extended production runs, while laser-cut expansion slots reduce vibration and heat build-up. The anti-vibration design ensures stable cutting even in portable cordless saws, and the precision ground teeth provide consistent, accurate cuts with minimal material waste.

Suitable for

• Aluminium profiles, sheets, and extrusions
• Non-ferrous metals such as copper, brass, and zinc
• Plastics including acrylic, PVC, and polycarbonate
• Portable and cordless circular saws with 20 mm bore

Key specifications

• Blade diameter: 160 mm
• Bore diameter: 20 mm
• Kerf thickness: 2.2 mm
• Plate thickness: 1.6 mm
• Number of teeth: 52
• Tooth geometry: TCG (Triple Chip Grind)
• Hook angle: -5°
• Max RPM: 9000
• Anti-vibration slots: Yes
• Laser-cut expansion slots: Yes

Recommendations

For optimal blade life and cut quality, use with a suitable cutting lubricant when working with thicker aluminium sections. Always ensure the saw's RPM does not exceed the blade's maximum rating and use appropriate personal protective equipment.
