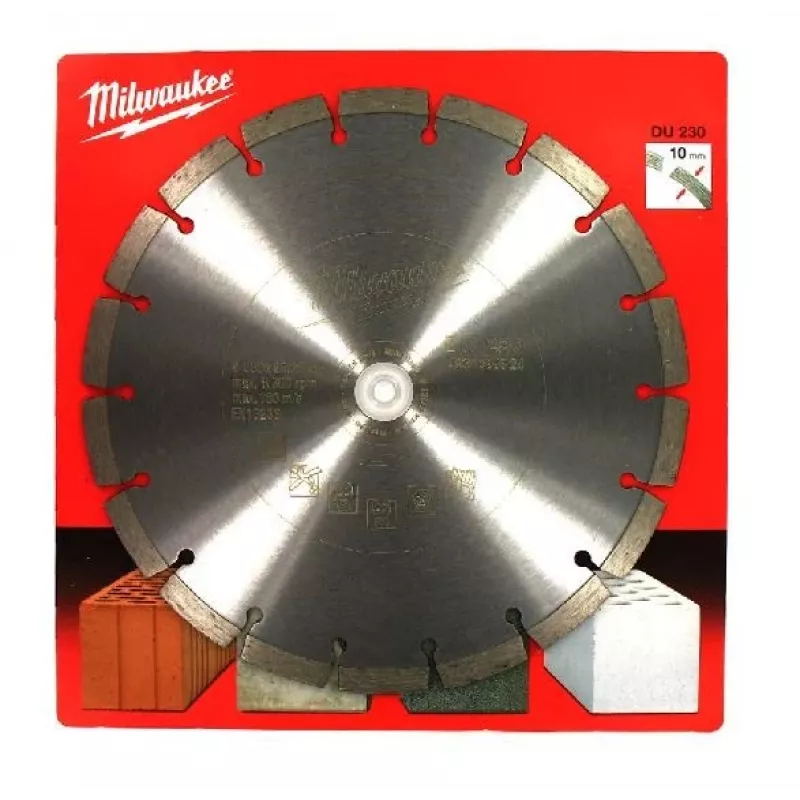

Milwaukee 230mm Segmented Diamond Cutting Disc DU

This 230 mm segmented diamond disc delivers clean, fast dry cutting in concrete, reinforced concrete, masonry, stone, and paving materials. The hard-bond diamond segments on a steel core stay sharp through demanding jobs, while the 22.23 mm bore fits standard angle grinders and cut-off saws.

Advantages

Segmented rim reduces heat build-up and clears debris quickly, so you can keep cutting without binding. Hard bond formulation matches abrasive materials for long segment life. Dry cutting capability eliminates water setup, making it practical for on-site work. Rated to 80 m/s peripheral speed and 6650 RPM for safe high-speed operation.

Suitable for

• Concrete and reinforced concrete
• Masonry, bricks, and block paving
• Natural stone and paving slabs
• Roof tiles and general construction materials

Key specifications

• Diameter: 230 mm
• Bore: 22.23 mm
• Segment height: 7 mm
• Kerf: 2.6 mm
• Max rotational speed: 6650 RPM
• Max peripheral speed: 80 m/s
• Bond type: Hard
• Safety standard: EN 13236

Recommendations

Use with a compatible 230 mm angle grinder or cut-off saw. For best results, apply steady pressure and allow the tool to reach full speed before engaging the material. Always wear appropriate PPE and follow tool manufacturer's safety instructions.
