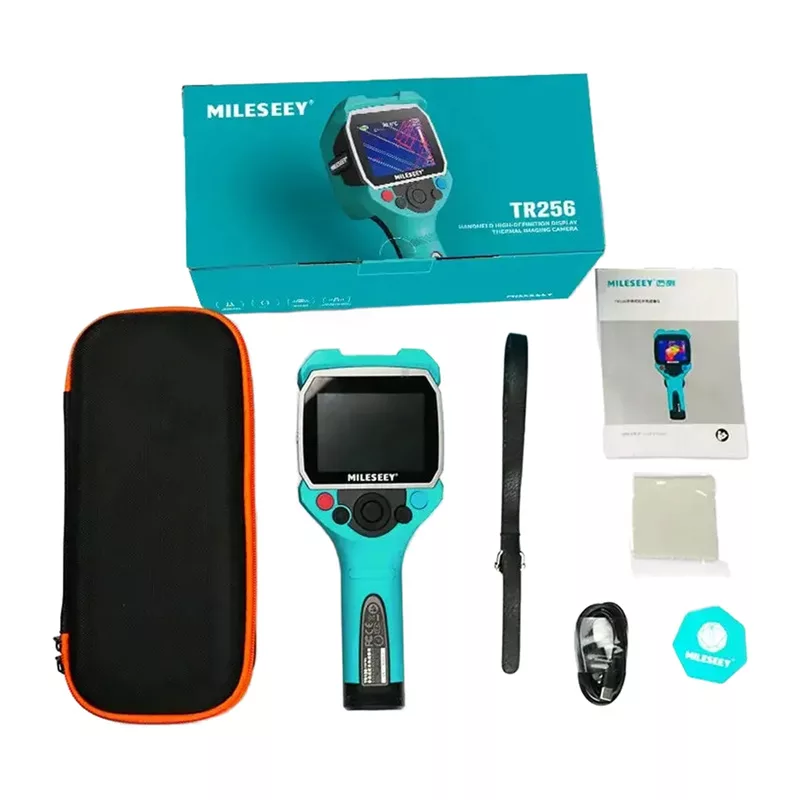

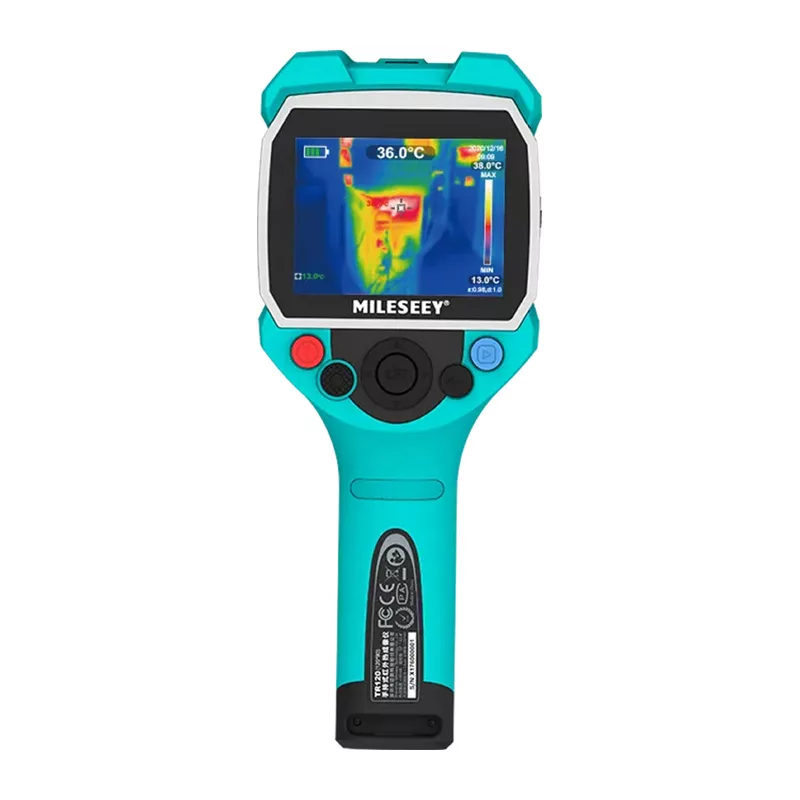

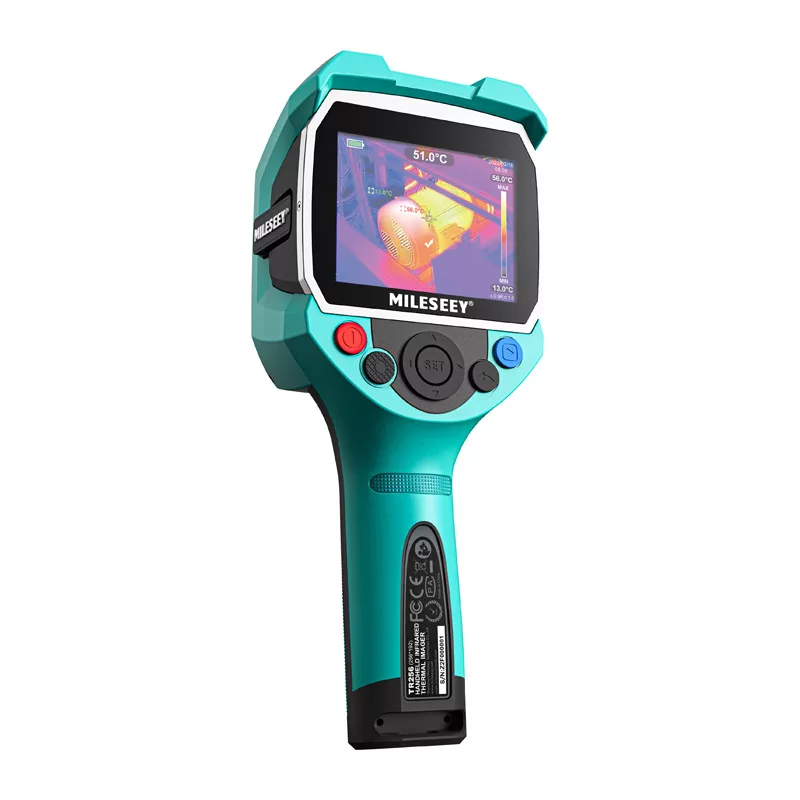

Mileseey TR256C Wi-Fi Thermal Imaging Camera 256x192 IR Resolution -20°C to 550°C

The Mileseey TR256C is a professional Wi-Fi thermal imaging camera designed for electrical inspections, building diagnostics, HVAC, and industrial maintenance. With a 256x192 infrared resolution and a 3.5-inch IPS touch screen, it delivers clear thermal images and accurate temperature measurements from -20°C to 550°C. The built-in 5MP visible light camera and multiple image modes (thermal, visual, fusion) enhance diagnostic capabilities. Data can be stored on 16GB internal memory and shared via Wi-Fi or USB-C.

Advantages

High-resolution 256x192 IR sensor with <40mK thermal sensitivity ensures precise detection of temperature anomalies. The 56°x42° field of view covers large areas efficiently. Wi-Fi connectivity allows real-time image transfer and remote analysis via smartphone app. Rugged IP54 rating and long 4-5 hour battery life make it suitable for demanding fieldwork.

Suitable for

• Electrical panel and circuit board inspections
• Building envelope and insulation analysis
• HVAC system diagnostics
• Industrial equipment monitoring
• Predictive maintenance

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Accuracy: ±2°C or ±2%
• Field of View: 56° x 42°
• Display: 3.5-inch IPS touch screen (640x480)
• Visible Camera: 5 MP
• Storage: 16GB eMMC internal
• Battery Life: Up to 5 hours
• IP Rating: IP54
• Connectivity: Wi-Fi, USB Type-C

Recommendations

For professionals requiring reliable thermal imaging with Wi-Fi data sharing and high accuracy, the Mileseey TR256C is an excellent choice. Its combination of resolution, sensitivity, and durability meets the needs of electrical, building, and maintenance applications.
