Microconnect Premium Optic HDMI A-D Cable 40m 2.0 3D 18Gbit/s

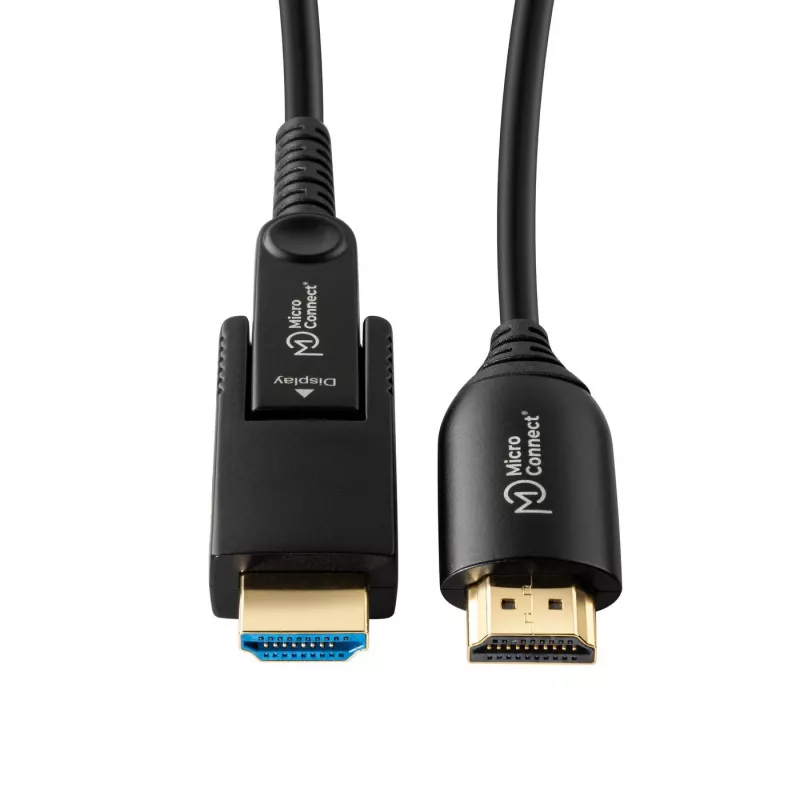

The Microconnect Premium Optic HDMI A-D Cable 40m is an active optical HDMI 2.0 cable that carries high-resolution video and audio over long distances. With a 40 m length and a hybrid design combining fiber optic and copper cores, it maintains HDMI 2.0 performance with up to 18 Gbit/s bandwidth and supports resolutions up to 4096 x 2160 and 3D content. The cable has a micro HDMI (Type D) connector on one end and a standard HDMI (Type A) connector on the other, and it includes a Type A adapter so it can also be used as HDMI A to HDMI A. Gold-plated contacts and a slim, flexible design with an ultra-small bend radius make it suitable for a variety of installations.

Advantages

The hybrid fiber-copper construction enables signal transmission up to 40 m without data loss while keeping the cable lightweight and flexible. Support for HDMI 2.0 and 18 Gbit/s bandwidth ensures compatibility with high-resolution video (up to 4096 x 2160) and 3D formats. An included HDMI Type A adapter increases connector compatibility, and gold-plated contacts improve corrosion resistance and connection reliability.

Suitable for

• Long-distance HDMI connections between sources and displays (up to 40 m)
• High-resolution video applications (up to 4096 x 2160) and 3D playback
• Installations with limited space or tight bending requirements
• Connections between devices using HDMI Type A and HDMI Type D (Micro)

Key specifications

• Length: 40 m
• Standard: HDMI 2.0
• Maximum bandwidth: 18 Gbit/s
• Supported resolution: up to 4096 x 2160
• Connectors: HDMI Type A (Standard) to HDMI Type D (Micro); includes HDMI Type A adapter
• Construction: hybrid fiber optic and copper cores
• Colour: Black
• Weight: 1.68 kg

How to use

Connect the Micro HDMI (Type D) end to the source device with a micro HDMI output and the HDMI Type A end to the display or use the included Type A adapter when both devices have standard HDMI ports. Ensure connectors are fully inserted for a secure connection. Route the cable avoiding sharp edges and excessive tension; the cable’s small bend radius allows flexible routing but preserving gentle curves will extend service life.

Recommendations

For reliable performance, avoid continuous tight bends and protect the cable from crushing or repeated mechanical stress. Use the cable within its specified length and HDMI 2.0 capability to ensure full 18 Gbit/s bandwidth and supported resolutions.
