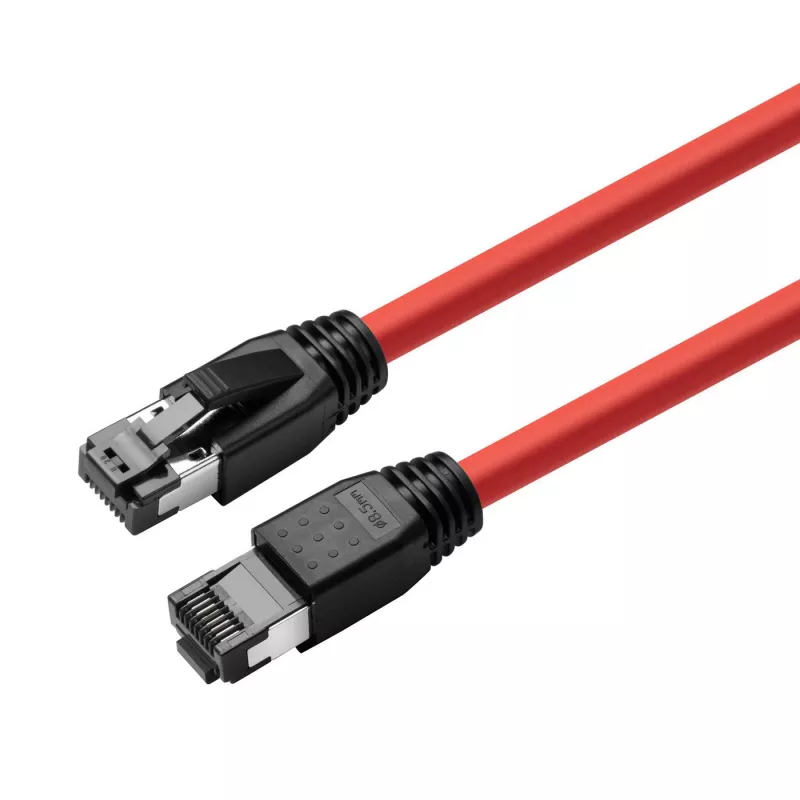

Microconnect MC-SFTP802R networking cable Red 2 m Cat8.1 S/FTP (S-STP)

The MicroConnect MC-SFTP802R is a Cat8.1 S/FTP patch cable with RJ-45 connectors and a 2 m length, designed for demanding network environments that require very high data rates. It supports transfer speeds up to 40000 Mbit/s and offers shielding for improved signal integrity. The cable features gold-plated contacts, 50µ" RJ45 connectors, latch protection to reduce the risk of clip breakage and meter markings on the boot for quick length identification.

Advantages

This Cat8.1 cable provides high bandwidth and low signal interference thanks to S/FTP shielding and quality RJ-45 connectors. Gold-plated contacts improve conductivity and corrosion resistance. Latch protection and printed meter markings increase durability and make installation and maintenance easier.

Suitable for

• High-speed LAN connections (data centers, server rooms)
• 25Gbps and faster network applications
• Backbone and switch-to-switch links
• Environments requiring reduced electromagnetic interference

Key specifications

• Standard: Cat8.1
• Shielding: S/FTP
• Connectors: RJ-45 – RJ-45 (50µ" gold-plated contacts)
• Maximum data rate: up to 40000 Mbit/s
• Bandwidth: up to 2000 MHz
• Length: 2 m
• Colour: Red
• Weight: 0.19 kg

How to use

Connect one RJ-45 connector to the network device (switch, router or network card) and the other end to the corresponding port. Ensure connectors are fully inserted until the latch clicks. Use the meter markings on the boot to verify cable length during installation. Route the cable to avoid tight bends and excessive mechanical stress to preserve shielding and performance.

Recommendations

For optimal performance, avoid running the cable parallel to high-voltage power lines and maintain bend radii recommended for Ethernet cables. Use in shielded installations where possible to maximise S/FTP benefits.
