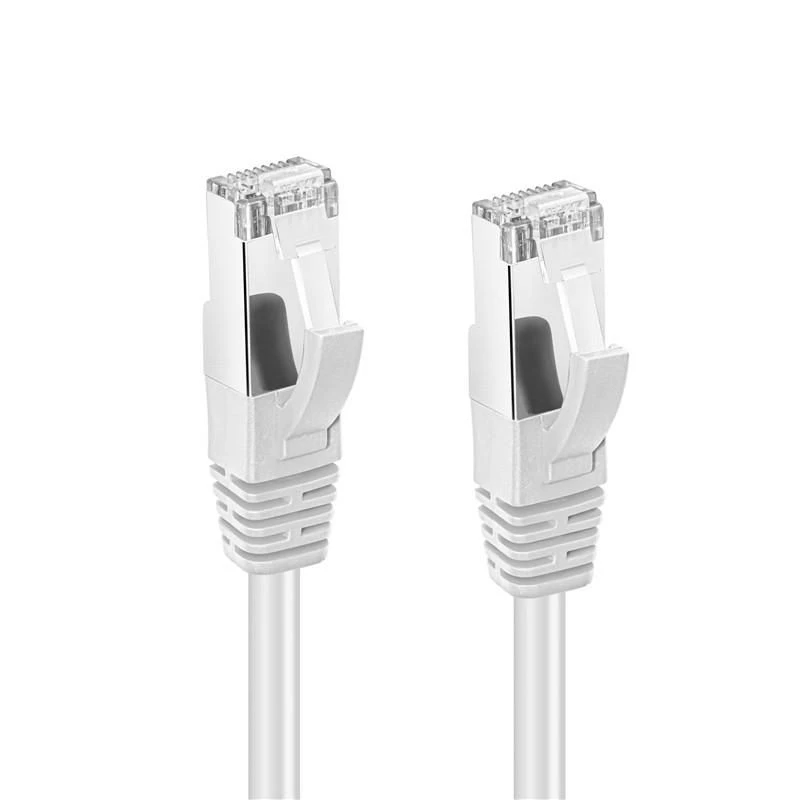

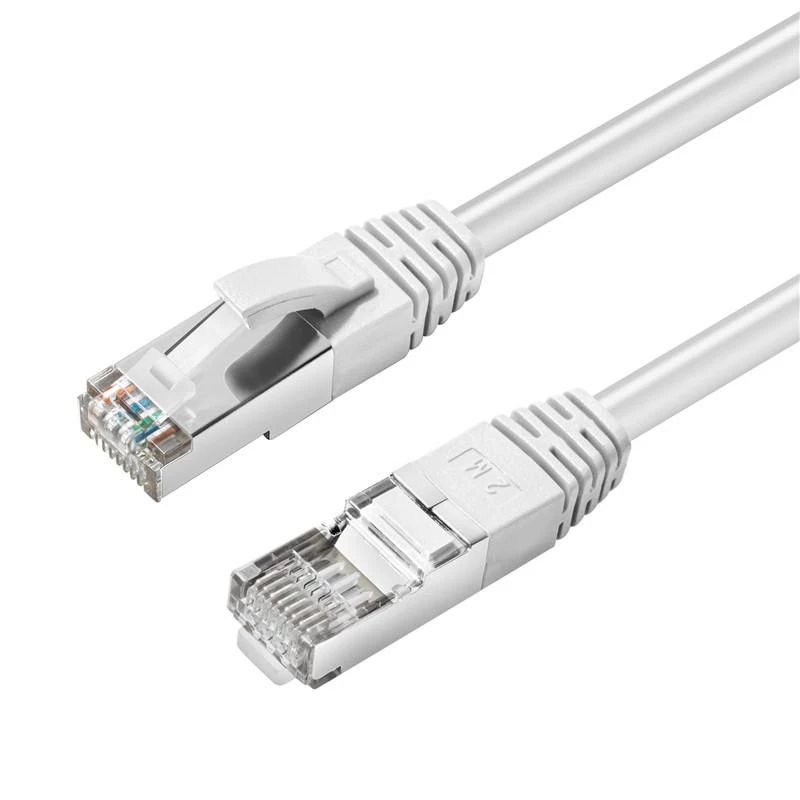

Microconnect MC-SFTP6A15W networking cable White 15 m Cat6a S/FTP (S-STP)

The MicroConnect MC-SFTP6A15W is a 15 m Cat6a networking cable with S/FTP shielding, designed for reliable high-speed data transfer up to 10000 Mbit/s and bandwidth up to 500 MHz. It uses gold-plated RJ45 connectors with 50µ" contact plating for improved signal transmission, features latch protection to reduce the risk of clip breakage, and has meter markings on the boot to quickly identify cable length.

Advantages

The S/FTP construction reduces electromagnetic interference and crosstalk, supporting stable 10Gbit connections over 15 m. Gold-plated 50µ" RJ45 contacts provide corrosion resistance and consistent contact quality. Latch protection increases connector durability while meter markings on the boot simplify installation and cable management.

Suitable for

• Data centres and server rooms requiring 10Gbit links
• Office networks and structured cabling installations
• High-bandwidth applications such as video streaming and large file transfers
• Environments where shielded cables are needed to limit interference

Key specifications

• Standard: Cat6a (S/FTP)
• Length: 15 m
• Connectors: RJ-45 to RJ-45, gold-plated, 50µ" contact plating
• Maximum data rate: up to 10000 Mbit/s (10 Gbit/s)
• Bandwidth: up to 500 MHz
• Colour: White
• Weight: 0.408 kg

How to use

Connect one RJ-45 connector to the network port of your switch, router or network device and the other end to the corresponding port on the second device. Ensure the connectors are fully inserted until the latch clicks. Use the meter markings on the boot to verify and plan cable routing, and avoid sharp bends or kinks that could impair performance.

Recommendations

For best performance, use this Cat6a S/FTP cable within recommended bend radius limits and keep it separated from power cables and strong EMI sources. Verify shield continuity at termination points when installing in shielded environments.
