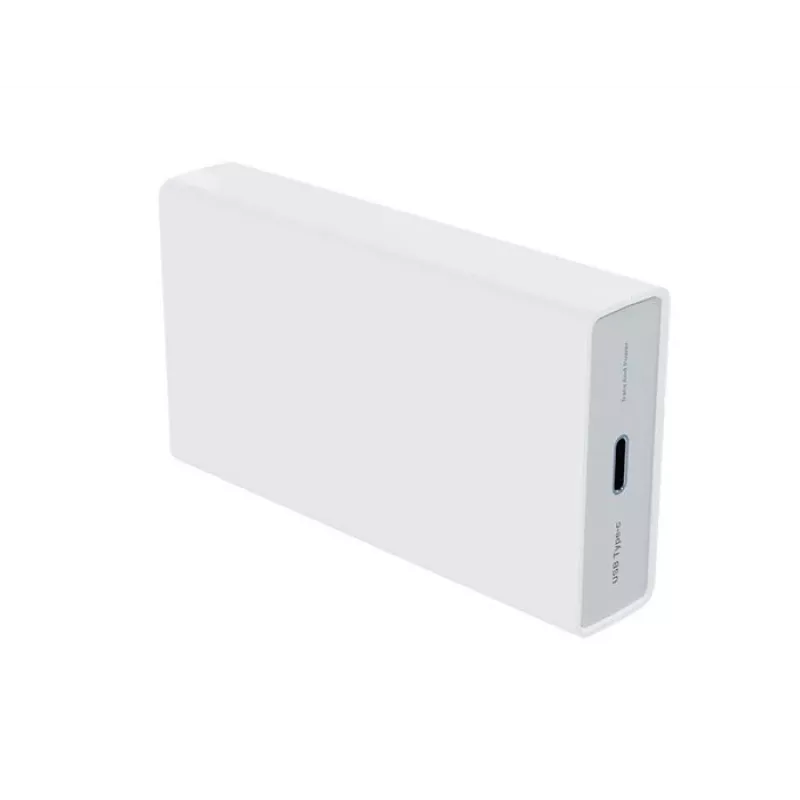

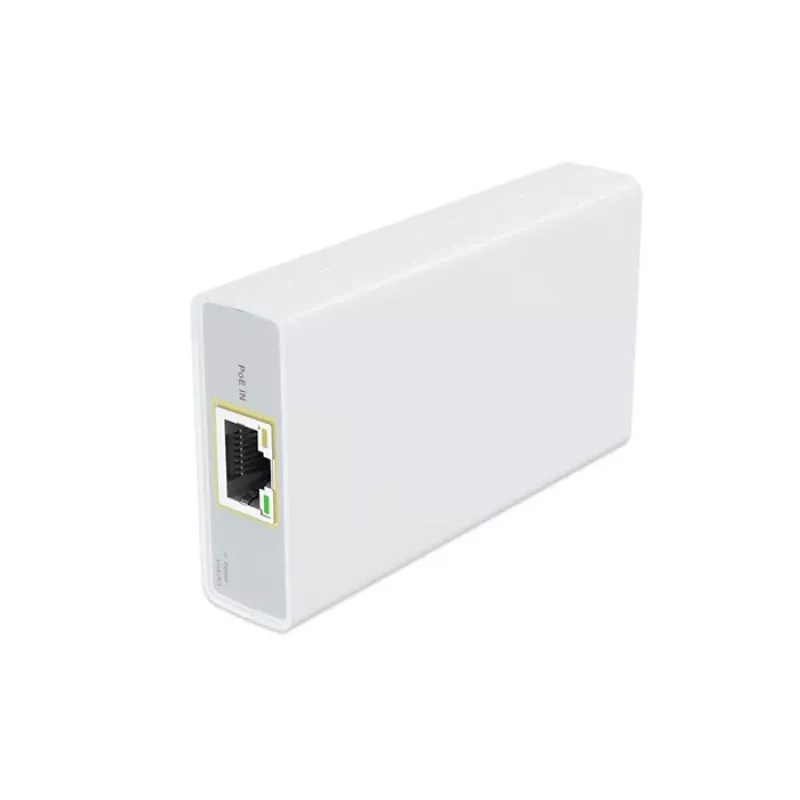

Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V

Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
Microconnect MC-POEADAPTER-60W-USB-C PoE adapter Fast Ethernet 20 V
R4,344
MC-POEADAPTER-60W-USB-C is a network power adapter designed based on the IEEE802 .3at standard. The output is a standard Type-C interface, which can provide 5V/3A 9V/3A 12V/3A 15V/3A 20V/3A power supply and 100Mbps Internet data transmission.MC-POEADAPTER-60W-USB-C is designed with a small volume of... Read More
Stock Out Of StockNo Stock Code 2191907 Brand MICROCONNECT Model MC-POEADAPTER-60W-USB-C Warranty 2 Years

Shipping & Returns

MC-POEADAPTER-60W-USB-C is a network power adapter designed based on the IEEE802 .3at standard. The output is a standard Type-C interface, which can provide 5V/3A 9V/3A 12V/3A 15V/3A 20V/3A power supply and 100Mbps Internet data transmission.
MC-POEADAPTER-60W-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use.
The input and output of the device do not exceed the safe voltage of 57V, and there is no
need for electric shock protection. The product has passed the EU CE certification.

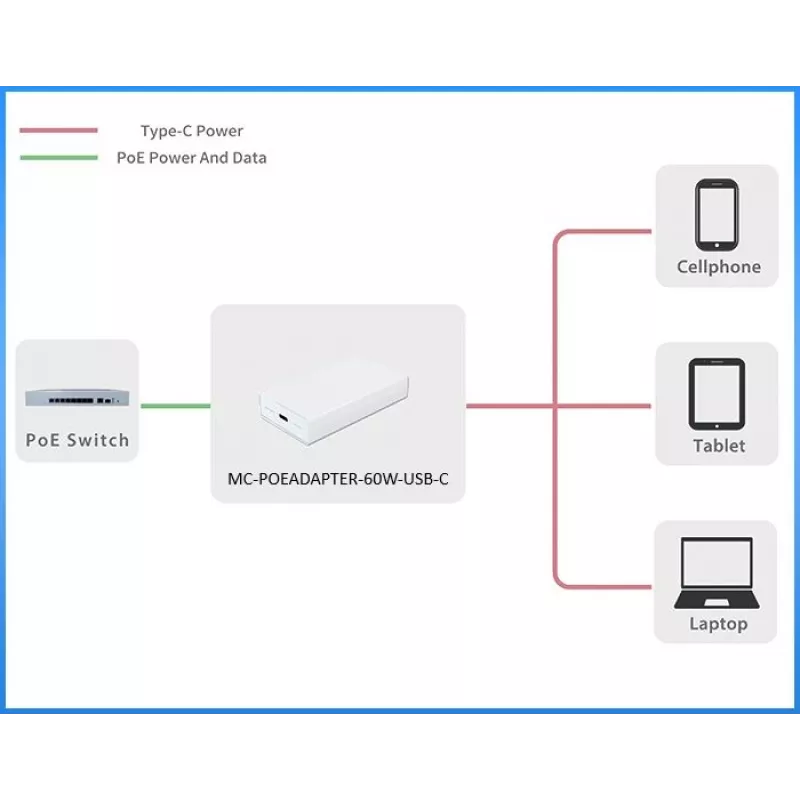

The device needs to be used in a wired network environment that supports IEEE802.3bt, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.

Microconnect MC-POEADAPTER-60W-USB-C. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Cabling technology: 10/100. Product colour: White, Housing material: Plastic, Maximum operating distance: 100 m. Power over Ethernet (PoE) voltage: 20 V, Output power: 60 W, Input voltage: 44-57 V. Compliance certificates: CE. Width: 100 mm, Depth: 60 mm, Height: 22 mm

Key Highlights
  • 100 Mbit/s Cat5 100 m
  • Power over Ethernet (PoE) IEEE 802.3at
  • USB Power Delivery (USB PD) Fast charging
  • Plastic
  • White
Specifications
Cable types supported
Cat5
Cabling technology
10/100
Compliance certificates
CE
Country of origin
China
Depth
60 mm
Easy to install
Yes
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
100 Mbit/s
Fast charging
Yes
Height
22 mm
Housing material
Plastic
Input voltage
44-57 V
International Protection (IP) code
IP40
LED indicators
Yes
Maximum operating distance
100 m
Networking standards
IEEE 802.3at
Operating altitude
0 - 2000 m
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
-20 - 40 °C
Output current
2 A
Output power
60 W
Package weight
150 g
Plug and Play
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
20 V
Product colour
White
RJ-45 input ports
1
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Sustainability compliance
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
2.0
USB Type-C ports quantity
1
Weight
129 g
Width
100 mm

Manual

Open Manual

Leaflet

Open Leaflet
