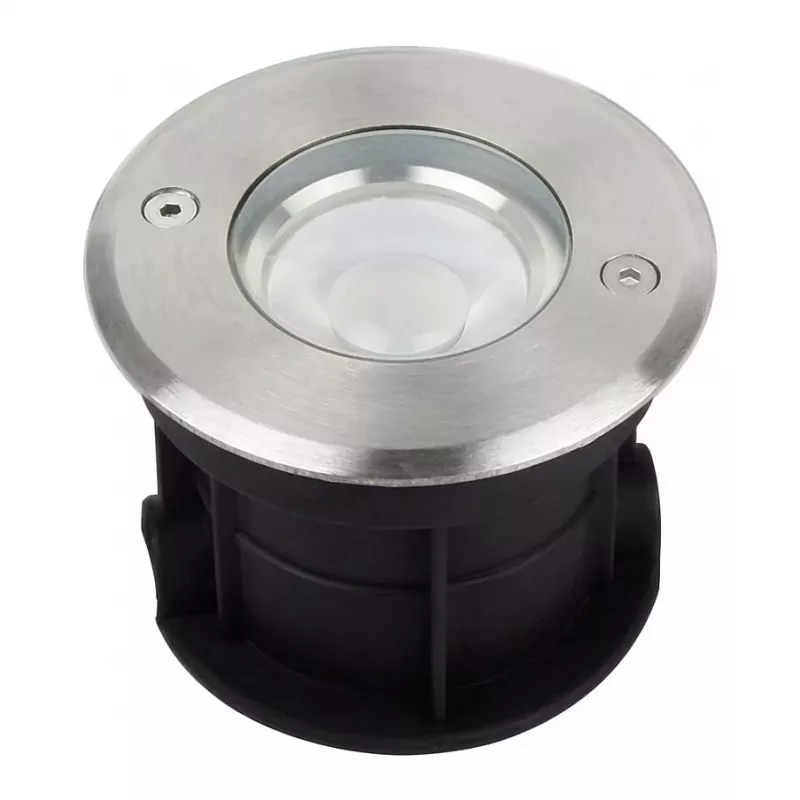

MIBOXER UG4-05A-XL LED DMX512 5W RGB+CCT Underground Light

The MIBOXER UG4-05A-XL is a high-performance LED underground light designed for professional outdoor lighting applications. With 5W power output and RGB+CCT color control, it offers dynamic lighting effects and adjustable white light from 2700K to 6500K. The light supports both DMX512 and MiBoxer 2.4GHz RF control protocols, providing flexible integration into existing lighting systems.

Advantages

This underground light features a robust IP67 rating, making it dustproof and waterproof for reliable outdoor use. The stainless steel front ring and aluminum body ensure durability, while the tempered glass lens provides excellent light transmission. With a lifespan of 50,000 hours, it offers long-term performance with minimal maintenance.

Suitable for

• Landscape lighting
• Architectural accent lighting
• Pathways and driveways
• Garden and patio illumination
• Commercial outdoor spaces

Key specifications

• Power: 5W
• Color: RGB+CCT (2700K-6500K)
• Input Voltage: AC100-240V, 50/60Hz
• Control: DMX512, MiBoxer 2.4GHz RF
• DMX Channels: 7 (Dimmer, R, G, B, CCT, Strobe, Mode)
• Luminous Flux: 350 lm
• Beam Angle: 15°
• IP Rating: IP67
• Material: Stainless Steel, Aluminum, Tempered Glass
• Installation Hole Diameter: Ø95mm
• Dimming: 0-100%
• Wireless Range: 30m
• CRI: >80
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper installation with a suitable junction box and follow local electrical codes. The light is compatible with DMX512 controllers and MiBoxer RF remotes. Professional installation is recommended for outdoor use.
