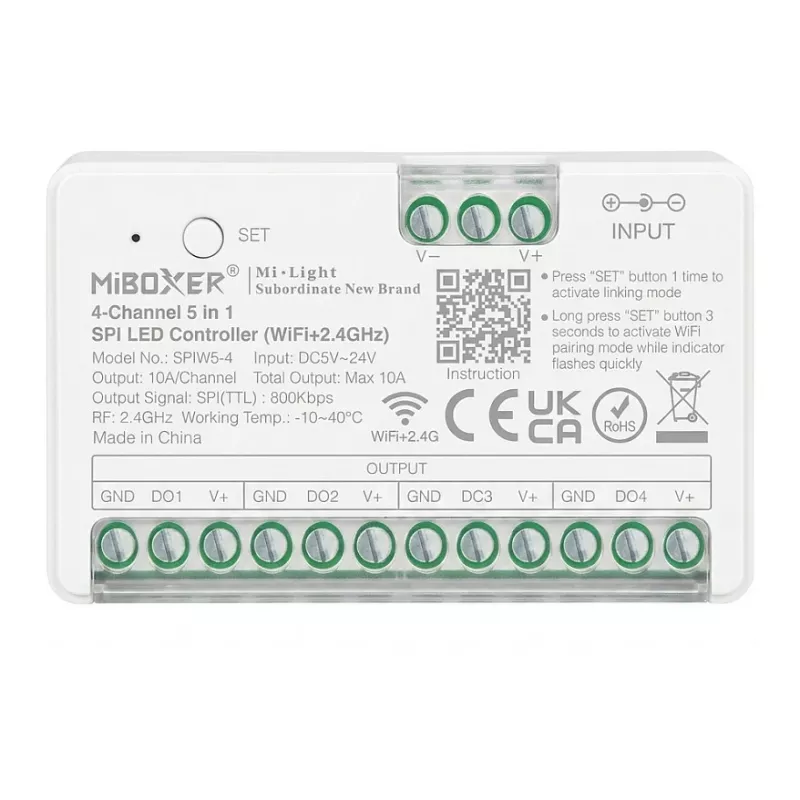

MIBOXER SPIW5-4 Pixel LED Controller SPI Series 5 in 1 SPI (2.4GHz+WiFi) 4 Channels

The MIBOXER SPIW5-4 is a high-performance Pixel LED Controller from the SPI Series, designed to control up to 2400 pixels across 4 independent channels. It supports both 2.4GHz RF and WiFi connectivity, enabling seamless control via the MiBoxer APP, compatible 2.4GHz remotes, or voice control through a gateway. This controller is ideal for dynamic RGB/RGBW/RGB+CCT lighting installations, offering 16 million colors, 0-100% dimming, and a wide range of dynamic modes.

Advantages

Versatile control options: WiFi for app control, 2.4GHz for remote control, and voice control via gateway. Supports a broad range of SPI ICs including WS2811, WS2812B, SK6812, and more. Wide input voltage range (DC 5-24V) and robust ABS construction ensure reliability in various environments.

Suitable for

• Architectural lighting
• Entertainment venues
• Smart home lighting systems
• DIY LED projects
• Commercial displays

Key specifications

• Product Type: SPI Pixel LED Controller
• Control Protocol: SPI
• Wireless Connectivity: 2.4GHz RF, Wi-Fi
• Input Voltage: DC 5-24V
• Output Channels: 4 independent channels
• Max Pixels per Channel: 600 pixels
• Total Max Pixels: 2400 pixels
• Supported ICs: WS2811, WS2812B, WS2813, WS2815, SK6812, TM1803, TM1804, UCS1903, APA102, SK9822, etc.
• Control Methods: MiBoxer APP (WiFi), MiBoxer 2.4GHz RF Remotes, Voice Control (via gateway)
• Color Control: 16 Million Colors (RGB/RGBW/RGB+CCT)
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Material: ABS
• Output Signal Type: TTL (5V)
• Compatibility: MiBoxer/MiLight Ecosystem
• Features: Dynamic modes, brightness/saturation/color temperature adjustment, timer function

Recommendations

For optimal performance, use with compatible MiBoxer power supplies and ensure proper wiring. This controller is not waterproof; protect from moisture. Suitable for indoor use only.
