MiBoxer PZ5 5-in-1 LED controller, Zigbee 3.0 + 2.4 GHz RF, 12–48 V, 20 A

MiBoxer PZ5 5-in-1 LED controller, Zigbee 3.0 + 2.4 GHz RF, 12–48 V, 20 A
MiBoxer PZ5 5-in-1 LED controller, Zigbee 3.0 + 2.4 GHz RF, 12–48 V, 20 A
R794

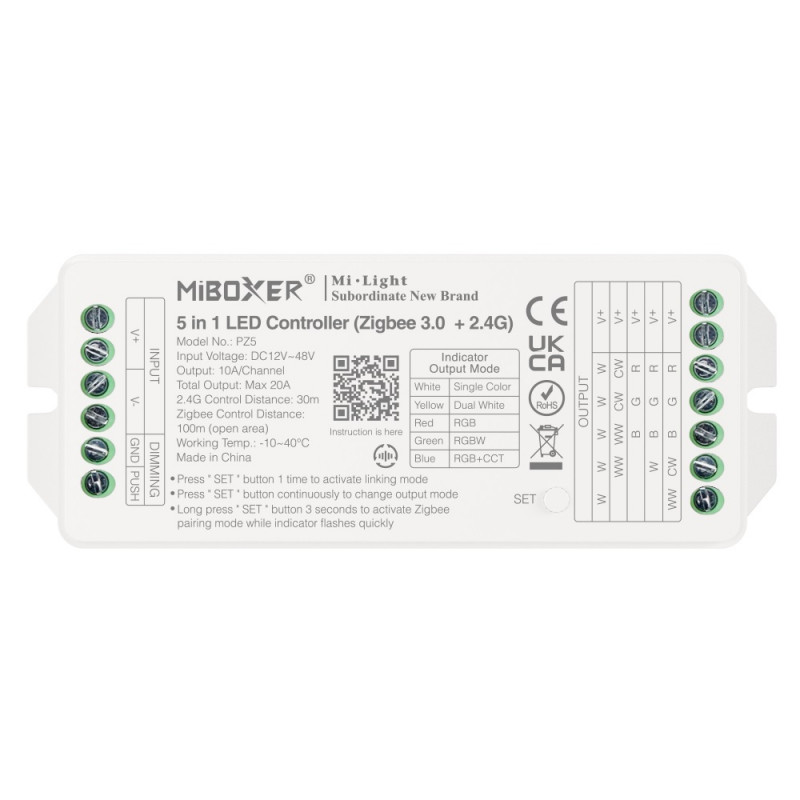

MiBoxer PZ5 is a constant-voltage LED controller with five selectable output modes: single colour, CCT dual white, RGB, RGBW and RGB+CCT. The Set button selects the mode and a coloured indicator identifies the current setting. The input is 12–48 V DC. Output is limited to 10 A per channel and 20 A a... Read More
Stock 18 Code 3585915 Brand MIBOXER Model PZ5 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

MiBoxer PZ5 is a constant-voltage LED controller with five selectable output modes: single colour, CCT dual white, RGB, RGBW and RGB+CCT. The Set button selects the mode and a coloured indicator identifies the current setting. The input is 12–48 V DC. Output is limited to 10 A per channel and 20 A across all channels combined, so both limits must be considered when selecting LED strips and a matching power supply.

The PZ5 supports Zigbee 3.0 and compatible MiBoxer/Mi-Light 2.4 GHz RF remotes. Specified control distances are up to 100 m for Zigbee in open space and 30 m for RF under suitable conditions. A compatible Zigbee gateway enables app control and supported smart-home integrations; available features depend on the gateway. An external PUSH button can switch the light and adjust brightness.

RF command forwarding, dynamic-mode synchronisation and configurable power-return behaviour are supported. The white IP20 enclosure is intended for dry indoor installations at −10 to +40 °C. Screw terminals connect power, LEDs and the PUSH input. Power supply, LED strips, button, remote and gateway are separate components.

Specifications
Brand
MiBoxer
Category
LED controller
DC input voltage
12–48 V DC
EAN
4038816159106
International Protection (IP) code
IP20
Model
PZ5
MPN
PZ5
Operating temperature (T-T)
−10 to +40 °C
Output current
10 A per channel; 20 A total
Product colour
White
Product type
LED controller
Quantity per pack
1
Supported protocols
Zigbee 3.0 / 2.4 GHz RF
