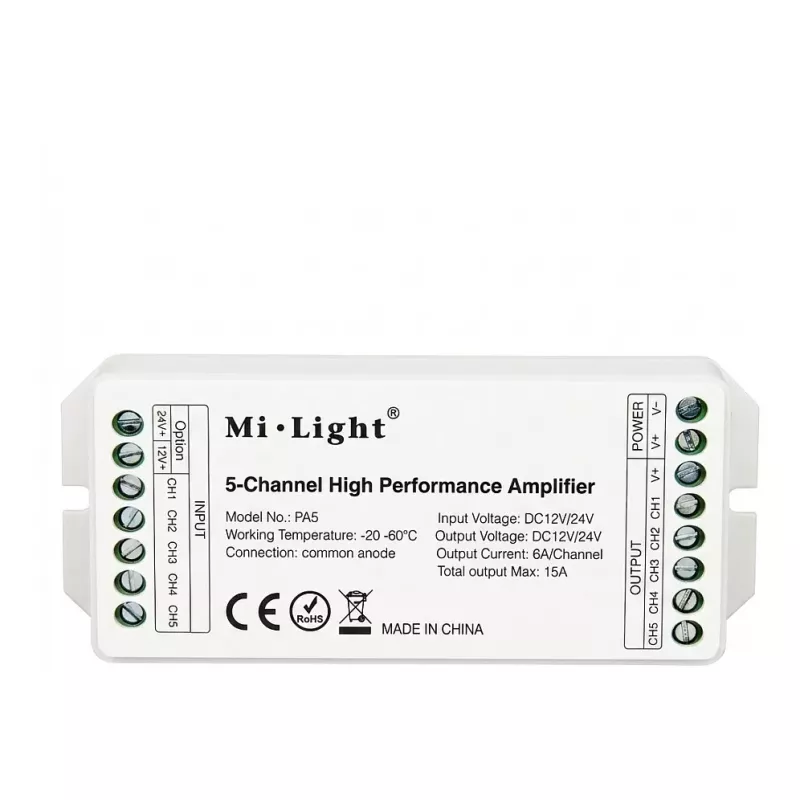

MIBOXER PA5 5-Channel LED Amplifier 12-24V DC PWM RGB+CCT RGBWW RGB Dual White Single Color

The MIBOXER PA5 is a high-performance 5-channel LED amplifier designed to extend the reach of your LED lighting system. It works seamlessly with Mi-Light/MiBoxer controllers and other standard PWM controllers, allowing you to drive larger installations without signal degradation. With support for RGB+CCT, RGBWW, RGB, Dual White, and Single Color LED strips, this amplifier is a versatile solution for both residential and commercial lighting projects.

Advantages

• 5 independent channels for flexible control of multi-color LED setups.
• Wide input voltage range (DC 12-24V) accommodates various power supplies.
• High output capacity: up to 3A per channel, 15A total, supporting up to 180W at 12V or 360W at 24V.
• Robust aluminum alloy housing ensures efficient heat dissipation and durability.
• Built-in overload and short circuit protection for safe operation.
• Ultra-low standby power consumption (<1W) for energy efficiency.

Suitable for

• Extending RGB+CCT, RGBWW, RGB, Dual White, or Single Color LED strip installations.
• Large-scale architectural lighting, cove lighting, and accent lighting.
• Commercial displays, signage, and stage lighting where signal boosting is required.
• DIY smart home lighting projects using MiBoxer or compatible PWM controllers.

Key specifications

• Product Type: LED Amplifier
• Number of Channels: 5
• Input Voltage: DC 12-24V
• Output Current per Channel: Max 3A
• Total Output Current: Max 15A
• Max Output Power: 180W (12V) / 360W (24V)
• Control Signal: PWM
• Connection Type: Screw Terminals
• Operating Temperature: -20°C to 60°C
• Housing Material: Aluminum Alloy
• Protection: Overload, Short Circuit
• Static Power Consumption: <1W
• Dimensions: 119 x 47 x 23 mm
• Weight: 120g

Recommendations

For optimal performance, use with a compatible MiBoxer or Mi-Light LED controller and a suitable DC power supply. Ensure total connected LED load does not exceed the amplifier's maximum output rating. The PA5 is ideal for expanding your lighting system beyond the controller's native power capacity.
