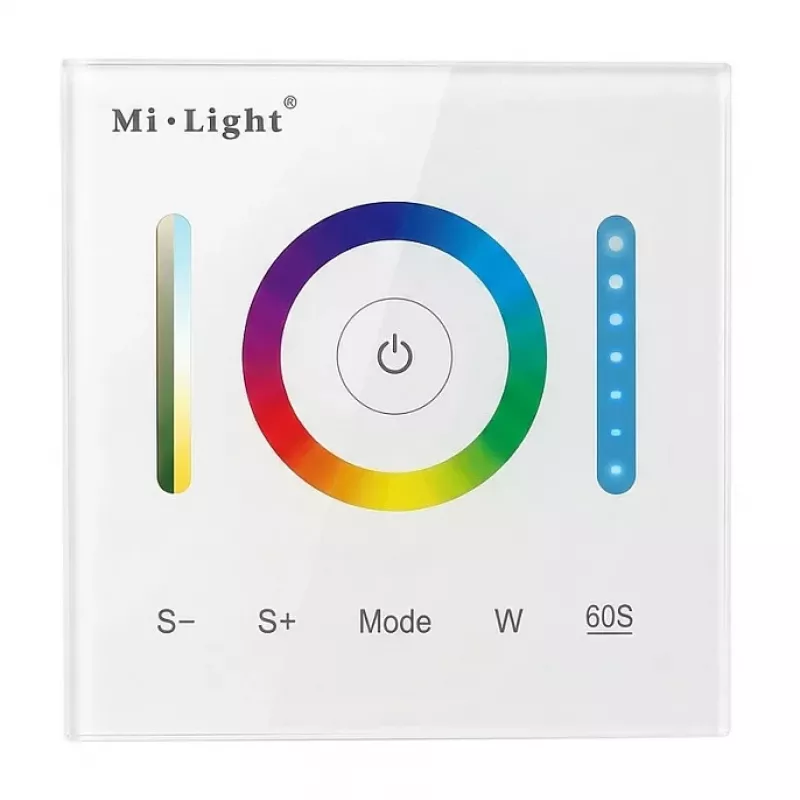

MIBOXER P3 Smart LED Panel Controller (RGB/RGBW/RGB+CCT) 2.4GHz Touch

The MIBOXER P3 Smart LED Panel Controller is a high-end capacitive touch panel designed for controlling Mi-Light and MiBoxer LED products. It supports RGB, RGBW, and RGB+CCT LED types across 4 independent zones, offering seamless control over on/off, dimming, color change, white temperature, saturation, and scene selection. With a sleek tempered glass finish and flush-mount installation, it integrates perfectly into standard EU wall boxes.

Advantages

Intuitive capacitive touch interface with 4-zone control; compatible with a wide range of LED types; low standby power consumption (<0.1W); reliable 2.4GHz RF wireless technology with up to 30m range; easy flush-mount installation.

Suitable for

• Smart home lighting systems using Mi-Light/MiBoxer products
• Residential and commercial spaces requiring multi-zone RGB/CCT control
• Modern interiors where a flush-mounted, glass panel aesthetic is desired

Key specifications

• Product Type: Smart LED Wall Panel Controller
• Control Technology: 2.4GHz RF Wireless
• Control Method: Capacitive Touch Panel
• Compatibility: Mi-Light / MiBoxer LED Products
• Supported LED Types: RGB, RGBW, RGB+CCT
• Control Zones: 4 Independent Zones
• Input Voltage: AC 100-240V
• Installation Type: Flush-mounted (Unterputz)
• Panel Material: Tempered Glass
• Control Functions: On/Off, Dimming, Color Change, White Temperature, Saturation, Scene Selection
• Wireless Range: Up to 30 meters
• Operating Temperature: -20°C to 60°C
• Standby Power Consumption: <0.1W
• Color: Black
• Mounting Standard: Standard EU Wall Box
• Transmission Power: 6dBm

Recommendations

For optimal performance, pair with compatible MiBoxer/Mi-Light LED drivers and bulbs. Ensure proper flush-mount installation in a standard EU wall box. This controller is ideal for creating dynamic lighting scenes in living rooms, offices, and commercial spaces.
