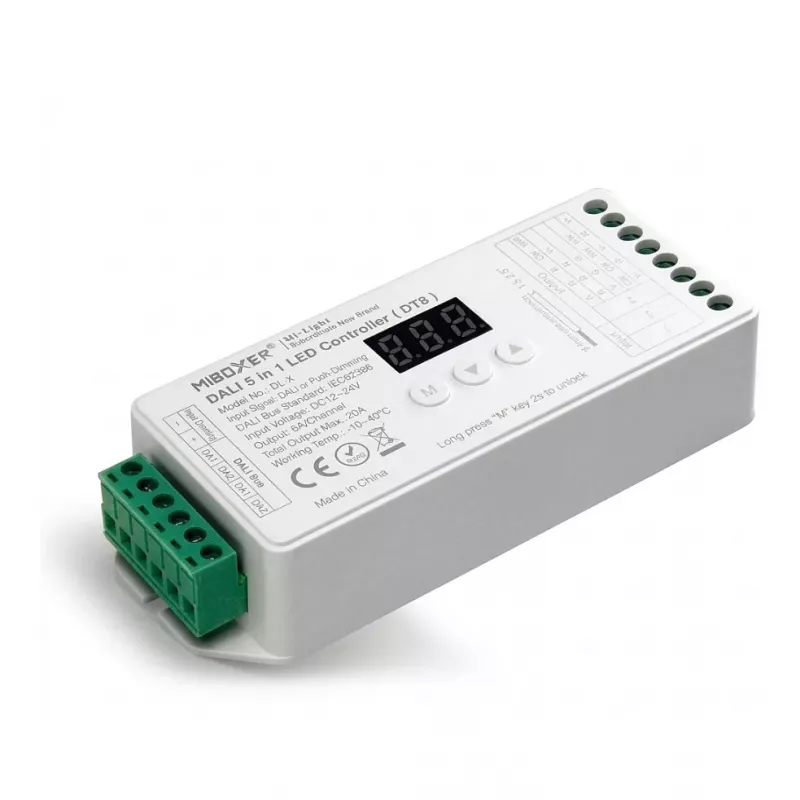

Miboxer LED DALI 5 in 1 Controller DT8 Milight/Miboxer (DL-X)

The Miboxer DL-X is a versatile 5-in-1 LED controller that supports DALI DT8 protocol, allowing seamless integration with standard DALI masters. It controls single color, CCT, RGB, RGBW, and RGB+CCT LED strips or fixtures using a single DALI address. With constant voltage output (DC 12-24V) and high current capacity (6A per channel, 10A total), it delivers up to 240W at 24V. The controller features overload and short circuit protection, screw terminal connections, and a compact PC housing. Ideal for professional lighting installations requiring precise dimming (0-100%) and color control.

Advantages

Comprehensive 5-in-1 control: single color, CCT, RGB, RGBW, RGB+CCT. High power handling up to 240W. Reliable protection features. Easy screw terminal wiring. Compact and durable design.

Suitable for

• Commercial and residential LED lighting systems
• DALI-based smart lighting projects
• Retrofit and new installations requiring color tuning

Key specifications

• Input Voltage: DC 12-24V
• Output Type: Constant Voltage
• Max Output Current per Channel: 6A
• Total Max Output Current: 10A
• Max Output Power: 120W (12V), 240W (24V)
• Control Protocol: DALI (IEC 62386-209)
• DALI Device Type: DT8
• LED Control Modes: Single Color, CCT, RGB, RGBW, RGB+CCT
• Dimming Range: 0-100%
• DALI Address Usage: 1 DALI Address
• Operating Temperature: -20°C to 60°C
• Protection: Overload, Short Circuit
• Housing Material: PC
• Certifications: CE, RoHS
• Connection: Screw Terminals

Recommendations

Ensure your DALI master is compatible with DT8 devices. Use appropriate power supply (12V or 24V DC) and observe maximum load ratings. Professional installation recommended.
