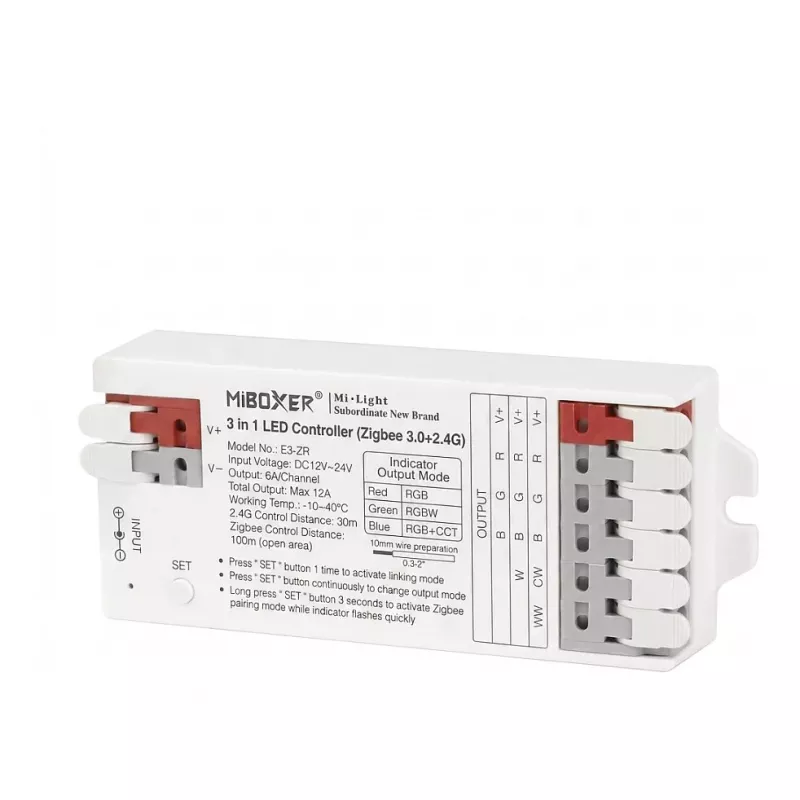

Miboxer LED Controller 3in1 RGB/RGBW/RGB+CCT Zigbee 3.0 2.4G E3-ZR

The Miboxer E3-ZR is a versatile 3-in-1 LED controller supporting RGB, RGBW, and RGB+CCT modes. It combines Zigbee 3.0 and 2.4GHz RF wireless technologies for flexible control via remote, smartphone app, or voice assistant. Ideal for indoor LED strip lighting, it offers smooth dimming, memory function, and synchronization in 2.4G mode.

Advantages

Compatible with multiple LED types (RGB, RGBW, RGB+CCT) in one unit. Dual wireless protocols ensure broad compatibility with MiBoxer/MiLight remotes and Zigbee gateways like Philips Hue and SmartThings. High output power supports large installations. Memory function retains last settings after power loss.

Suitable for

• Indoor LED strip lighting projects
• Smart home integration with Zigbee hubs
• DIY lighting installations requiring color control
• Commercial accent lighting

Key specifications

• Product Type: LED Controller
• Control Modes: RGB, RGBW, RGB+CCT (3-in-1)
• Wireless: Zigbee 3.0 + 2.4GHz RF (MiBoxer/MiLight)
• Input Voltage: DC 12-24V
• Max Output Current: 15A total (6A per channel)
• Output Channels: 5 (R, G, B, W, CCT)
• Max Power: 180W (12V) / 360W (24V)
• Dimming Range: 0-100%
• Material: PC Plastic
• Protection: IP20 (Indoor)
• Certifications: CE, RoHS
• Connection: Screw Terminals

Recommendations

Pair with a compatible Zigbee gateway for smart home control. For 2.4G RF mode, use MiBoxer/MiLight remotes. Ensure power supply matches voltage and current requirements.
