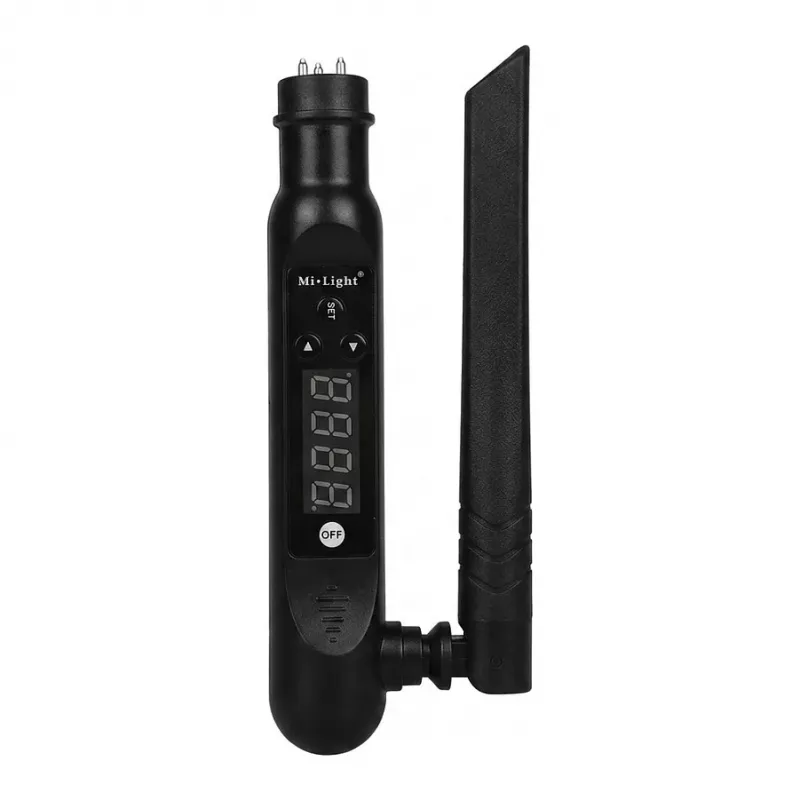

MIBOXER FUTD01 LED DMX Controller Transmitter - 2.4GHz RF DMX512

The MIBOXER FUTD01 is a professional DMX512 transmitter designed for wireless control of MiBoxer and Milight 2.4GHz LED controllers and lights. It converts DMX512 signals into 2.4GHz RF commands, enabling flexible and cable-free lighting setups. With support for up to 512 DMX channels and 16 control zones, this device is ideal for stage, architectural, and commercial lighting applications.

Advantages

Wireless control eliminates the need for long DMX cables, reducing installation complexity and cost. The OLED display and push-button interface provide intuitive operation, while the compact ABS housing ensures durability. Compatible with a wide range of MiBoxer/Milight 2.4G series products, it offers seamless integration into existing systems.

Suitable for

• Stage and theater lighting
• Architectural and landscape lighting
• Retail and hospitality lighting
• Event and exhibition lighting

Key specifications

• Product Type: DMX512 Transmitter
• Wireless Protocol: MiBoxer 2.4GHz RF
• DMX Standard: DMX512
• DMX Channels: 512
• Control Zones: 16
• Input Voltage: DC 12V
• Input Current: 500mA
• Wireless Control Distance: Up to 30 meters
• DMX Output Connector: XLR 3-pin Male
• Power Connector: DC 5.5x2.1mm Jack
• Display Type: OLED
• Control Interface: Push Buttons
• Frequency: 2400-2483.5MHz
• Modulation: GFSK
• Transmission Power: 6dBm
• Housing Material: ABS Plastic
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use with MiBoxer or Milight 2.4GHz compatible LED controllers and lights. Ensure a stable 12V DC power supply. The device is not Bluetooth enabled and does not support hands-free calling or USB charging.
