MiBoxer D3-T 3-channel DMX512/RDM LED decoder, DIN rail, 12–48 V DC

MiBoxer D3-T 3-channel DMX512/RDM LED decoder, DIN rail, 12–48 V DC
MiBoxer D3-T 3-channel DMX512/RDM LED decoder, DIN rail, 12–48 V DC
R735
MiBoxer D3-T is a three-channel constant-voltage LED decoder for DMX512 installations, including RGB LED strips. It supports RDM for remote device management. The input is 12–48 V DC, with a maximum output current of 6 A per channel and 18 A in total. Match the LED strip and power-supply voltage and... Read More
Stock 19 Code 3586050 Brand MIBOXER Model D3-T Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

MiBoxer D3-T is a three-channel constant-voltage LED decoder for DMX512 installations, including RGB LED strips. It supports RDM for remote device management. The input is 12–48 V DC, with a maximum output current of 6 A per channel and 18 A in total. Match the LED strip and power-supply voltage and observe both current limits.

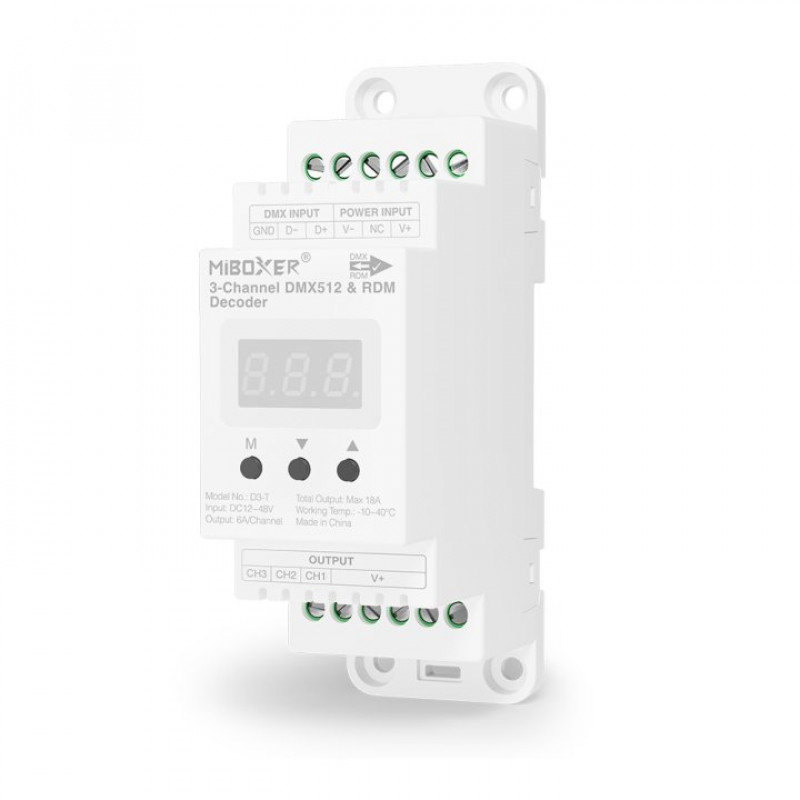

A digital display and three buttons allow the starting DMX address to be set on the device. The labelled screw terminals provide connections for the DMX signal, DC power and LED outputs. This model uses a wired DMX control connection; its three outputs correspond to the RGB channels of a compatible strip.

The white enclosure mounts on a standard 35 mm DIN rail. Its IP20 rating is intended for dry indoor installations, with an operating temperature of −10 to +40 °C. Provide suitable ventilation and access to the terminals. The controller does not replace a DC power supply or DMX control desk; select these separately for the installation. Check the labels and wiring diagram before connection.

Specifications
Brand
MiBoxer
Category
LED controller
DC input voltage
12–48 V DC
EAN
4038816258724
International Protection (IP) code
IP20
Model
D3-T
MPN
D3-T
Operating temperature (T-T)
−10 to +40 °C
Output current
6 A per channel; 18 A total
Product colour
White
Product type
LED controller
Quantity per pack
1
Supported protocols
DMX512 / RDM
