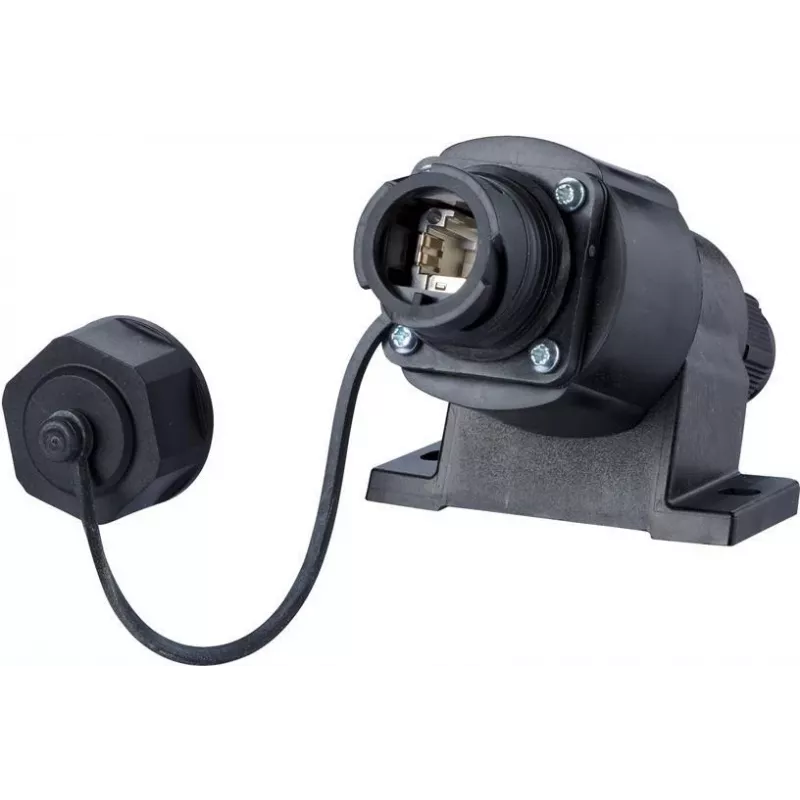

METZ E-DAT Industry IP67 V1 AP + RJ45 Field Jack Insert Cat.6A Class EA, T568B

The METZ E-DAT Industry IP67 V1 AP + RJ45 field jack insert is a robust, fully shielded RJ45 jack designed for industrial Ethernet applications requiring high reliability and environmental protection. This Cat.6A (Class EA) component supports frequencies up to 500 MHz and is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards. It features a tool-less IDC termination for solid and stranded cables, making installation quick and easy. The die-cast zinc housing with nickel plating ensures durability, while the gold-plated contacts guarantee reliable connections over at least 750 mating cycles. With IP67 protection when mated with appropriate housings, this insert is ideal for harsh environments. It supports PoE+ and PoE++ (IEEE 802.3at/bt Type 3 & 4) for power over Ethernet applications.

Advantages

Tool-less termination reduces installation time and effort. Fully shielded design minimizes electromagnetic interference. IP67 rating ensures dust and water resistance for outdoor or industrial use. Wide operating temperature range (-40°C to +70°C) suits extreme conditions. Compatible with E-DAT Industry V1 AP housings for flexible mounting.

Suitable for

• Industrial Ethernet networks
• Outdoor and harsh environment installations
• Data centers requiring high-performance cabling
• PoE/PoE+ devices such as cameras, access points, and sensors

Key specifications

• Connector Type: RJ45 Jack
• Performance Category: Cat.6A (Class EA)
• Frequency Range: Up to 500 MHz
• Wiring Standard: T568B
• Shielding: Fully Shielded (STP)
• IP Rating: IP67 (when mated)
• Termination Type: IDC, Tool-less
• Compatible Wire Gauge (Solid): AWG 24/1 - 22/1
• Compatible Wire Gauge (Stranded): AWG 27/7 - 22/7
• Max. Cable Outer Diameter: 8.5 mm
• Housing Material: Die-cast zinc (nickel-plated)
• Contact Plating: Gold over Nickel
• Mating Cycles: ≥ 750
• Operating Temperature: -40°C to +70°C
• PoE Support: PoE+, PoE++ (IEEE 802.3at/bt Type 3 & 4)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, IEC 60603-7-51
• Mounting Compatibility: E-DAT Industry V1 AP Housings
• Number of Contacts: 8P8C

Recommendations

For optimal performance, use with METZ E-DAT Industry IP67 V1 AP housings and Cat.6A shielded cables. Ensure proper mating to achieve IP67 protection. Suitable for industrial environments where reliability and durability are critical.
